Klipsch ca 8 tqxd brochure
This is the 4 pages manual for klipsch ca 8 tqxd brochure.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from klipsch ca 8 tqxd brochure (Ocr-read)
Page 1

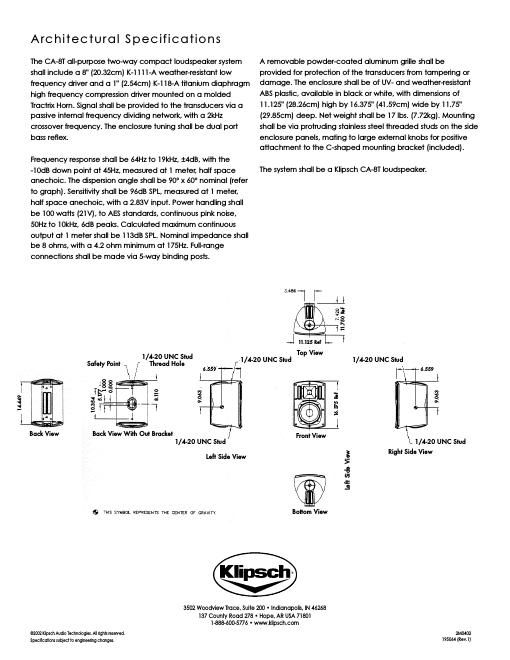

The Klipsch CA-8T compact full range system is perfect for higher power professional applications where flexible mounting and extended range are required. Equally at home indoors or out, in foreground or background, higher SPL applications, the CA-8Ts appearance and Klipsch fidelity fit into residential, business and recreational environments. The UV- and weather-resistant ABS enclosure includes an internal multi-tap transformer with switchable direct 8 ohm bypass, simplifying hookup to any type of sound system. The C-bracket assembly attaches to the enclosures integral stainless steel threaded studs with oversized knobs, ensuring a positive position-lock and rapid "no-pain" installa- tion. External attachment to the built-in security retainer provides an extra measure of safety, protecting against unexpected damage or removal. The CA-8T includes a high-power 8" extended range low-frequency driver and a 1" titanium diaphragm compres- sion driver on a molded Tractrix Horn. The 90º x 60ºhorn and driver assembly allows repositioning by 90º for selectable pattern control. The compact dual port bass reflex loud- speaker system can handle 100 watts continuous power for an AES sensitivity of 96dB and a maximum output of 113dB SPL. Paintable and available in black or white finishes, the ABS enclosure features corrosion- and rust-resistant stainless steel hardware and a removable aluminum powder-coated grille, ensuring mainte- nance-free service in any environment or application. Whether indoors or out, the Klipsch CA-8T is the good looking, great sounding full-range solution for installed high-fidelity sound. .Compact UV - and weather-resistant ABS enclosure .Adjustable pattern 90º x 60º Tractrix ® Horn .Internal 60W multi-tap transformer with direct 8 ohm bypass .Continuous high power handling of 100 watts .White or black enclosure paintable to match decor FREQUENCY RESPONSE 1 POWER HANDLING 2 MAX CONTINUOUS OUTPUT 3 SENSITIVITY (2.83 V/1M) 4 TRANSFER TAPS HORIZONTAL COVERAGE VERTICAL COVERAGE DIRECTIVITY NOMINAL IMPEDANCE CROSSOVER FREQUENCY COMPONENTS INPUT CONNECTORS ENCLOSURE MATERIAL HEIGHT WIDTH DEPTH WEIGHT SHIPPING WEIGHT FINISHES ACCESSORIES 64Hz -19kHz±4dB 100W (21V) 113dB 96dB 70V: 60W, 30W, 15W, 7.5W 100V: 60W, 30W, 15W Through Position: 8 ohms 60º ±40 2.5kHz-20kHz 80º ±40 1.3kHz-20kHz 8±2dB 1.3kHz-20kHz 8 ohms nominal (4.2 min @ 175Hz) 2kHz One K-1111-A 8" low frequency driver One K-118-A 1" titanium diaphragm compression driver 5-way binding posts All-weather ABS plastic 11.125" (28.26cm) 16.375" (41.59cm) 11.75" (29.85cm) 17 lbs. (7.72kg) 44 lbs. (19.98kg) White or Black C-Bracket (included), CA Security Kit 13M, Half-space anechoic2AES Standard, continuous pink noise 50Hz-10kHz, 6dB peaks3Calculated at 1M at power handling power input4SPL at 1M, half-space anechoic with 2.83V input CA-8T All-purpose 8" Two-way Compact Loudspeaker System SPECIFICATIONS
Page 2
Horizontal Off-Axis Transfer Function Horizontal Coverage (-6dB) Vertical Coverage (-6dB)Impedance Directivity Index Frequency Response Vertical Off-Axis Transfer Function UP Vertical Off-Axis Function DOWN CA-8T All-purpose Loud speaker
