Page 1
Designed for high fidelity distributed sound system installations, the CA-6T compact full range loudspeaker is perfect for foreground or background applications in restaurants, outdoor recreation environments, boardrooms or A/V systems. The rugged ABS enclo- sure is weather-resistant and UV- resistant for a long service life. An internal multi-tap transformer includes direct bypass switching for distributed or direct 8 ohm operation. The included C-bracket and integral threaded studs with oversized knobs allow easy undereave, wall or ceiling mounting for rapid center-of-gravity, balanced installation. A security retainer provides for secondary attachment to an external safety point, guarding against tampering or drop damage. Connections are provided via 5-way binding posts. The CA-6T components include a high power 6.5" extended range woofer and a 1" highly accurate titanium diaphragm compression driver mounted on a square-mouth Tractrix Horn. The 90º x 60º horn/driver assembly can be repositioned by 90º to provide flexible horizontal and vertical pattern adjustments. Providing great sound for its size, the compact CA-6T full-range loudspeaker system is capable of 85 watt contin- uous power handling, with an AES rated sensitivity of 95dB and a maximum output level of 111dB SPL. The removable powder-coated aluminum grille and stainless steel hard- ware offer years of maintenance-free protection no matter the climate or environment. The available black or white enclosure finish can be painted to match surrounding decor. Inside and out, the Klipsch CA-6T provides superior audio performance in a durable and flexible commercial package. CA-6T . Multi-tap internal 60W transformer for distributed line systems . 90º x 60º Tractrix ®Horn adjustable for pattern control . High 95dB sensitivity, 111dB maximum output at 1 meter .Durable stainless hardware and powder-coated aluminum grille .Simplified C-bracket attachment for fast field installation FREQUENCY RESPONSE 1 POWER HANDLING 2 MAX CONTINUOUS OUTPUT 3 SENSITIVITY 4 TRANSFORMER TAPS HORIZONTAL COVERAGE VERTICAL COVERAGE DIRECTIVITY INDEX NOMINAL IMPEDANCE CROSSOVER FREQUENCY COMPONENTS INPUT CONNECTORS ENCLOSURE MATERIAL HEIGHT WIDTH DEPTH WEIGHT SHIPPING WEIGHT FINISHES ACCESSORIES 69Hz-20kHz±4dB 85W (19V) 111dB 95dB 70V: 60W, 30W, 15W, 7.5W 100V: 60W, 30W, 15W Through Position: 8 ohms 60º ±40 2.3kHz-20kHz 90º ±50 1.3kHz-20kHz 8±3dB 800Hz-20kHz 8 ohms nominal (4.1 min @ 180Hz) 2kHz One K-1110-A 6.5" woofer One K-118-A 1" titanium diaphragm compression driver 5-way binding posts All weather ABS plastic 9.5" (24.13cm) 15.125" (38.42cm) 10.375" (26.35cm) 15 lbs. (6.81kg) 34 lbs. (15.44kg) White or Black C-Bracket (included), CA Security Kit 13M, Half-space anechoic 2 AES Standard, continuous pink noise 50Hz-10kHz, 6dB peaks3 Calculated at 1M at power handling power input4 SPL at 1M, half-space anechoic with 2.83V input SPECIFICATIONS All-purpose 6.5" Two-way Compact Loudspeaker System

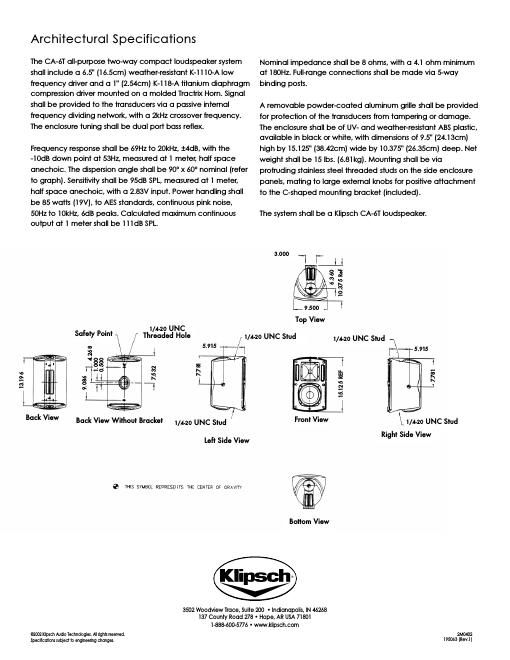

Page 2
Horizontal Off-Axis Transfer Function Horizontal Coverage (-6dB) Vertical Coverage (-6dB)Impedance Directivity Index Frequency Response Vertical Off-Axis Transfer Function UP Vertical Off-Axis Function DOWN CA-6T All-purpose Loud speaker
