Page 1
The little speaker with the big sound! Ideal for applications where tight space, under- eave, wall or ceiling mounting is required. The CA-5T full range loudspeaker includes everything you need for fast and easy installation. The durable UV-resistant all- weather enclosure includes an internal multi-tap transformer to simplify hookup to any system. The C-bracket assembly attaches to the enclosures integral center-of-gravity balanced, threaded studs and oversized knobs, ensuring a positive position-lock. A security retainer allows for wiring to a second mounting point, guarding against dislodging or tampering. Designed for distributed audio applica- tions, the compact high-fidelity system is equally at home in outdoor or indoor background music and paging applica- tions, in both commercial and recre- ational environments. For application flexibility, the internal multi-tap transformer includes an easily adjusted bypass switch, allowing direct full-range connection for 8 ohm operation. Enclosure signal connec- tions are accomplished through a 5-way binding post. For efficiency and reliability, the CA-5T consists of a high power 5.25" weather- resistant woofer and a 1" polymer- diaphragm compression driver on a molded Tractrix Horn. A unique feature of the 90º x 60º horn assembly is its ability to be repositioned 90º, providing selectable pattern control. Power handling and performance effi- ciency are superb at 75 watts continuous and 94dB sensitivity, with a maximum output of 109dB. The paintable ABS enclosure is available in a black or white finish, and features all stainless steel hardware and a removable aluminum powder coated grille for years of maintenance-free duty, no matter the climate or environment. FREQUENCY RESPONSE 1 POWER HANDLING 2 MAX CONTINUOUS OUTPUT 3 SENSITIVITY 4 TRANSFORMER TAPS HORIZONTAL COVERAGE VERTICAL COVERAGE DIRECTIVITY NOMINAL IMPEDANCE CROSSOVER FREQUENCY COMPONENTS INPUT CONNECTORS ENCLOSURE MATERIAL HEIGHT WIDTH DEPTH NET WEIGHT SHIPPING WEIGHT FINISHES ACCESSORIES 70Hz-20kHz±4dB 75W (17V) 109dB 94dB 70V: 30W, 15W, 7.5W, 3.75W 100V: 30W, 15W, 7.5W Through Position: 8 ohms 60º ±40 3kHz-20kHz 80º ±40 1.6kHz-20kHz 8±3dB 900kHz-20kHz 8 ohms nominal (3.8 min @ 260Hz) 2.7kHz One K-1109-A 5.25" woofer One K-117-A 1" polymer diaphragm compression driver 5-way binding posts All-weather ABS plastic 8.625" (21.9cm) 12" (30.48cm) 8.875" (22.54cm) 10 lbs. (4.54kg) 24 lbs. (10.89kg) White or Black C-Bracket (included), CA Security Kit 13M, Half-space anechoic2AES Standard, continuous pink noise 50Hz-10kHz, 6dB peaks3Calculated at 1M at power handling power input4SPL at 1M, half-space anechoic with 2.83V input .Compact UV- and weather-resistant full range design .Adjustable 90º x 60º Tractrix ®Horn for flexible pattern control .Internal 30W multi-tap transformer with 8 ohm bypass .Stainless steel hardware and aluminum powder-coated grille .White or black enclosure paintable to match decor SPECIFICATIONS CA-5T All-purpose 5.25" Two-way Compact Loudspeaker System

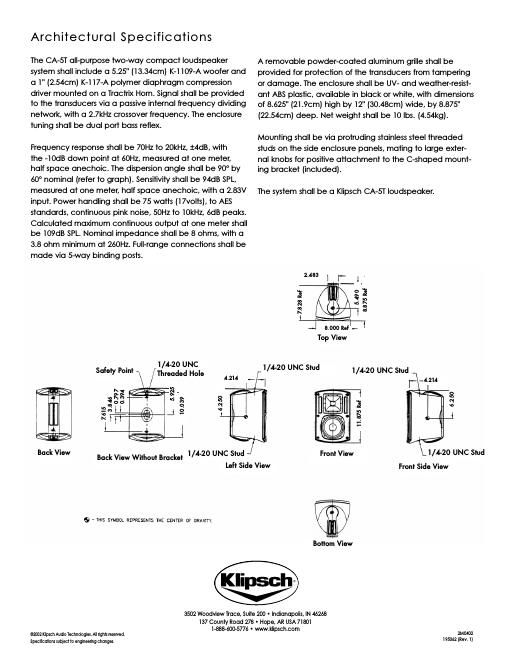

Page 2
Horizontal Off-Axis Transfer Function Horizontal Coverage (-6dB) Vertical Coverage (-6dB)Impedance Directivity Index Frequency Response Vertical Off-Axis Transfer Function UP Vertical Off-Axis Function DOWN All-purpose Loud speaker CA-5T
