Klipsch awr 650 sm brochure

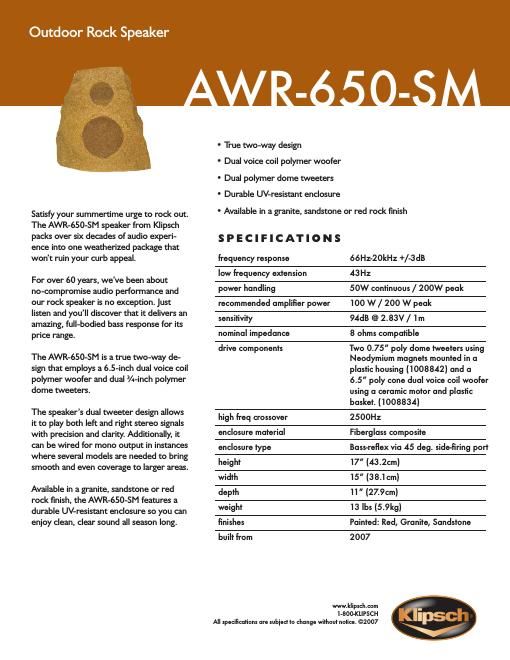

Page 1

Outdoor Rock Speaker

Satisfy your summertime urge to rock out.
The AWR-650-SM speaker from Klipsch
packs over six decades of audio experi-
ence into one weatherized package that
wont ruin your curb appeal.

For over 60 years, weve been about
no-compromise audio performance and
our rock speaker is no exception. just
listen and youll discover that it delivers an
amazing, full-bodied bass response for its
price range.

The AWR-650-SM is a true two-way de-
sign that employs a 6.5-inch dual voice coil
polymer woofer and dual 3/4-inch polymer
dome tweeters.

The speakers dual tweeter design allows
it to play both left and right stereo signals
with precision and clarity. Additionally, it
can be wired for mono output in instances
where several models are needed to bring
smooth and even coverage to larger areas.

Available in a granite, sandstone or red
rock finish, the AWR-650-SM features a
durable UV-resistant enclosure so you can
enjoy clean, clear sound all season long.

' True two-way design

' Dual voice coil polymer woofer

- Dual polymer dome tweeters

' Durable UV-resistant enclosure

' Available in a granite, sandstone or red rock finish

SPECIFICATIONS

frequency response 66Hz-20kHz +/-3dB

low frequency extension 43H:

power handling 50W continuous / 200W peak
recommended amplifier power 100 W / 200 W peak

sensitivity

94dB @ 2.83V/ lm

nominal impedance

8 ohms compatible

drive components

Two 0.75 poly dome tweeters using
Neodymium magnets mounted in a
plastic housing (1008842) and a
6.5 poly cone dual voice coil woofer
using a ceramic motor and plastic

basket. (1008834)

high freq crossover

2500Hz

enclosure material

Fiberglass composite

enclosure type

Bassreflex via 45 deg. side-firing port

height 17 (43.2cm)

width 15 (38.1cm)

depth ll" (27.9cm)

weight 13 lbs (5.9kg)

finishes Painted: Red, Granite, Sandstone
built from 2007

All specifications are subject to change without notice. ©2007

www.| l-BOO-KLIPSCH
