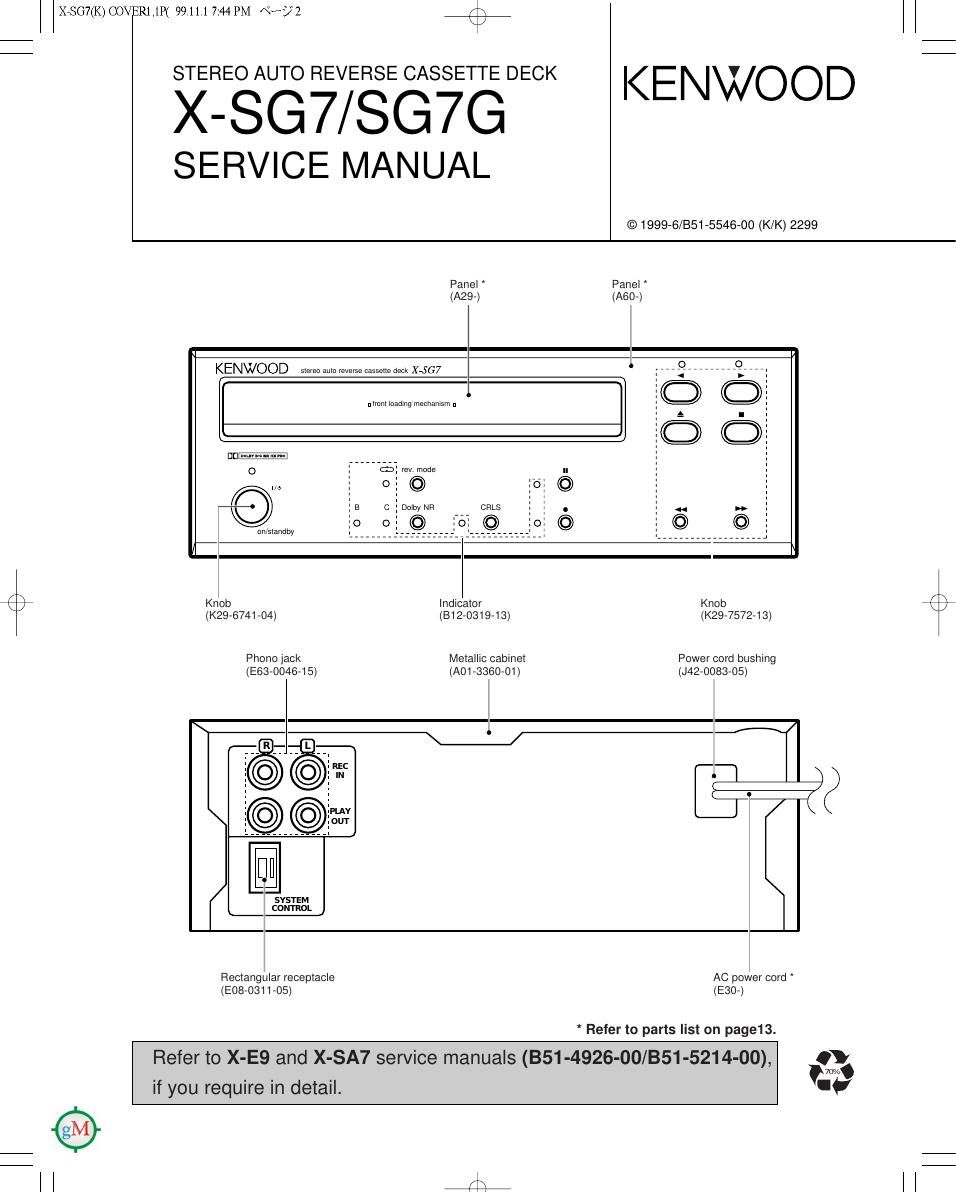

XSG7(K) COVER1,1P( 99.111 7:44 PM \°-/ 3

X-SG7/SG7G

Audio cord (2)
(ESQ-061505)

System contro
(E30-2628-05)

+ Power does not turn on and tray does not come out.

1 cord (1)

we

ACCESSORIES

Operation to reset

The microcomputer may fall into malfunction
(impossibility to operate, erroneous display,
etc.) when the power cord is unplugged while
power is ON or due to an external factor. In this
case, execute the following procedure to reset
the microcomputer and return it to normal con-
dition.

Unplug the power cord from the power out-
let and, while holding the stop key de-
pressed, plug the power cord again.

oPlease note that resetting the microcomputer
clears the contents stored in it returns it to con-
dition when it left the factory.

DISASSEMBLY FOR REPAIR

1. Turn the pully in the direction of the arrow in the draw-
ing with a finger (0).
2. If the tray comes out to the front side, pull out the tray
by hand forward the front (9).

CIRCUIT DESCRIPTION

* Correction of circuit description

LED indication state.

7777771771; L LED POWER DOLBY B 00th c RVS
ITEM ~ MODE

UNDER ADJUSTMENT . O O 0

PB CALIB L © . © ©

ERR Fl 0 e C o

PB LEVEL L Q . © .

ERR Fl o o o o

REC CALIB L © . O .

ERR Fl 0 o o o

REC LEBEL L © © © .

ERR Fl © e o o

BIAS DAC L O O © .

ERR Fl o o o to

PE ALL OK 0 O O .

ALL OK . O O O

O : LIGHT ON C : LIGHT OFF © : Flickering

#
