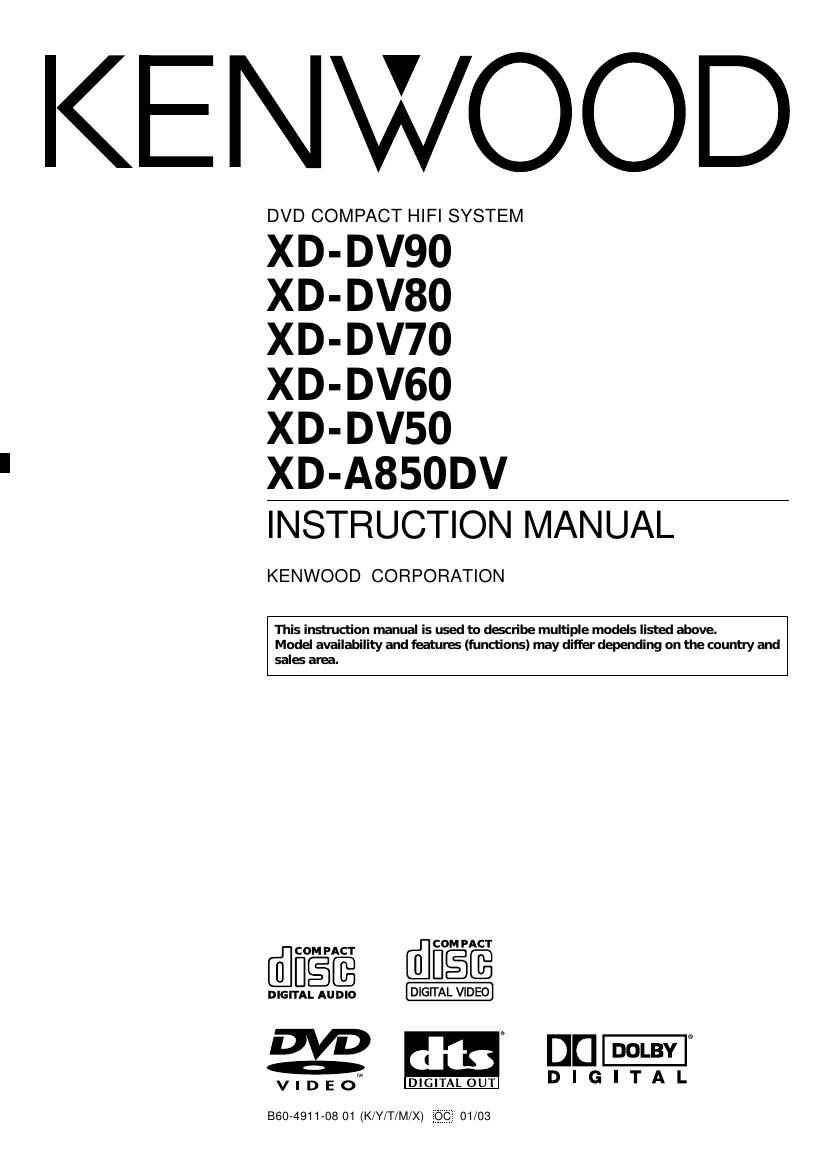

Kenwood XDDV 50 Owners Manual

Page 2

Introduc tion

Before applying power

Units are dsigned for operation as follows.
U.5A. and Canada
Europe and U.K.

For the United Kingdom

. AC 120 Vonly
.AC 230 Vonly

XDVDV Series (EN/K, M IX,

& Caution : Read this section carefully to ensure safe operation.

Australia .................................................... A C 240 V only
*Other countries .. A C 110-120 / 220-240 V switchable
*For other countries

Factory fitted moulded mains plug

1. The mains plug contains a fuse. For replacement, use only
a 3-Amp ASTA»approved (BS l362)fuse.

2. The fuse cover must be refitted when replacing the fuse in

AC voltage selection

The AC voltage selector switch on the rear panel is set to the
voltage that prevails in the area to which the unit is shipped.
Before connecting the power cord to your AC outlet, make
sure that the setting position of these switches matches your

the moulded plug. line voltage. If not, it must be set to your voltage in accordance

3. Do not cut off the mains plug from this equipment. If the With the following direction.
plug fitted is not suitable forthe power points in your home

or the cable is too short to reach. AC voltage selector switcha

A power point, then obtain an appropriate safety approved

extension lead or adapter, or consult your dealer. If none- Ac 1m. Ac zzur
theless the mains plug is cut off, remove the fuse and HOW-I EMT
dispose of the plug immediately, to avoid a possible shock m
hazard by inadvertent.
Connection to the mains supply.

IM PORTANT :
The wires in the mains lead are coloured in accordance
with the following code:

Move switch lever to match your line voltage with a small
screwdriver or other pointed tool.

Note:
Blue : Neutral
Brown : Live Ourwanantydoes notcoverdamage caused byexcessive line
Do not connect those leads to the earth terminal of athree- voltage due to improper setting 0f the AC voltage SGIECtOI'
pin plug. switch.
safety preca uuons & Caution : Read this section carefully to ensure safe operation.

WARNING :TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO REDUCE THE RISKOF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE, REFER SER-
VICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

alsv. or stzcmc 91ch
do nor am.

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRI-
ANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED "DAN-
GEROUS VOLTAGE" WTTHIN THE PRODUCTS ENCLOSURE THAT MAY BE OF SUFFICIENT
MAGNTTUDE TO CONSTITUTE A RISKOF ELECTRIC SHOCKTO PERSONS.

A

THE EXCLAMATION POINT WITHIN AN EOUILATERAL TRIANGLE IS INTENDED TO ALERT
THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SER-
VICING) INSTRUCTIONS IN THE LTTERATURE ACCOMPANYING THE APPLIANCE.

A

The marking of products using lasers
(Except for some areas)

CLASS 1
LASER PRODUCT
The marking is located on the rear panel and says that
the component uses laser beams that have been clas-
sified as Class 1. It means that the unit is utilizing laser

beams that are of a weaker class. There is no danger of
hazardous radiation outside the unit.

Page 6

13.Lightning - Foradded protection forthis appliance during

a lightning stomI, orwhen it is left unattended and unused
for long periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will prevent
damage to the appliance due to lightning and power-line
surges.

14.Abnormal smell - If an abnormal smell or smoke is

detected, immediatelyturn the powerOFF and unplug
the appliancefromthewall outlet. Contact your dealer or
nearest service center.

15.Damage requiring service - The appliance should

be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been
damaged.

B. Objects have fallen, or liquid has been spilled into
the appliance.

C. The appliance has been exposed to rain orwater.
D. The appliance does not appear to operate normally
by following the instruction manual. Adjust only those
controls that are covered by the instruction manual as an
improperadjustmentof othercontrols may result in damage
and will often require extensive work by a qualified
technician to restore the appliance to ii: normal operation.
E. The appliance has been dropped, orthe enclosure
damaged.

F. The appliance exhibits a marked change in performance.

16.5ervicing - The user should not attempt to service

the appliance beyond that described in the instruction
manual. All other servicing should be referred to
qualified service personnel.

17.0utdoor antenna grounding - If an outside antenna

is connected to the appliance, be sure the antenna
system is grounded so as to provide some protection
against voltage surges and built up static charges.
Article 810 of the National Electrical Code ANSI/
NFPA 70, provides information with respect to proper
grounding of the mast and supporting structure.
grounding ofthe lead-in wire to an antenna discharge
unit, size of grounding conductors, location of antenna
discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode. See
Figure.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL
ELECTRICAL CODE

ANTENNA
LEAD IN WIRE

GROUND
CLAMPS

ANTENNA
DISCHARGE UNIT
(NEC SECTION 61020)

\

ELECTRIC
SERVICE
EQUIPMENT

_ GROUNDING CONDUCTORS
(NEC SECTION 510.21)

GROUND CLAMP

POWER SERVICE GRouNoING
ELECTRODE SYSTEM
(NEc ART 250. PART H)

NEC , NATIONAL ELECTRICAL CODE

XDVDV Series (EN/K, M ,T,X,Y)

18. Power lines - An outside antenna system should not be
located in the vicinity of overhead power lines or other
electric light or power circuits, orwhere it can fall into such
power lines orcircuits. When installing an ouiside antenna
system, extreme care should be taken to keep from
touching such power lines or circuits as contact with them
might be fatal.

19.AC outlets - Do not connect other audio equipment
with a power consumption larger than that specified
to the AC outlet on the rear panel. Never connect
other electrical appliances, such as an iron ortoaster,
to it to prevent fire or electric shock.

20.0verloading - Do not overload wall outlets, extension
cords, or integral convenience receptacles as this can
result in a risk of fire or electric shock.

21. Attachment- Do not use attachments not recommended
by the appliance manufacturer as they may cause hazards.

22. Replacementpafls- When replacement parts are required,
be sure the service technician has used replacement parts
specified by the manufacturer or have the same
characteristics as the original parts. Unauthorized
substitutions may result in fire, electric shock, or other
hazards.

73. Safety check- Upon completion of any service or repairs
to this appliance, ask the service technician to perform
safety checks to determine that the appliance is in proper
operating condition.

Notes:

1. Item 3 is not required except for grounded or polarized equipment.

2. Item 17 and 18 are not required except for units provided with
antenna terminals.

3. Item 17 complies with UL in the U.S.A.
