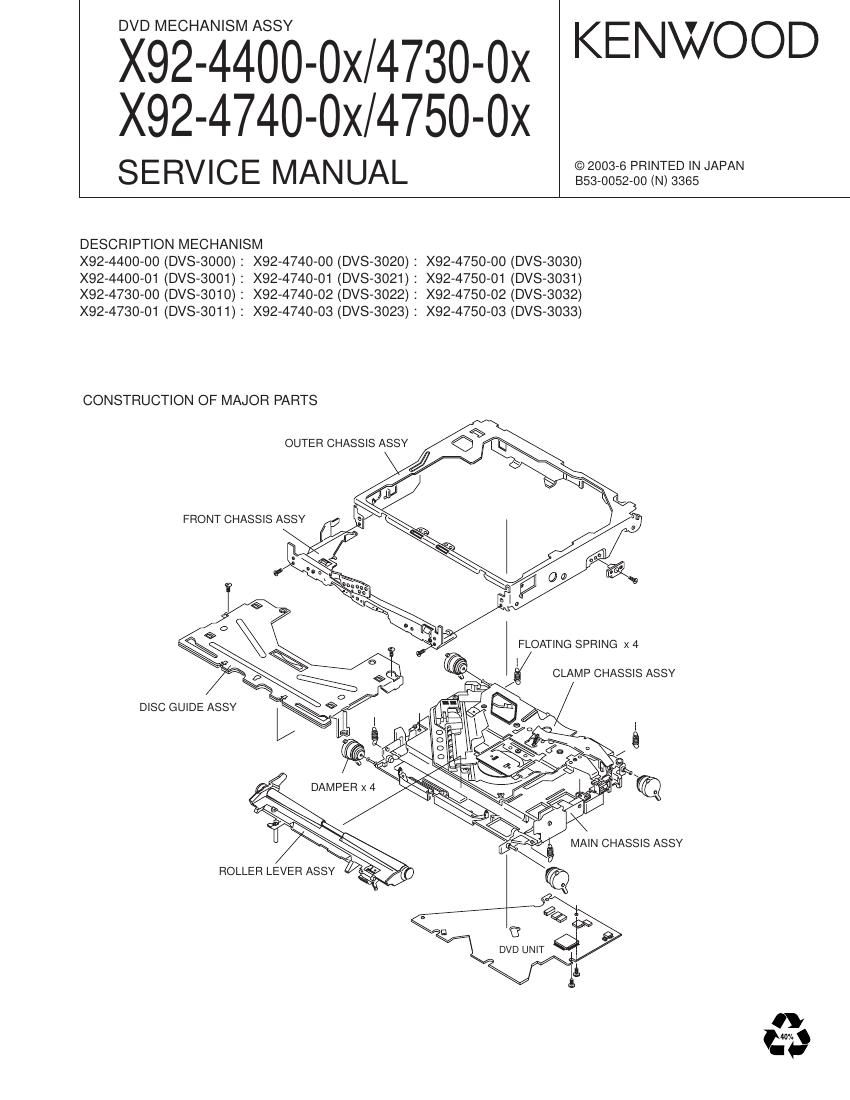

X92-4400-0X/4730-0X
X92-4740-0X/4750-0X
DISASSEMBLY AND ASSEMBLY OF MECHANISM
l Removing the outer chassis assy (4) I Removing the clamp lever assy (21)
1) Removing the front chassis assy (6 or 7: 2 screws). 1) The clamp lever assy (21) is stood and it shifts upward and
2) Removing the stopper (48:1 screw). removes.
3) Removing the floating spring (60: 4 pcs).
4) Push up to fixed boss at the damper (50) used the tip of CLAMP LEVER ASSY (21)
+driver and turns around remove the damper (50: 4 pcs).
\
60
/// OUTER CHASSIS
l Removing the disc guide assy (79)
1) Removing the 3 screws.
2) Take out the disc guide (79) it shifts to the front side and
removes. It warns against damaging the guide of the slider
(17 and 18).
7,,» DISC GUIDE (79)
x S7
