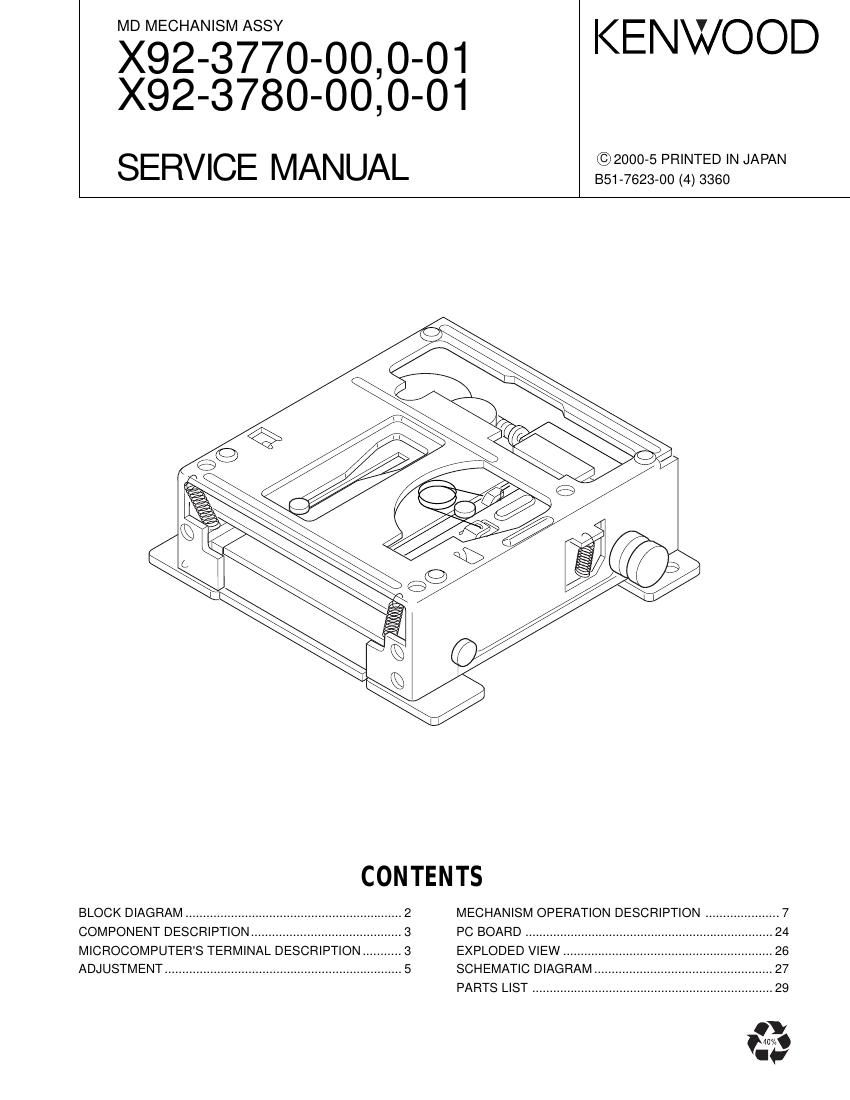

Page 1
§§3A5§A;§0-00,0-01 KENWOOD
X92-3780-O0,0-O1
02000-5 PRINTED IN JAPAN
SERVICE MANUAL 3051-7523-00 (4) 3360
CONTENTS
BLOCK DIAGRAM .............................................................. 2 MECHANISM OPERATION DESCRIPTION ..................... 7
COMPONENT DESCRIPTION ........................................... 3 PC BOARD ....................................................................... 24
MICROCOMPUTER'S TERMINAL DESCRIPTION ........... 3 EXPLODED VIEW ...................... 26
ADJUSTMENT .................................................................... 5 SCHEMATIC DIAGRAM .................... 27
PARTS LIST ....................................... 29
Page 21
X92-3770-O0,0-O1/X92-3780-O0,0-O1
MECHANISM OPERATION DESCRIPTION
® The plate spring on the upper chassis then enters the shutter opening to retain the shutter, and only the dlSC itself
continues to move and opens the shutter.
(The tongue hits the shutter and becomes its stopper, and the shutter is opened.)
Plate spring
K Shutter lock
Shutter opening Locking
5. Ejection Detection Mechanism (X92-3780-XX)
In order to enable reloading of a disc after it has been ejected, It is required to detect the position of the disc in the standby
condition.
The ejected disc position is detected by the "reload detect switch, which Is turned on/off by the DET lever assy.
Standby condition
When the disc is in the standby condition, the detection
sWItch Is turned ON by the disc so reloading is possible.
(Figure A)
When the disc is taken Out, the DET lever assy is separated
from the disc, and the reload detect switch is turned OFF,
thereby detecting the absence of the disc. (Figure B)
DET lever assy Disc / _
<-
K Reloading possible
Force of spring T
\ Reload detect swuch E? Reload detect switch
Q E O N l E O F F
Top View Top view
Figure A Figure B
This mechanism has been provided for use with main units based on the motorized panel system (including the MASK). It
prevents the disc from being caught when the play key or panel close key of the main unit is pressed while the disc is in the
standby condition.
21
