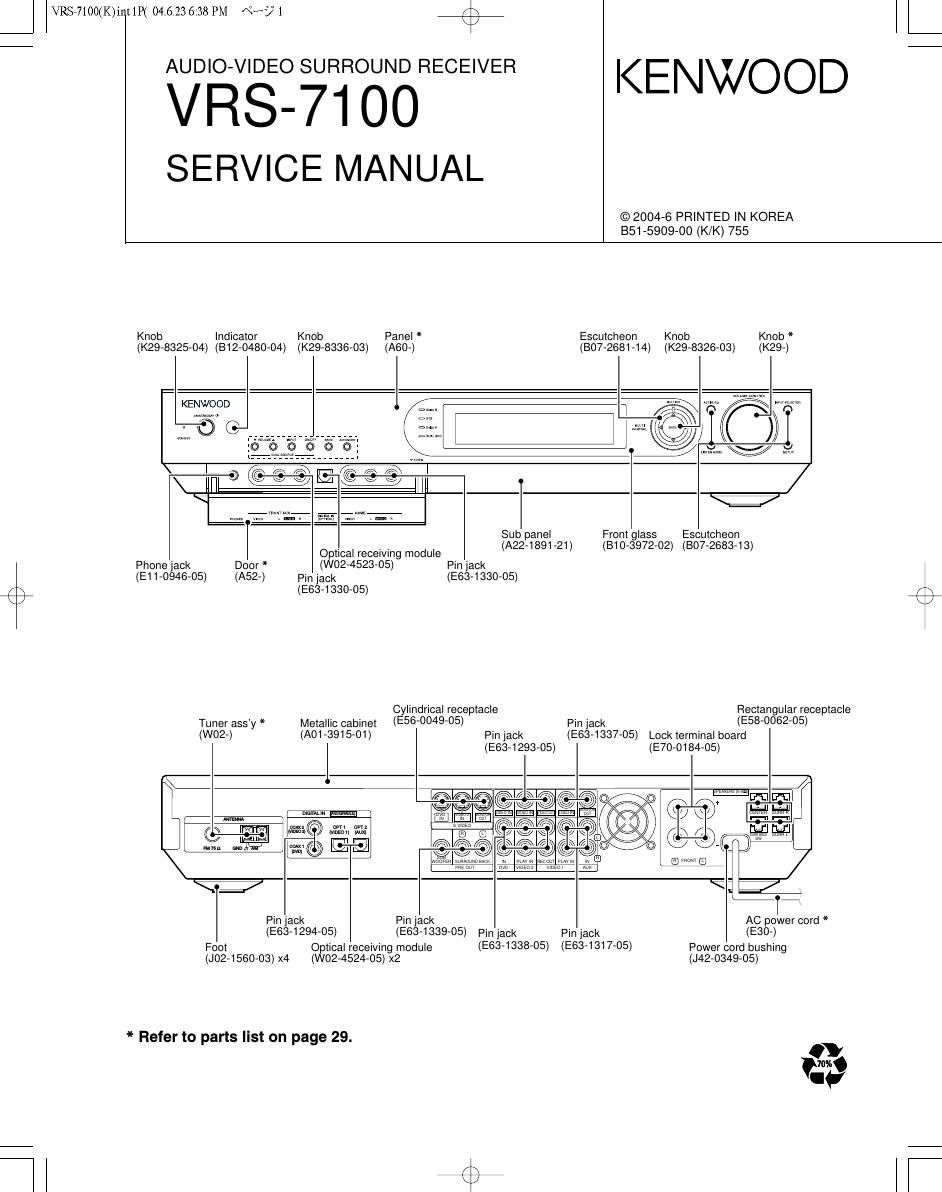

Page 2

VRSJlOO(K)int1P( 04.6.23 6:38 PM Nb) 2 / \

VHS-7100

CONTENTS / ACCESSORIES / CAUTIONS

CONTENTS
CONTENTS / ACCESSORIES / CAUTIONS ............... 2 EXPLODED VIEW ..................................................... 28
PC BOARD ..................... ..3 PARTS LIST .....
SCHEMATIC DIAGRAM. 15 SECIFICATIONS.
ACCESSORIES
f \
Remote control unit (1) AM loop antenna (1) FM indoor antenna (1)
For Europe (T90-0906-05) For Europe and Australia
RC-R0730E(A70-1653-05) (T90-0877-05)
For the U.S.A., Canada and Australia
RC-R0730(A70-1652-05) _
777 . \
00330 Coghcfgooacu Forthe U.S.A. and Canada
3 cc 0 5° 0 a T - 5- 5
Egiigicgfigfiflégf < 9090 o )
Batteries (Re/AA) (2) Speaker cord connectors (1)
For Europe and Australia only
(E69-0013-05)
V r ----------- w
M I
leeee~
l @E: l
\ ____________ J
k 1
CAUTIONS

Resetting the Microcomputer

The microcomputer may malfunction (unit cannot be operated, or
shows an erroneous display) if the power cord is unplugged
while the power is ON, or due to some other external factor. If
this happens, execute the following procedure to reset the micro-
computer and return the unit to its normal operating condition.

Unplug the power cord from the wall outlet, then plug it
back in while holding down the POWER ONISTANDBY d)
(For U.S.A and Canada) or ONISTANDBYOkey (For
Europe and Australia).

' Please note that resetting the microcomputer will clear the
contents of the memory and returns the unit to the state it
was in when it left the factory.Memory back-up function

Memory back-up function

If the power supply to the receiver is shut down for about a day
or more, the following settings will be reset to the initial
conditions. Please be careful.

- Power mode = OFF

0 Volume level = - 66 dB

- Dimmer level = OFF (Brightest condition)
- Broadcast band = FM

0 Frequency setting = 87.50 MHZ

0 Tuning mode = AUTO
