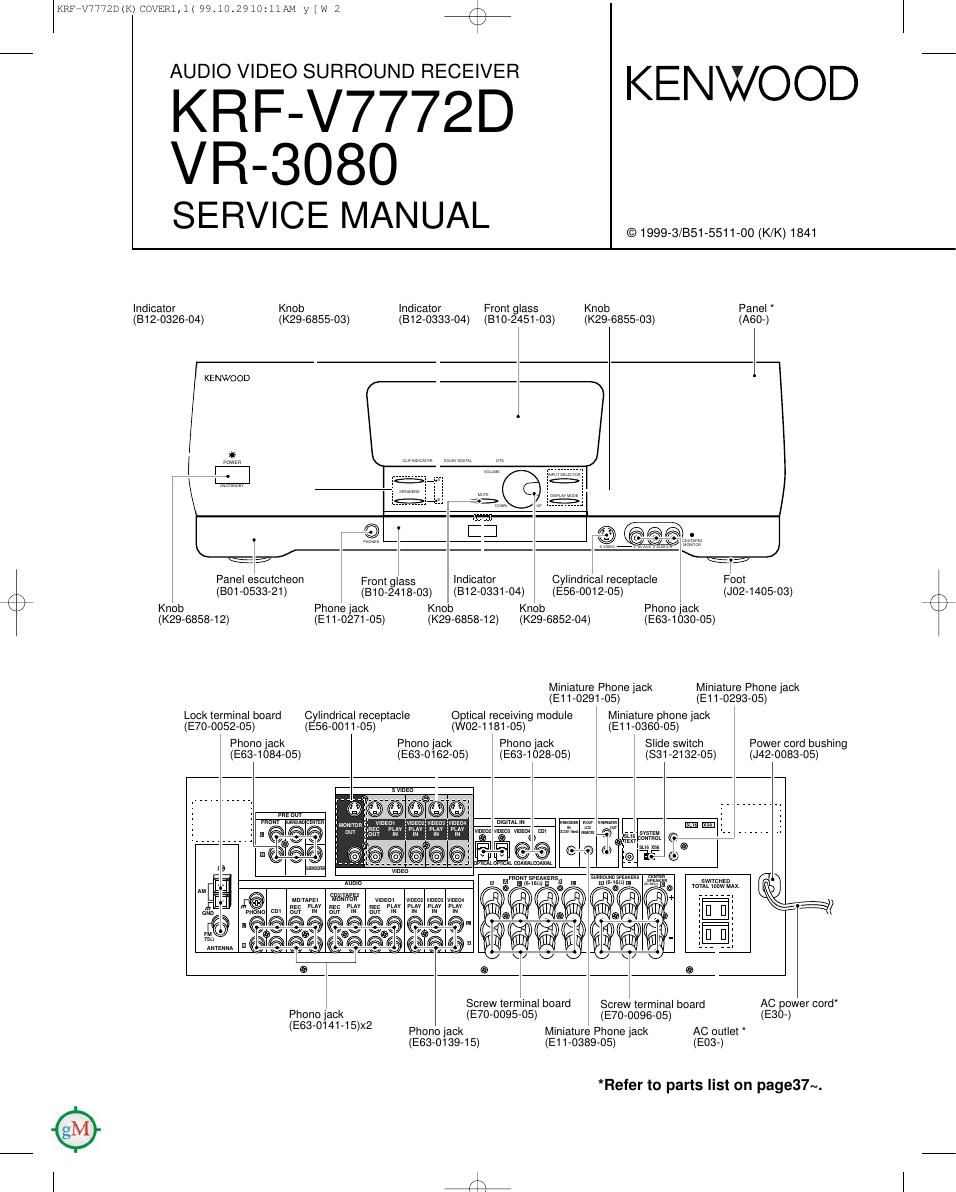

Kenwood VR 3080 Service Manual

Page 2

KRFPV7772D(K)COVER1,1( 99.10.2910111AM y [w 3 /\

KRF-V7772D/VR-3080

CONTENTS / ACCESSORIES

F\
\/

Contents

CONTENTS/ACCESSORIES/CAUTIONS
CONTROLS
DISASSEMBLY
BLOCK DIAGRAM ..............
CIRCUIT DESCRIPTION ..
ADJUSTMENT ........................................................... 1

36301wa

Accessories

WIRING DIAGRAM ......
PC BOARD .....
SCHEMATIC D
EXPLODED VIEW
PARTS LIST ..............
SPECIFICATIONS ..................................................... 49

r

PowerPad Remote Batteries

(A70-1 191415) : RC-R0907

Battery cover(A09-1115-08)

AC plug adapter
(E03-0115-05)
Use to adapt the plug onthe

1/" power cord to the shape of the
wall outlet.

(Present only for regions where
use is necessary.)

RESET

r" AM Loop Antenna (T90-0833-05) 77777777

FM Antenna

T - 41'
AM Antenna Base I 90 08 05)

as

Resetting PowerPad

If you want to reconfigure PowerPad, you can reset

it. You do not need to do this unless you experience

a problem.

1. Open the cover and remove the batteries,

2. Use a pen or other thin-tipped object to press
the blue button in the center of the battery case:

3. Reinstall the batteries and follow the instruc-
tions in this chapter to set up PowerPad again.

Receiver

If none of the above solutions work, reset the micro-

processor:

(For USA and Canada)

1. Turn the receiver off.

2. Unplug the receiver.

3. Plug it back in while pressing and holding the
Power button (you may need someone else to
help you do this)

4. Continue to hold the Power button for more than
1 second.

(For Other Countries)

1. Turn the receiver off. (The Power button is OFF
position.)

2. Press ON/STANDBY button while pressing and
holding the Power button.

3. Continue to hold the Power button for more than
1 second.
