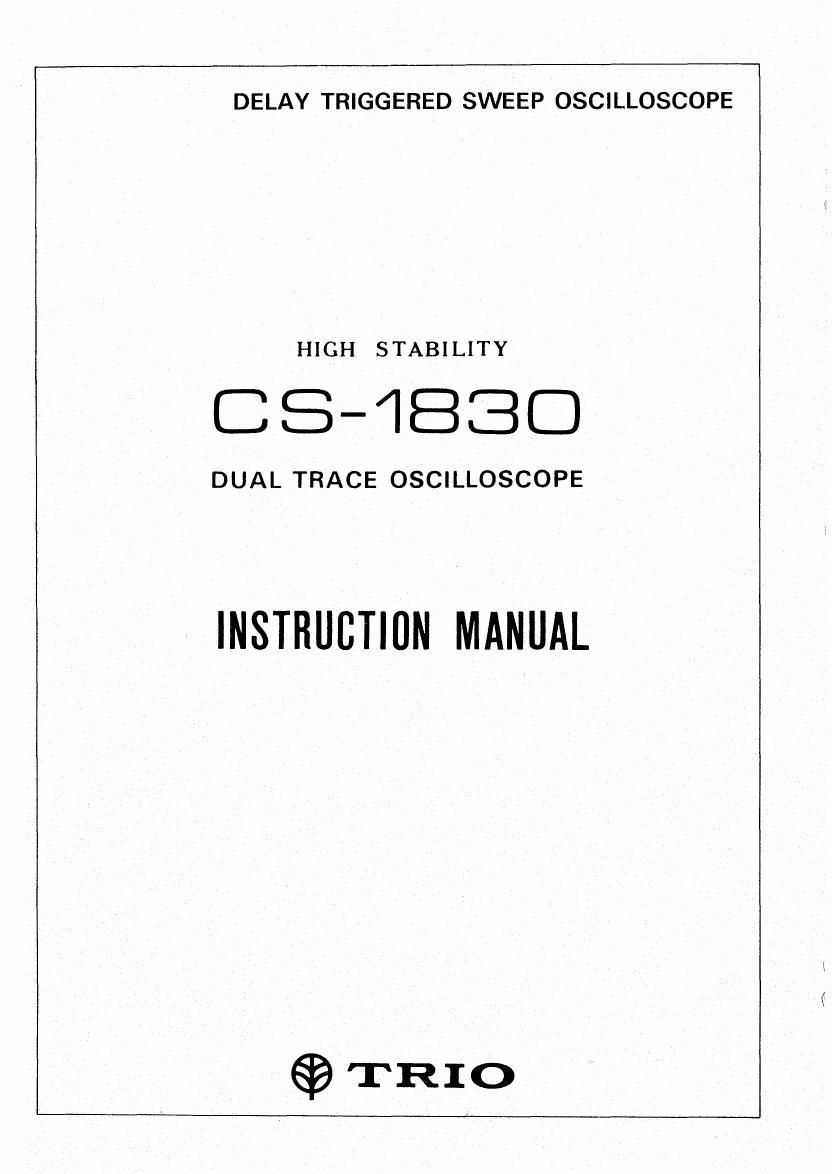

Kenwood Trio CS 1830 Owners Manual

Page 2

FEATURES

The vertical axis provides high sensitivity (5
mV/div) and wide bandwidth 30 MHz (-3 dB),
[2 mV, 20 MHz (*3 Gal with 5 > 2 mV switch]
The CRT has a rectangular with internal grati-
cule, post deflection accelerator with domed
mesh to eliminate paraliex errors.

Delay sweep function that enlarges any given
portion of signal for easy observation.

ALT delay sweep function individually sets for
delay and nondelay observations of CH1 and
CH2 slopes of internal and external sync signals,
Fix sync function for automatic synchronization
oi varies waveforms.

Distortion-tree observation of signals up to 30
MHz,

Selection of 5 sync signals. ALT, CH1. CH2.'
LINE and EXT.

I Sync coupling for AC. LF REJ. HF REJ, and DC
assures stabilized synchronization of various
types oi waveforms.

0 ALT and CHOP switches are provided lot ALT or
CHOP observation throughout all ranges.

0 Auto free-run system enables the trace to be
checked even at no-signal time.

o HOLDOFF function for stabilized synchroniza-
tion of complex signals such as video signals
and logic signals.

0 X»Y changeover system allows CH1 amplifier to
be used as Y axis amplifier and CH2 amplifier as
X axis amplifier.

0 Single sweep Iunctiori for observation of a single
waveform.

0 Spot illumination of CRT permits the waveform
on the scale to be photographed.

o The adoption of His in the logic changeover
circuit premdes for improved reliability.

CONTENTS

FEATURES"...
SPECIFICATIONS
CONTROLS ON PANELS
Front Panel
Side Panel
Rear Panel
OPERATION.
Preliminary Operation
Operating Procedures
Triggering ..
Delay Sweep
Photographing ttttttttttttt

Mesurements of Pulse RisinglFalling) Time.

APPLICATIONS .t
Dual-trace Applications
Single-trace Applications
FM Receiver Adjustments
X-V Applieation.....

Delay Sweep Applications.
PRECAUTIONS....t.u.......,.....
MAINTENANCE AND ADJUSTMENT

Maintenance

Adjustment
SCHEMATIC DIAGRAM
