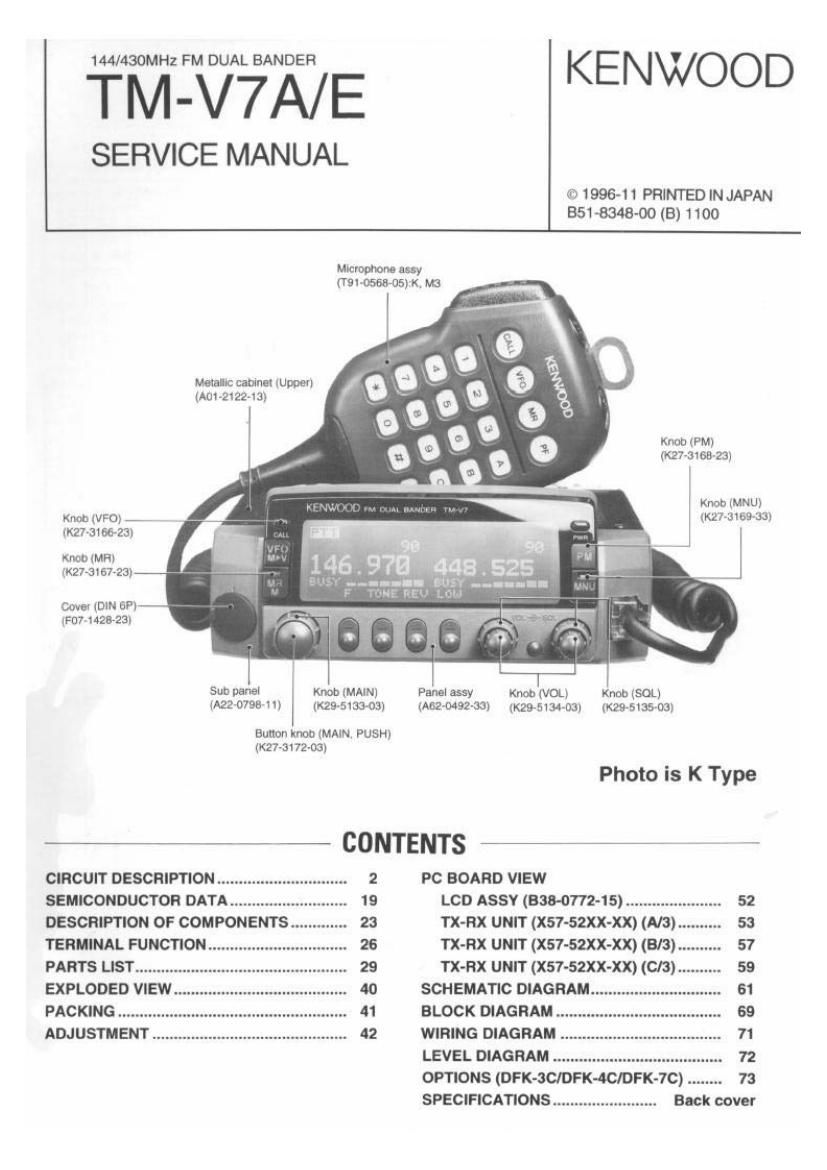

TM-V7A/ E

CIRCUIT DESCRIPTION

Outline

This device is a dual-band 144/430MHz FM car trans-

ceiver planned and designed lor amateur radio communica-
tions and has the following features

1.

The use of a full dot matrix green LCD display and LED
light sources (green LEDs + color conversion filters) has
improved the visual verification, operability, and func-
tionability. This also improves the lifespan compared to
illumination with conventional light bulbs. Display can
be switched between negative and positive

The main unit is 40x140 mm. The detachable operation
panel is 51.5x105 mm.

Maximum 280 channel memory (180 channels in mem-
ory name registration mode)

Top surface and front surface heat dispersion structure
Built-in CTCSS functions with 38 different selectable
tones

New personal computer interface function added to
9600~bps data terminal

Functions can be controlled with received DTMF signals.
Visual scan functions/independently operable 4-channel
PM lunction/key name switch function

List of Destinations

Model Guarantee frequency range (MHZ) Output power (W)
1 44 430 1 44 430
TM-V7A K 144N148 436N450 50 35
M2 430 ~ 440
M3
TM-V7E E 144N146 430N440 50 35
E3
Accessories
Parts name Parts No. O'ty Destination
Warranty card 1 K, E, E3
Instruction manual - - all
DC cord E302111-15 1 all
Fuse (15A) F51-0017-05 1 all
Microphone T91»0896-05 1 M2, E, E3
Microphone (DTMF) T91-0568-05 1 K, M3
Mobile bracket J29-0632-03 1 all
Screw set N99>0331-05 1 all

Units for Each Model and Destination

Model TX-RX UNIT (N3, 8/3, C/3)

LCD ASSY

TM-V7A K X57-5230-11 '(X57-5270-11)

M2 X57-5230-22 '(X57-5270-22)
M3

TM-V7E E X57-5232-71'(X57-5272-71)

E3

BSB-O772-XX

'( ) Singapore made
