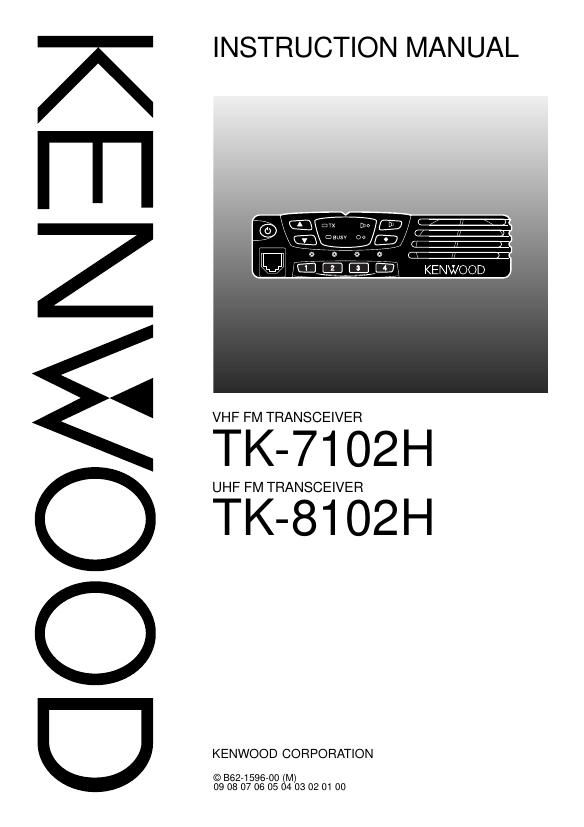

Kenwood TK 7102 H Owners Manual

This is the 15 pages manual for Kenwood TK 7102 H Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 15
Kenwood TK 7102 H Owners Manual

Extracted text from Kenwood TK 7102 H Owners Manual (Ocr-read)


Page 7

INSTALLING THE TRANSCEIVER

For passenger safety, install the transceiver securely, using the supplied mounting bracket, so the
transceiver will not break loose in the event of a collision.

[AW

1 Mark the position of the holes in the dash by using the mounting bracket as a
template. Drill the holes, then attach the mounting bracket using the supplied
self-tapping screws.

- Be sure to mount the transceiver in a location where the controls are within easy
reach of the user and where there is sufficient space at the rear of the transceiver
for cable connections.

2 Connect the antenna and the supplied power cable to the transceiver.

3 Slide the transceiver into the mounting bracket and secure it using the
supplied hex-headed screws.

4 Mount the microphone hanger in a location where it will be within easy reach
of the user.

- The microphone and microphone cable should be mounted in a place where they
will not interfere with the safe operation of the vehicle.

When replacing the fuse in the DC power cable, be sure to replace it with a fuse of the same value.
Never replace a fuse with a fuse that has a higher value.

7! : E CAUTION

Flat washer Spring

\s/washer

Hex-headed $7 Self-tapping screw

screws E

Antenna
connector

, 3
Power input W
connector a


DC power cable

12 V vehicle
Red cable battery
