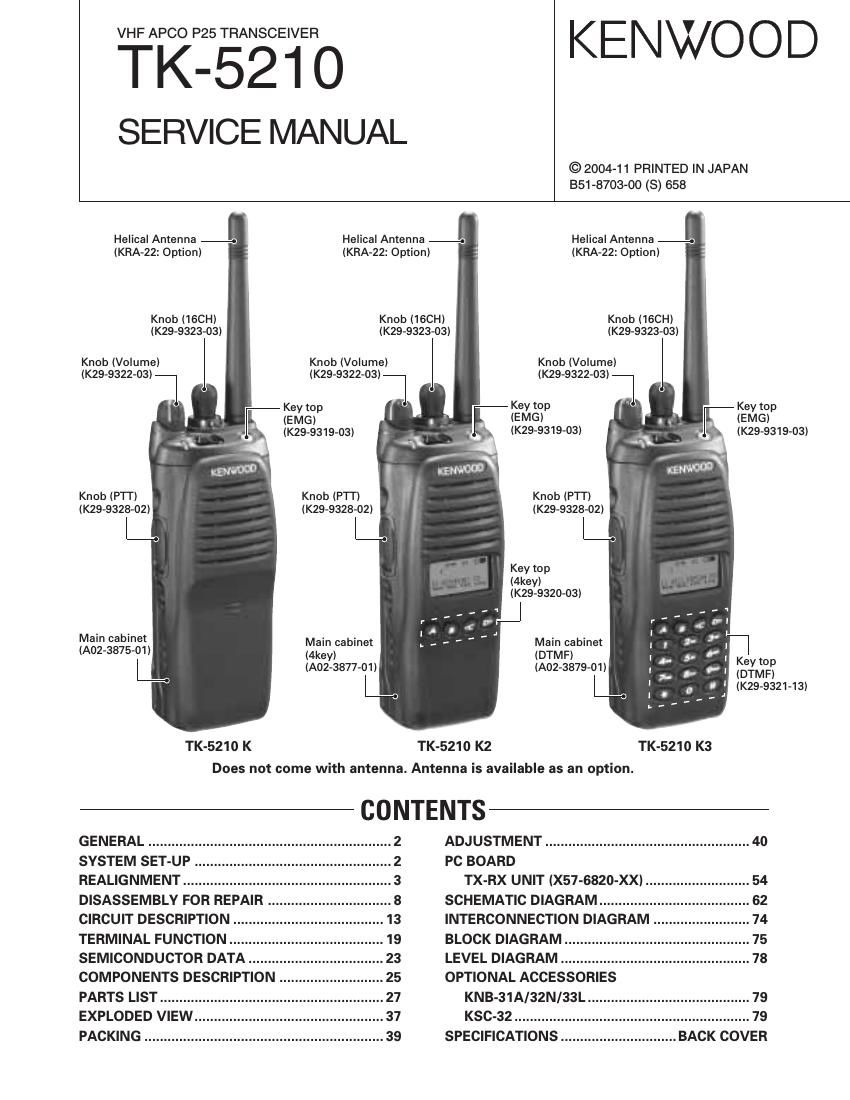

Kenwood TK 5210 Service Manual

Page 2

TK-521O

GENERAL/ SYSTEM SET-UP

INTRODUCTION

SCOPE OF THIS MANUAL

This manual is intended for use by experienced techni»
cians familiar with similar types of commercial grade commu-
nications equipment. it contains all required service informa
tion for the equipment and is current as of the publication
date. Changes which may occur after publication are covered
by either Service Bulletins or Manual Revisions. These are
issued as required.

ORDERING REPLACEMENT PARTS

When ordering replacement parts or equipment informa-
tion, the full part identification number should be included.
This applies to all parts : components, kits, or chassis. If the
part number is not known, include the chassis or kit number
of which it is a part, and a sufficient description of the re
quired component for proper identification.

PERSONNEL SAFETY

The following precautions are recommended for person-

nel safety:

0 DO NOT transmit until all RF connectors are verified see
cure and any open connectors are properly terminated.

0 SHUT OFF and DO NOT operate this equipment near elec-
trical blasting caps or in an explosive atmosphere.

0 This equipment should be serviced by a qualified techni-
cian only.

SERVICE

This transceiver is designed for easy servicing. Refer to
the schematic diagrams, printed circuit board views, and
alignment procedures contained within.

Mode| & Unit X57A68ZXXX » DTM F
Destination lMarket code) 0-10 0711 0-1 2 Frequency range Remarks LCD 4 key keypad
K / 7 e ,
TK»5210 K2 ./ 136~174 MHz Iiijlgjgg'iimjz ./ ,/ ,
K3 / ' ' ./ ./ ./

SYSTEM SET-UP

Merchandise received

C License and frequency allocated by FCC )

Frequency range (MHZ) RF power Type LCD 4-key DTMF keypad

TX/RX 136~174 5W

TK-5120 K No No No

)_.

C Choose the type of transceiver

TX/RX 136~174 5W

TK-5120 K2 Yes Yes No

TX/RX 136~174 5W

TK-5120 K3 Yes Yes Yes

( Transceiver programming I A personal computer (IBM PC or compatible), programming

interface (KPG-36), and programming software (KPG-95D)
are required for programming.
(The frequency, and signaling data are programmed for the

transceiver.)

YES
( Are you using the optional antenna? l-> KRA-22 or KRA-26

Helical antenna

NO

(Option)

YES
( Are you using the speaker microphone? )-~|

( Delivery I

KMC-25 |

NO (Option)
