Extracted text from Kenwood THK 4 Owners Manual (Ocr-read)
Page 1
NOTICE TO THE U SER One or more of the following statements may be applicable for this equipment. FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ¥ Reorient or relocate the receiving antenna. ¥ Increase the separation between the equipment and receiver. ¥ Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. ¥ Consult the dealer for technical assistance.
Page 2

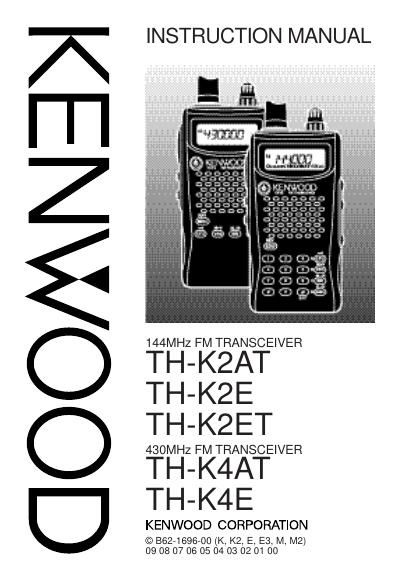

MODELS COVERED BY THIS M ANUAL The models listed below are covered by this manual. TH-K2AT, TH-K2E, TH-K2ET TH-K4AT, TH-K4E MARKET CODES Kn: The Americas En: Europe Mn: General (Where n represents a variation number.) The market code is printed on the bar-code label of the carton box. Refer to the product specifications {pages 122 ~ 133} for information on the available operating frequencies within each model. For accessories supplied with each model, refer to pages vii ~ ix.
Page 109
96 y r e t t a B e p y T t u p t u O r e w o P n o i t c e l e S ) . x o r p p A ( r e w o P t u p t u O 4 1 - T B ) V 0 . 9 (HW5 . 3 MW2 . 1 LW3 . 0 N 3 4 - B P ) V 2 . 7 (HW0 . 5 MW5 . 1 LW5 . 0 N I C D ) V 8 . 3 1 (HW0 . 5 MW5 . 1 LW5 . 0 Note: If the DC IN voltage exceeds 14.5 V DC and Ò Ó (High Power) is selected, the Ò Ó icon blinks and the output power is automatically reduced to Ò Ó (Medium Power). VOX (V OICE -O PERATED TRANSMISSION ) VOX eliminates the necessity of manually switching to the Transmission Mode each time you want to transmit. The transceiver automatically switches to Transmission Mode when the VOX circuitry senses that you have begun speaking into the microphone. When you operate the VOX function, you must use an optional microphone (KHS-21) because the internal speaker and microphone are too near to be used for the VOX function without using this headset. To turn the VOX function ON:
Page 116
103 SMC-34 Speaker Microphone (with PF keys and VOL control) SMC-33 Speaker Microphone (with PF keys)
