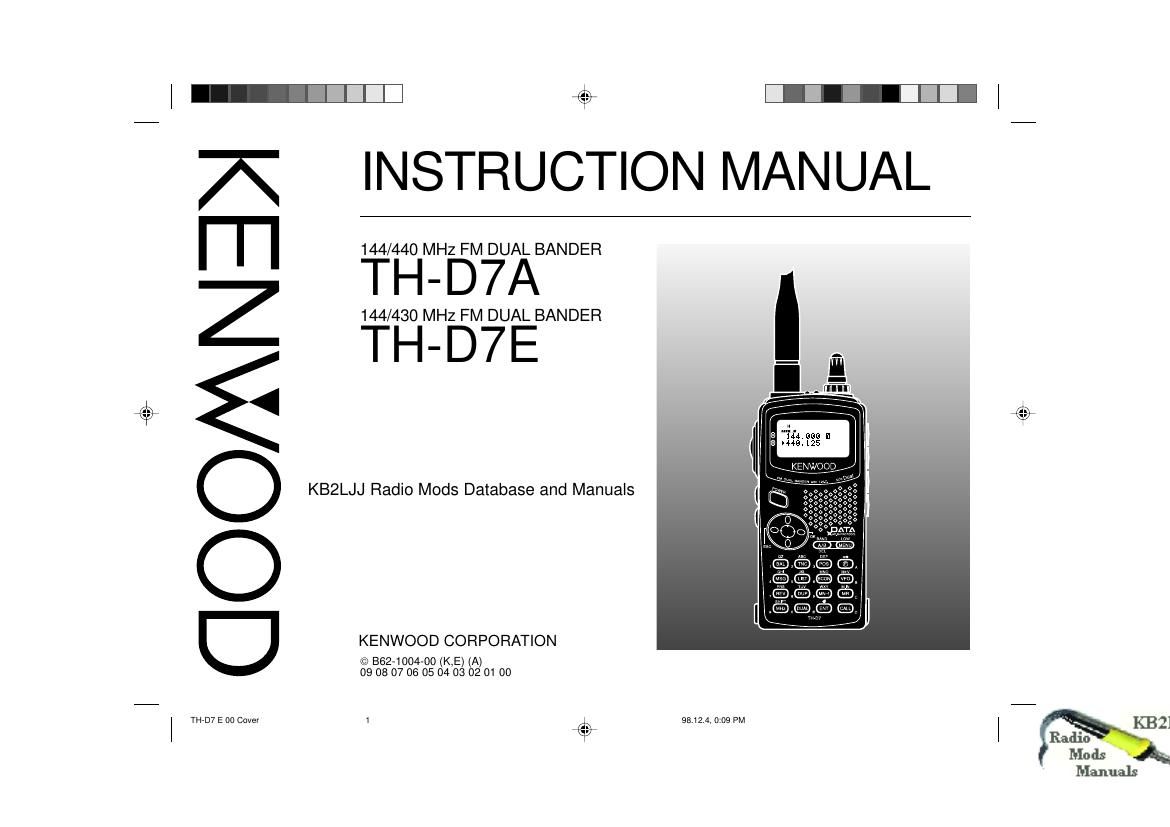

Kenwood THD 7 Owners Manual
This is the 112 pages manual for Kenwood THD 7 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood THD 7 Owners Manual (Ocr-read)
Page 1
THANK YOU! We are grateful you decided to purchase this KENWOOD FM Dual Bander. KENWOOD always provides Amateur Radio products which surprise and excite serious hobbyists. This transceiver is no exception. This time KENWOOD presents a handheld with a built-in TNC to make data communications much more convenient than before. KENWOOD believes that this product will satisfy your requests on both voice and data communications. MODELS COVERED BY THIS MANUAL The models listed below are covered by this manual. TH-D7A:144/440 MHz FM Dual Bander (U.S.A./ Canada) TH-D7E:144/430 MHz FM Dual Bander (Europe) FEATURES This transceiver has the following main features. ¥ Has a built-in TNC which conforms to the AX.25 protocol. With a portable computer, allows you to enjoy Packet operation quite easily. ¥ Includes a program for dealing with data formats supported by Automatic Packet/ Position Reporting System (APRS Ò) . ¥ Is capable of receiving packet data on one band while receiving audio on another band. ¥ Contains a total of 200 memory channels to program frequencies and other various data. Allows each memory channel to be named using up to 8 alphanumeric and special ASCII characters. ¥ If programmed, the built-in Continuous Tone Coded Squelch System (CTCSS) rejects unwanted calls from other stations. ¥ Equipped with an easy-to-read large LCD with alphanumeric display capability. ¥ Employs a 4-way cursor key so that you can program most of the functions with only one hand. ¥ Enhances the functions of an optional VC-H1 Interactive Visual Communicator designed for plug-and-play color slow-scan television (SSTV). ¥ Utilizes Sky Command System 2 designed to control a KENWOOD HF transceiver at a remote location (TH-D7A only). TH-D7 E 00 THANK YOU!98.12.4, 0:09 PM 1
Page 2
i NOTICES TO THE USER One or more of the following statements may be applicable: ATTENTION (U.S.A. Only) Nickel-Cadmium batteries must be replaced or disposed of properly. State laws may vary regarding the handling and disposal of Nickel-Cadmium batteries. Please contact your authorized KENWOOD dealer for more information. FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ¥ Reorient or relocate the receiving antenna. ¥ Increase the separation between the equipment and receiver. ¥ Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. ¥ Consult the dealer for technical assistance. PRECAUTIONS Please observe the following precautions to prevent fire, personal injury, or transceiver damage: ¥ Do not transmit with high output power for extended periods. The transceiver may overheat. ¥ Do not modify this transceiver unless instructed by this manual or by KENWOOD documentation. ¥ When using a regulated power supply, connect the specified DC cable (option) to the DC IN jack on the transceiver. The supply voltage must be between 5.5 V and 16 V to prevent damaging the transceiver. ¥ When connecting the transceiver to a cigarette lighter socket in a vehicle, use the specified cigarette lighter cable (option). ¥ Do not expose the transceiver to long periods of direct sunlight nor place the transceiver close to heating appliances. ¥ Do not place the transceiver in excessively dusty areas, humid areas, wet areas, nor on unstable surfaces. ¥ If an abnormal odor or smoke is detected coming from the transceiver, turn OFF the power immediately and remove the battery case or the battery pack from the transceiver. Contact your authorized KENWOOD dealer, customer service, or service station. TH-D7 E 00-i Notices98.12.4, 0:09 PM 1
Page 13
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 8 ADJUSTING SQUELCH Selecting the correct squelch level relieves you from listening to background noise output from the speaker when no signals are present. The appropriate squelch level depends on ambient noise conditions. You can program a different level for band A and B. Noise (Squelch opened) The current squelch level is incorrect. The current squelch level is correct.Audio No speaker output (Squelch closed) (Squelch opened) 1Press [F], [MONI]. ¥ The SQL meter indicates the current squelch level. The default is level 2; 4 segments are visible. 2Press [UP]/ [DWN] to select from 6 squelch levels. ¥ Select the level at which the background noise is just eliminated when no signal is present. ¥ The higher the level selected, the stronger the signals must be to receive. 3Press [OK] to complete the setting. TH-D7 E 07 Operating Basics98.12.4, 0:10 PM 8
Page 29
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 REVERSE FUNCTION The reverse function exchanges a separate receive and transmit frequency. So, while using a repeater, you can manually check the strength of a signal that you receive directly from the other station. If the stationÕs signal is strong, both stations should move to a simplex frequency and free up the repeater. Press [REV] to switch the Reverse function ON (or OFF). ¥ ÒRÓ appears when the function is ON. Note: u If pressing [REV] places the transmit frequency outside the allowable range, then pressing the PTT switch causes an error beep to sound; transmission is inhibited. u If pressing [REV] places the receive frequency outside the allowable range, an error beep sounds and no reversal occurs. u Automatic Repeater Offset does not function while Reverse is ON. u You cannot switch Reverse ON or OFF while transmitting. AUTOMATIC SIMPLEX CHECK (ASC) While using a repeater, ASC periodically monitors the strength of a signal that you receive directly from the other station. If the stationÕs signal is strong enough to allow direct contact without a repeater, the ASC indicator on the display begins blinking. Press [REV] (1 s) to switch the function ON. ¥Ò Ó appears when the function is ON. ¥ While direct contact is possible, the ASC indicator blinks. ¥ To quit the function, press [REV] momentarily. Note: u Pressing the PTT switch causes the ASC indicator to quit blinking. u ASC does not function if your transmit and receive frequencies are the same (simplex operation). u ASC does not function while scanning. u Activating ASC while using Reverse switches Reverse OFF. u If you recall a memory channel or the Call channel that contains Reverse ON status, ASC is switched OFF. u ASC causes receive audio to be momentarily intermitted every 3 seconds. STACON PACKET 96BCON DUP 9 75 STACON PACKET 96BCON DUP 9 75 REV ON 144.725 MHz 145.325 MHz TX: 144.725 MHz TX: 144.725 MHz RX: 145.325 MHz RX: 145.325 MHzTX: 144.725 MHz TX: 145.325 MHz RX: 145.325 MHz RX: 144.725 MHz 144.725 MHz TH-D7 E 20 Operating through.98.12.4, 0:11 PM 24
Page 63
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 58 5Repeat steps 3 and 4 to enter up to 8 digits (call sign), 9 digits (message), or 10 digits (RSV report). ¥ Pressing [OK] after selecting the last digit completes the programming. ¥ To complete programming after entering less than the maximum digits, press [OK] twice. ¥ Each press of [ESC] causes the cursor to move backward. ¥ Pressing [A/B] deletes the digit at which the cursor is blinking. 6Press [MENU] to exit Menu mode. You can also use the keypad to enter alphanumeric characters in step 3. For example, each press of [TNC] switches entry as A, B, C, then 2. Press [DUAL] to switch 0 and space. Press [ENT] to switch among the special ASCII characters. y t i l i b a d a e R o e d i V 1el b a d a e r n U1el b a z i n g o c e r n U 2el b a d a e r y l e r a B2el b a z i n g o c e r y l e r a B 3e l b a r e d i s n o c h t i w e l b a d a e R y t l u c i f f i d3h t i w e l b a z i n g o c e R y t l u c i f f i d e l b a r e d i s n o c 4o n y l l a c i t c a r p h t i w e l b a d a e R y t l u c i f f i d4h t i w e l b a z i n g o c e R y t l u c i f f i d o n y l l a c i t c a r p 5el b a d a e r y l t c e f r e P5el b a z i n g o c e r y l t c e f r e P h t g n e r t S l a n g i S 1el b i t p e c r e p y l e r a b s l a n g i s t n i a F6sl a n g i s d o o G 2sl a n g i s k a e w y r e V7g n o r t s y l e t a r e d o M s l a n g i s 3sl a n g i s k a e W8sl a n g i s g n o r t S 4sl a n g i s r i a F9sl a n g i s g n o r t s y l e m e r t x E 5sl a n g i s d o o g y l r i a F ENTERING CALL SIGN/ MESSAGE/ RSV Use the following procedures to enter a call sign, a message, or an RSV report. RSV stands for readability, signal strength, and video. If you receive a clear image free from noise, the RSV report should be 595. Note: The only difference among Menus 3Ð1, 3Ð3, and 3Ð5 is the maximum number of digits that you can enter. So you may enter another message using Menu 3Ð5, for example. 1Press [MENU] to enter Menu mode. 2Press [3], [1] to select Ò3Ð1 (MY CALL)Ó, or [3], [3] to select Ò3Ð3 (MESSAGE)Ó, or [3], [5] to select Ò3Ð5 (RSV)Ó. ¥ The display for entering characters appears; the first digit blinks. 3Press [UP]/ [DWN] to select a character. ¥ You can enter 0 to 9, A to Z, space, !, ?, Ð, and /. 4Press [OK]. ¥ The cursor moves to the next digit. STACON PACKET 96BCONDUP 975 STACON PACKET 96BCONDUP 975 STACON PACKET 96BCONDUP 975 TH-D7 E 57 SSTV with VC-H198.12.4, 0:12 PM 58
Page 75
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 70 ENTERING STATUS TEXT You can also transmit any comment (status text) with the latitude/ longitude data. If you want, enter a desired comment using a maximum of 20 alphanumeric characters. Note: Attaching a long comment can double the size and length of the packet. Enter a comment only if necessary. 1Press [MENU] to enter Menu mode. 2Press [2], [6] to select Ò2Ð6 (STATUS TEXT)Ó. ¥ The display for entering a comment appears; the first digit blinks. 3Press [UP]/ [DWN] to select a character. ¥ You can enter alphanumeric characters plus special ASCII characters. 4Press [OK]. ¥ The cursor moves to the next digit. 5Repeat steps 3 and 4 to enter up to 20 digits. ¥ Pressing [OK] after selecting the 20th digit completes the programming. ¥ To complete programming a comment after entering less than 20 digits, press [OK] twice. ¥ Each press of [ESC] causes the cursor to move backward. ¥ Pressing [A/B] deletes the digit at which the cursor is blinking. 6Press [MENU] to exit Menu mode. You can also use the keypad to enter alphanumeric characters in step 3. For example, each press of [TNC] switches entry as A, B, C, a, b, c, then 2. Press [DUAL] to switch 0 and space. Press [ENT] to switch among the special ASCII characters. STACON 96BCON DUP 9 75 TH-D7 E 61 APRS98.12.4, 0:13 PM 70
