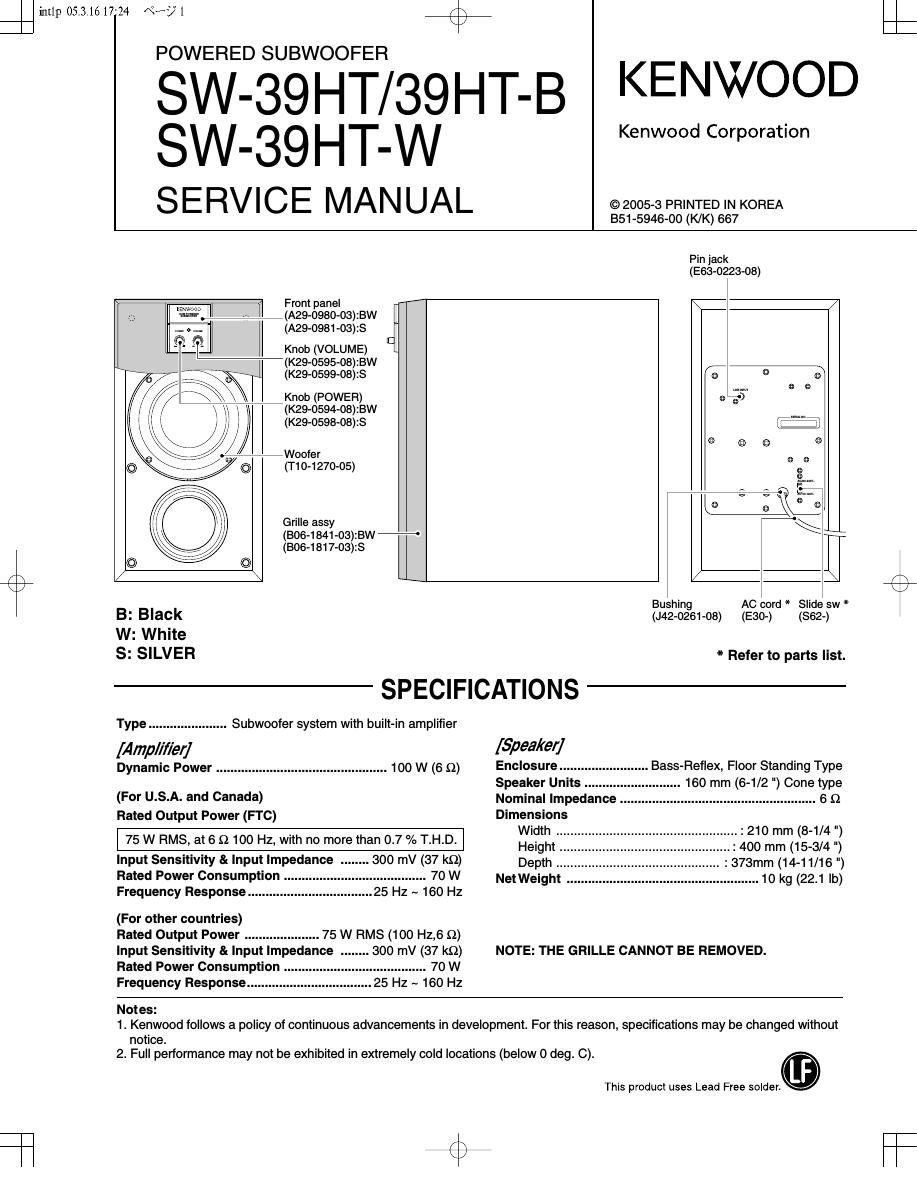

Kenwood SW 39 HT Service Manual

Page 1

iutlp 05.3.1617:24 Nb? 1 /\

POWERED SUBWOOFER

SW-39HT/39HT-B KENWQOD
SW_39 HT_W Kenwood Corporation

SERVICE MAN UAL ©2005-3 PRINTED IN KOREA

B51-5946-00 (K/K) 667

Pin jack
(E63-0223-08)

Front panel 3
(A29-0980-03):BW
(A29-0981-03):S

Knob (VOLUME)
(K29-0595-08):BW
(K29-0599-08):S

Knob (POWER)
(K29-0594-08):BW
(K29-0598-08):S

Woofer
(T10-1270-05)

Grille assy
(BOB-1841-03):BW
(BOB-1817-03):S

Bushing AC cord * Slide sw *
B: Black (J42-0261-08) (E30-) (362-)
W: White
S: SILVER * Refer to parts list.
Type ...................... Subwoofer system with built-in amplifier
[Amplifier] [Speaker]
Dynamic Power 100 w (6 Q) Enclosure ......................... Bass-Reflex. Floor Standing Type
Speaker Units ........... 160 mm (6-1/2 ") Cone type
(For USA. and Canada) Nominal impedance. ..................................... 6 :2
Rated Output Power (FTC) Dimensions
Width .. .. : 210 mm (8-1/4 ")

| 75 w RMS. at 6 9100 Hz. with no more than 0.7 % T.H.D. l

Height . : 400 mm (15-3/4 ")
Input Sensitivity & Input Impedance .. 300 mV (37 k9) Depth __ : 373mm (14-11/16 ")
Rated Power Consumption ----- 70 W NetWeight ...................................................... 10 kg (22.1 lb)

Frequency Response ........... 25 Hz ~ 160 Hz

(For other countries)
Rated Output Power ..................... 75 W RMS (100 H2.6 Q)
Input Sensitivity & Input Impedance .. 300 mV (37 kt!) NOTE: THE GRILLE CANNOT BE REMOVED.

Rated Power Consumption . ............ 70 W

Frequency Response ............ 25 Hz ~ 160 Hz

Notes:

1. Kenwood follows a policy of continuous advancements in development. Forthis reason, specifications may be changed without
notice.

2. Full performance may not be exhibited in extremely cold locations (below 0 deg. C).
This product uses Lead Free solder.

it i:

Page 2

iutlp 05.3.1617:24 «>92 45%
SW-39HT

ACCESSORIES / DISASSEMBLY FOR REPAIR

ACCESSORIES

Pin-plug cord (1) AC plug adapter (1)
lE30-7068-05) (E03-0260-05)

Use to adapt the plug on the power cord to the shape of the
wall outlet.
(Accessory only for regions where use is necessary.)

DISASSEMBLY FOR REPAIR

1. HOW TO REMOVE GRILLE ASS'Y
Insert the screw driver to gaps of the grille assy (see figure)
Caution; Dont damage the enclosure with screw driver.
