Kenwood SW 38 HT Service Manual
This is the 6 pages manual for Kenwood SW 38 HT Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood SW 38 HT Service Manual (Ocr-read)

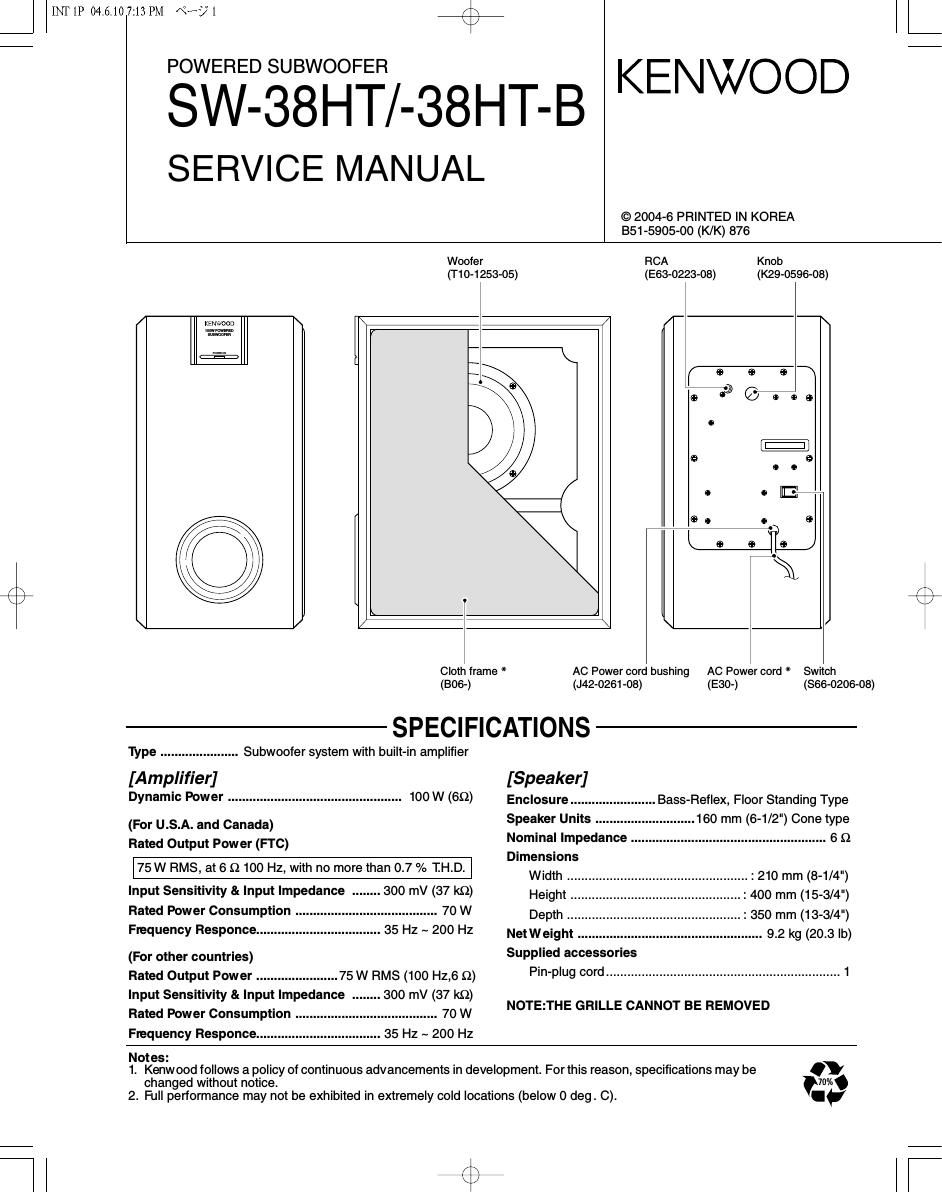

Page 1
INI 1P 04.6.107:13 PM \°*/1 /\
K
PsOVIIIiféugvfiFEf/aaHT-B KENWOOD
SERVICE MANUAL
© 2004-6 PRINTED IN KOREA
351-5905-00 (K/K) 876
Woofer RCA Knob
(T10-1253-05) (E63-0223-08) (K29-0596-08)
KFNWODIJ -
a.
x \ r
K / K
Cloth frame * AC Power cord bushing AC Power cord * Switch
(806-) (J42-0261-08) (E30-) (see-ozoe-oa)
SPECIFICATIONS
Type .. Subwoofer system with built-in amplifier
[Amplifier] [Speaker]
Dynamic POWEI - 100 W (59) Enclosure ..... Bass-Reflex, Floor Standing Type
(For U.$.A. and Canada) Speaker Units . ........... 160 mm (6-1/2") Cone type
Rated Output Power (FTC) Nominal Impedance ....................................................... 6 9
I75 w FIMS at 6 Q 100 H 'th no more than 0 7 °/ TH D | Dimensms
' Z W' ' ° ' ' Width ................................................... : 210 mm (8-1/4")
Input Sensitivity & Input Impedance - 300 mV (37 k9) Height ................................................ : 400 mm (15-3/4")
Rated Power Consumption ................................. 70 W Depth __ - 350 mm (13.3/4")
Frequency Responce ................................... 35 Hz ~ 200 Hz NetWeight 9.2 kg (20.3 lb)
(For other countries) SUPPIIEd accessories
Rated Output Power _______________________ 75 W RMS (100 Hz,6 Q) Pin-plug cord .................................................................. 1
Input Sensitivity & Input Impedance . 300 mV (37 k9)
NOTE:THE GRILLE CANNOT BE REMOVED
Rated Power Consumption ................................. 70 W
Frequency Responce ................................... 35 Hz ~ 200 Hz
Notes:
1. Kenwood follows a policy of continuous advancements in development. For this reason, specifications may be .
changed without notice. 70%
2. Full performance may not be exhibited in extremely cold locations (below 0 deg. C).
TI ¢ IE
Page 2
INI 1P 04.610713 PM «522 /\
SW-38HT
ACCESSORIES
Accessories
Pin-plug cord (1) AC plug adapter(1)
(E30-7068-05) (an-ozeo-os)
g?
How to Replace Woofer
Cut the Cloth of cloth frame assy and replace it with new one after mount the speaker.
