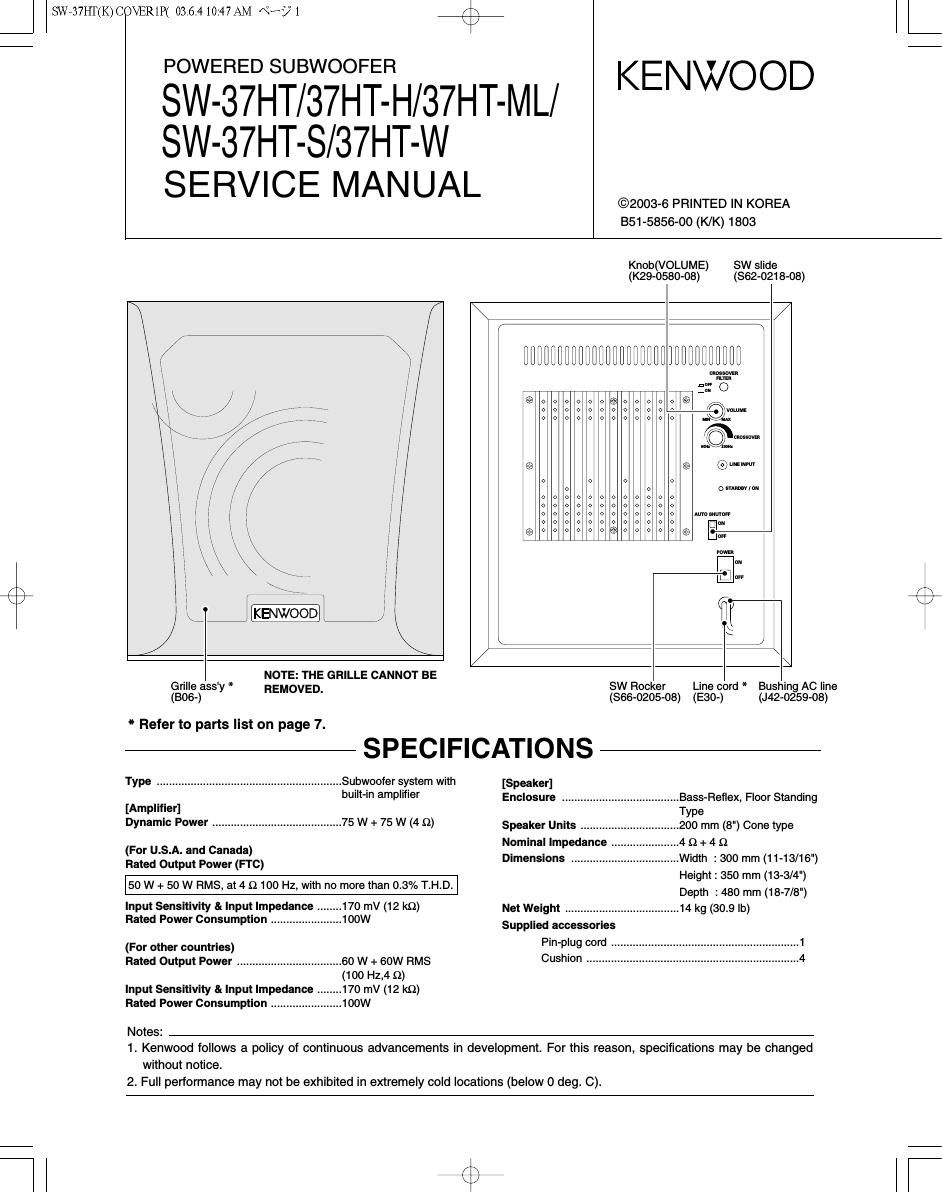

Page 1

SW737HT(K)COVER1P( 03.6.4 10:47 AM NRA) 1

POWERED SUBWOOFER

SW-37HT/37HT-H/37HT-ML/
SW-37HT-S/37HT-W
SERVICE MANUAL

KENWOOD

Knob(VOLUME) SW slide

(K29-0580-08)

(362-0218-08)

j KENWOOD

iIIHIUIIIIH:

. / V n\
4.04am

mssnm
n a

3:: 5

o sunnnlnn

Aura 54mm

: w
.-
nrr

rowzn

NOTE: THE GRILLE CANNOT BE

Grille ass'y * REMOVED.
(806-)

* Refer to parts list on page 7.

SPECIFICATIONS

Type ............................................................ Subwoofer system with
built-in amplifier

[Amplifier]

Dynamic Power .......................................... 75 W + 75 W (4 9)

(For U.S.A. and Canada)
Rated Output Power (FTC)

50 W + 50 W RMS, at 4 $2 100 HZ, with no more than 0.3% T.H.D.

Input Sensitivity & Input Impedance
Rated Power Consumption ...........

Notes:
1. Kenwood follows a policy of continuous advancements in development. For this reason, specifications may be changed

..170 mV (12 k9)
..1oow

(For other countries)
Rated Output Power .................................. 60 W + 60W RMS

(100 Hz,4 o)
..170 mV (12 kg)
..1oow

Speaker Units ......
Nominal Impedance
Dimensions .........

5
SW Rocker Line cord * Bushing AC line
(866-0205-08) (E30-) (J42-0259-08)
[Speaker]
Enclosure ...................................... Bass-Reflex, Floor Standing
Type

200 mm (8") Cone type
Q+4Q

Width : 300 mm (11-13/16")
Height : 350 mm (13-3/4")
Depth :480 mm (18-7/8")
Net Weight ..................................... 14 kg (30.9 lb)

Supplied accessories

Pin-plug cord ............................................................. 1

Cushion ..................................................................... 4

without notice.

2. Full performance may not be exhibited in extremely cold locations (below 0 deg. C).

Page 2

SW737HT(K)COVER1P( 03.6.4 10:47 AM N992 /\

SW-37HT/37HT-H/37HT-ML/37HT-S/37HT-W

ACCESSORIES

Accessories
Pin-plug cord (1) Cushion (4)
(ESQ-596408) (G13-1141-08)

99
99

Attaching (he cushians
Attach four cushions to the base of the subwoofer, one at
each corner. The cushions prevent the subwoofer from

sliding, and dampen its vibrations.

WARNING

Due to the mains switch was located at the rear panel, the
apparatus must be located in the open area without any
obstructions to access the mains switch.

How to Replace Woofer
Insert the scew driver to a gap between cabinet and grille assy from bottom side.
