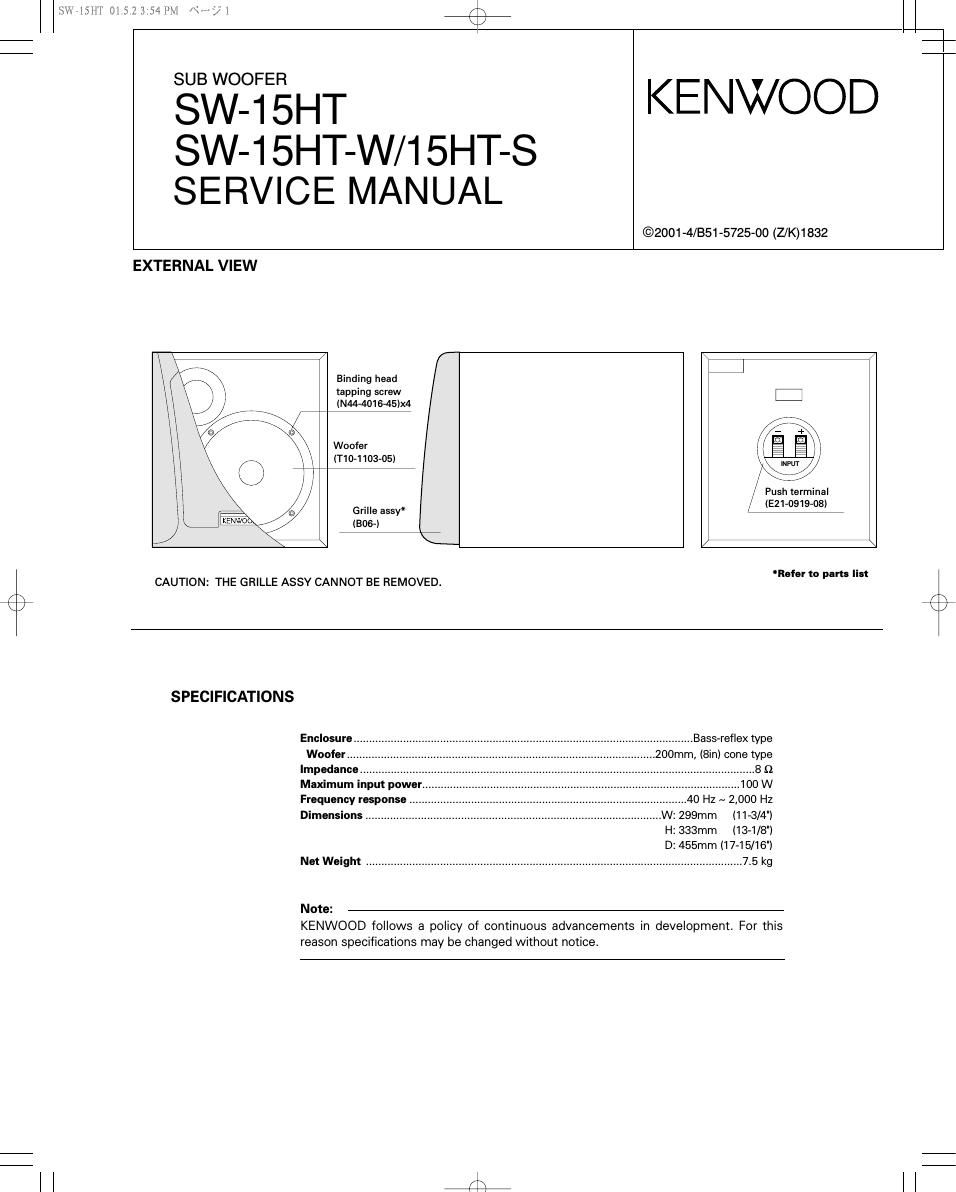

Page 1
SWVISHT 01.5.23:54 PM \'»A/1 /\
r\
\/
SUB WOOFER
SW-15HT
SW-15HT-W/15HT-S
SERVICE MANUAL
KENWOOD
©2001-4/BS1-5725-00 (Z/K)1832
EXTERNAL VIEW
Binding head
tapping screw
(N44-4016~45)x4
Woofer
lTlO-1103v05)
Grille assy*
(BOG-l
// Push terminal
/ IE2I-0919-08)
CAUTION: THE GRILLE ASSY CANNOT BE REMOVED.
Refer to parts list
SPECIFICATIONS
Enclosure ........... Bass-reflex type
Woofer.. 00mm, (Sin) cone type
Impedance. ............................... 8 9
Maximum input powe ............... 100 W
Frequency response 0 Hz ~ 2,000 Hz
Dimensions .W: 299mm Ii i-3/4")
H: 333mm (13-1/8")
DZ 455mm (17-15/16")
Net Weight .......................................................................................................................... 7.5 kg
Note:
KENWOOD follows a policy of continuous advancements in development. For this
reason specifications may be changed without notice.
Page 2
SWVISHT 01.5.23:54PM \'»A/2 /\
SW-15HT/-15HT-W/-15HT-S
DIVIDING NETWORK UNIT/PARTS LIST
DIVIDING NETWORK UNIT
T 0 RED T
INPUT SP1
-I7
, o B LK
PARTS LIST
* New Parts
/\ Parts without Parts No, are not supplied.
\ / Les articles non mentionnes dans la Parts No. ne sont pas fournis. \
Teile ohne Parts No. werden nicht geliefert.
New . . Desti- Re-
Ref. No. Address Parts Parts No, Description nation marks
SW-15HTI-15HT-WI-15HT-S
- * BOG-154908 GRILLE ASSY(SW-T 5HT/1 5HT-W)
- * BOG-158308 GRILLE ASSY(SW-T 5HT-SI
- 846-0328-03 WARRANTY CARD (SW-1 5HT) K
- 846-0347-03 WARRANTY CARD (SW-15HT) P
- * 861-1106-00 INSTRUCTION MANUAL
- * E21-0919-08 PUSH TERMINAL
- * E30-5920-08 SPEAKER CORD
- 613-1141-08 CUSHION
- * HID-824108 POLYSTYRENE FOAMED FIXTURE
- * HIO-8242-08 POLYSTYRENE FOAMED FIXTURE
- * HST-168508 ITEM CARTON CASE (SW-ISHT) KP
- * HST-168608 ITEM CARTON CASE (SW-I 5HT) M
- * HST-168908 ITEM CARTON CASE (SW-I 5HT-WI M
- * HST-171508 ITEM CARTON CASE (SW-ISHT-S) M
SP1 * TT 0-1 103-05 WOOFER
L: Scandinavia K: USA P: Canada R: Mexico 0: China I: Malaysia
V: PXIFor East Hawaiil T: England E: Europe G: Germany V: China(ShanghaiI
V: AAFESIEuropeI X: Australia 0: Russia H: Korea M: Other Areas A indicates safety critical components.
