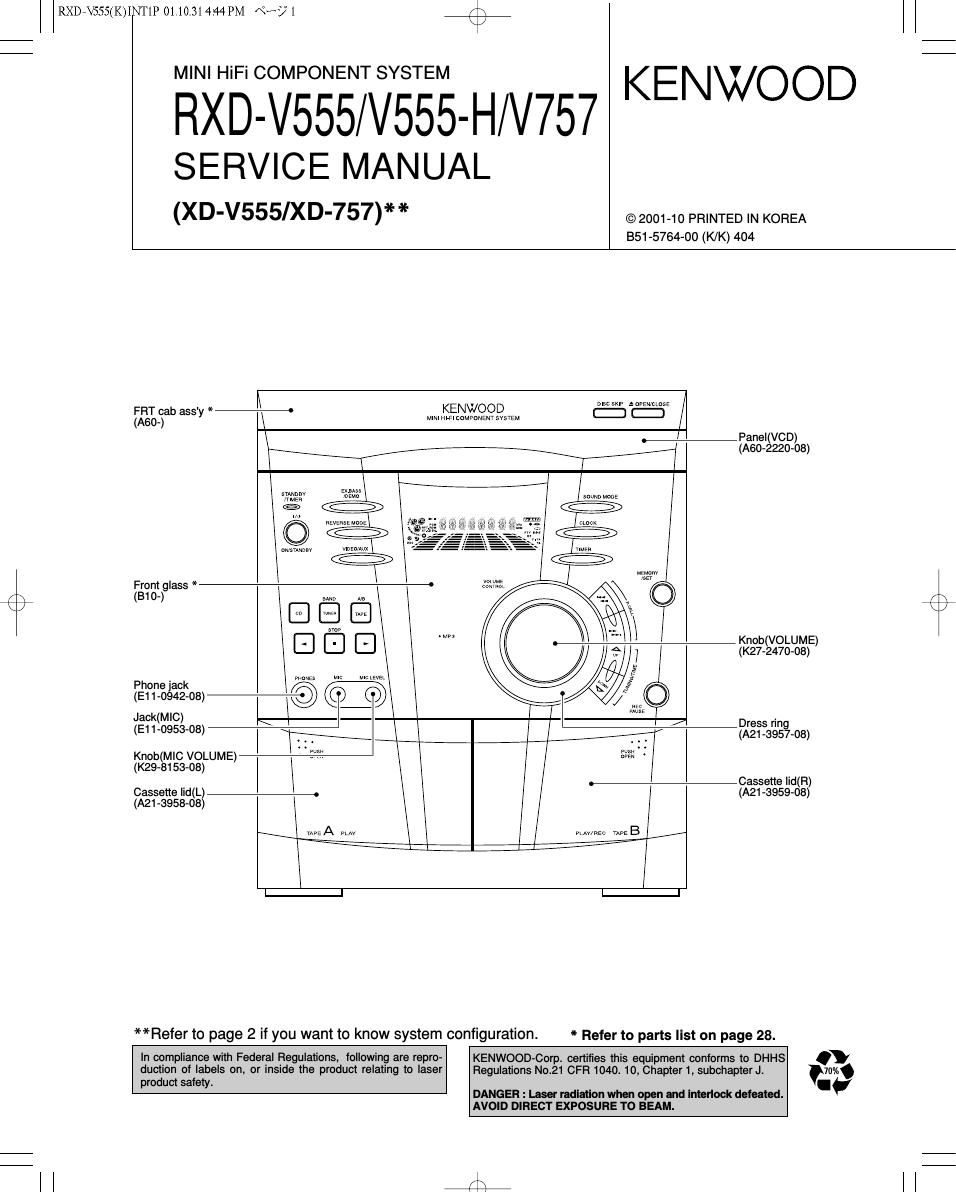

Kenwood RXDV 757 Service Manual

Page 2

RXD7V555(K)INT1P 01.10.31 4:44 PM \°~:/°2 /\

RXD-V555/V757

CONTENTS / ACCESSORIES

Contents

CONTENTS / ACCESSORIES .. 2 SCHEMATIC DIAGRAM .. ..... 16
EXTERNAL VIEW ...................... ....3 EXFLODED VIEW ................. 26
ADJUSTMENT.... ....7 PARTS LIST ................................. 28
PC BOARD ......... .. 8 SPECIFICATIONS ..... Back cover
Accessories
f \
FM Antenna(1) AM Loop Antenna(1) Remote Control(1) "AA" size battery(2)
(T90-0883-08) (T90-0879-08) (A70-1574-08) (UM/SUM-3, R6, HP-7 or similar)
. AC Plug Adaptor (1)
VIdeo Cable(1) _ _
(E30-7255-08) £03 0115 05)
1 Use to adapt the plug on the
I" power cord to the shape of the
wall outlet.
(Accessory only for regions where
use is necessary.)
/ \
x 2 L J

System Configurations

SYSTEM MAIN UNIT DESTINATION SPEAKER
XD-V858 RXD-V757 MI LS-NQOVS
XD-V757 RXD-V757 MI LS-N70VS
XD-V555 RXD-V555 MI LS-NSOVS
XD-V555-H RXD-V555-H M LS-NSOVS-H
Cautions

The marking of products using lasers
(Except for some areas)

CLASS 1
LASER PRODUCT
The marking is located on the rear panel and
says this product has been classified as Class

1. It means that there is no danger of hazard
ous radiation outside the product
