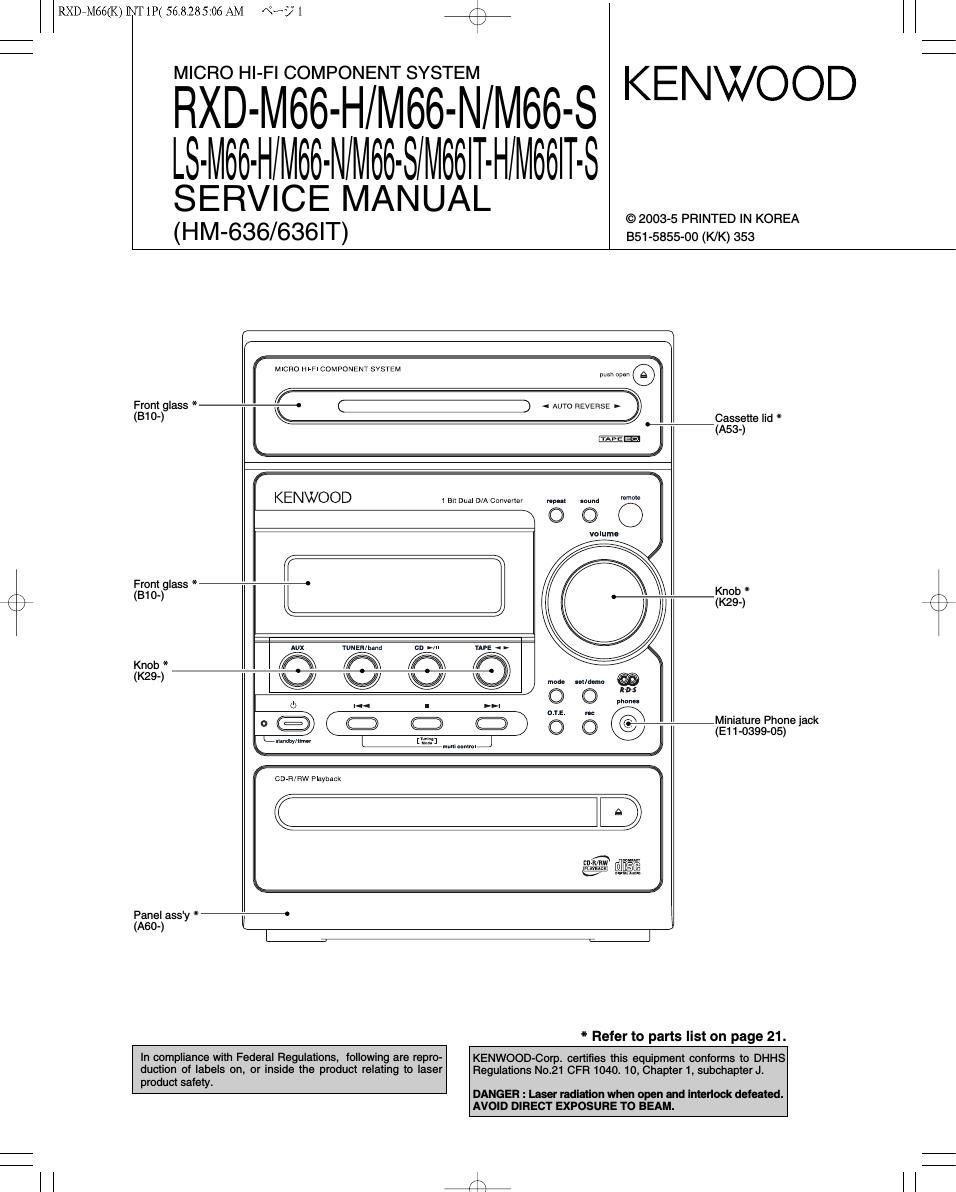

RXDrMGG(K) INT 1P( 56.8.28 5:06 AM «3? 1 K \

MICRO HI-FI COMPONENT SYSTEM

RXD-M66-H/M66-N/M66-S KENWOOD
LS-M66-H/M66-N/M66-S/M66i-HlM66i-S

SERVICE MANUAL
(HM-636/636IT)

© 2003-5 PRINTED IN KOREA
B51-5855-00 (K/K) 353

MICRO Hl-Fl COMPONENT SYSTEM a .n F
From glass * :3 < » D
(310') K Cassette lid *
w (A53-)
IEE
KENWOOD t Bu Dual D/A Conveuer "pm mum m
N O Q 0
volume
Front glass * -' *
r 810- Knob
Q I I (K29-)
Alix YuNER/band
Knob * flih fl
9-) ivw v
L) |«
@ (_) Miniature Phone jack
C (E11-0399-05)
memw [W31
mm: n...
CDrH/RW Playback
C Q)
CIHt/RW m
Luv/I @flglfi
Panel ass'y * -°
(A60-) I

° Refer to parts list on page 21.

product safety

In compliance with Federal Regulations, following are repro-
duction of labels on, or inside the product relating to laser

KENWOOD-Corp. certifies this equipment conforms to DHHS
Regulations N021 CFR 1040. 10, Chapter 1, subchapter Jt

DANGER : Laser radiation when open and interlock defeated.
AVOID DIRECT EXPOSURE TO BEAM.

#

Page 2

RXDsMGG(K) INT 1P( 56.8.28 5:06 AM N? 2 K \

RXD-M66/LS-M66

ACCESSORIES / CAUTIONS

Attention
Please contact our KENWOOD Service Department in your side if you want the sen/ice information; Circuit Description. Full
Described Parts list and so. Information is available to you by internet from us. On circuit description, refer to RXD-M55.

Accessories

Remote control unit (1)
(A70-1568-05): EE1 E2
(A70-1569-05): M1 X1X2

AM loop antenna (1)

(T90-0893-05) AC Plug Adaptor (1)

(E03-0115-05)
Use to adapt the plug on the

9 power cord to the shape of the
'1 wall outlet.
(Accessory only for regions where
use is necessary.)

Batteries (HG/AA) (2)

as

FM indoor antenna (1)
(T90-0877-05)

System Configurations

SYSTEM RECEIVER SPEAKER
HM-636-H FtXD-M66-H LS-M66-H
HM-636-N FtXD-MGG-N LS-M66-N
HM-636-S RXD-Mee-s LS-M66-S
HM-636lT-H FtXD-MGG-H LS-M66lT-H
C3 HM-636IT-S RXD-M66-S LS-MGGlT-S
Cautions

Operation to reset Note related to transportation and movement

The microcomputer may fall into malfunction (impossibil-
ity to operate, erroneous display, etc.) when the power
cord is unplugged while unit is ON or due to an external
factor. In this case, execute the following procedure to
reset the microcomputer and return it to normal condi-
tion.

0 Please note that resetting the microcomputer clears
the contents stored in and it returns to condition
when it left the factory.

Unplug the power cord from the power outlet, then

while holding the POWER or (5 key depressed, plug
the power cord again.

After resetting the microcomputer, the display will show
as follow:

Before transporting or moving this unit, carry out the follow-
ing operations.

0 Remove the CD from the unit.
9 Press the CD NII key.

0 Wait for some time and verify that the display
appears as above.
0 Wait a few seconds and turn the unit OFF.

CLASS 1
LASER PRODUCT

The marking of this product has been classiiied as Class 1. It means
that there is no danger of hazardous radiation outside the product.
Location Back panel

The marking of products using lasers (For countries other than U.S.A., U.S.-Military and Canada)

CAUTION
VlSlBlE LASER RADlATlDN
WHEN OPEN Do Nor suns
mm mm on will! mainly
wmt oPtIcAL leTRvMENrs

inside this laser product, a laser diode classified as Class 3A laser
radiation is contained as alerted by the internal caution label shown
above. Do not stare into beam or View directly With optical instruments

dii
