Kenwood RXDM 57 Service Manual

Page 1

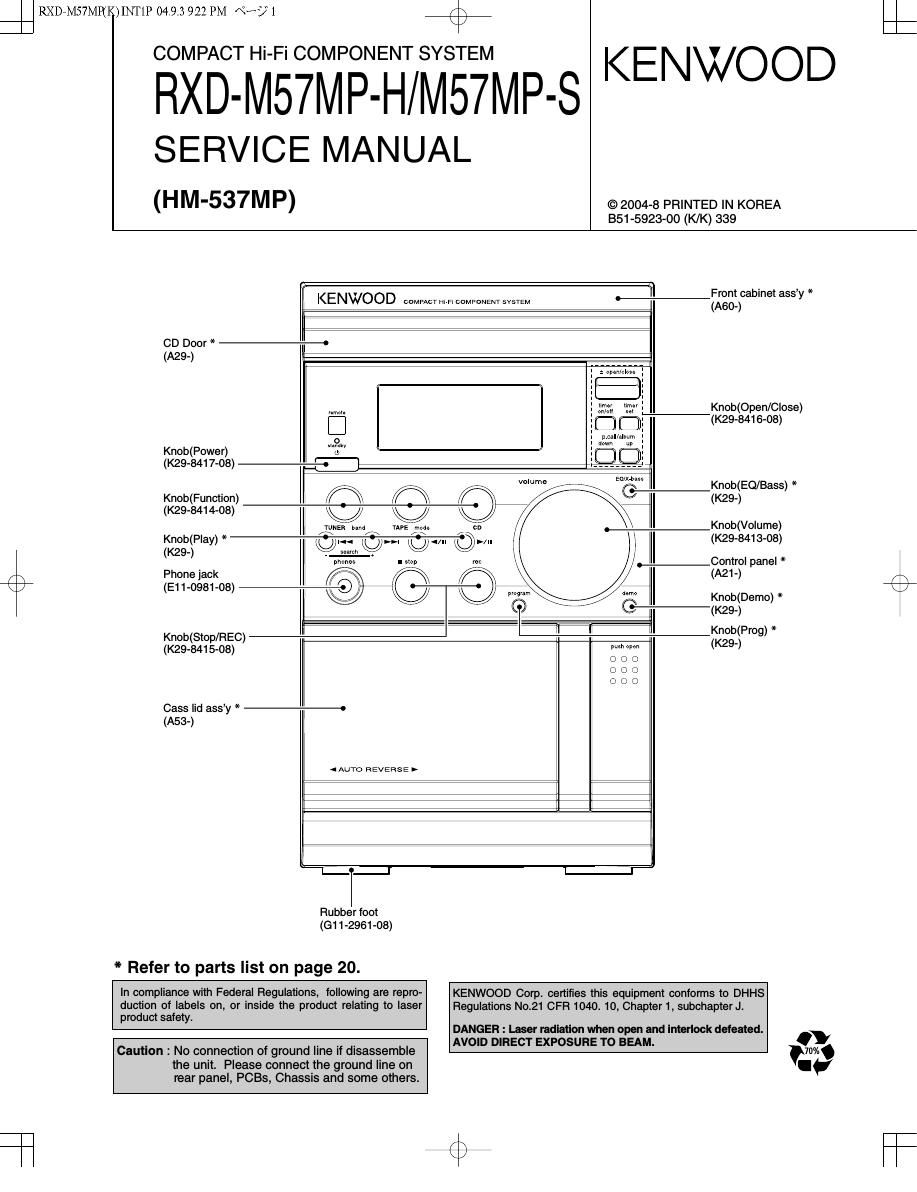

RXD7M57MP(K)INT1P 04.9.3 9:22 PM \°-/ 1

4%

COMPACT Hi-Fi COMPONENT SYSTEM

KENWOOD

FIXD-M57MP-H/M57MP-S

SERVICE MANUAL

(HM-537M P)

© 2004-8 PRINTED IN KOREA
851-5923-00 (K/K) 339

KENWOOD comm Hm COMPONENT SYSTEM

(A60-)

TI Front cabinet ass'y *

CD Door *
(A29-)

mm Knob(0pen/Close)

(K29-8416-08)

O
Knob(Power) "5
(K29-8417-08) ._(

,\ r a volume 7 K b EQ/B *

Knob(Funotion) rm m l/ \. (K2093 355)
(K29-8414-08) V U \\\7/

lunar? ma npa mode

Knob(Play) *

Ugmuw U4": Q

Knob(Volume)
(K29-8413-08)

\ l
/

w" l

(K29') l .

Phones /3\ \ ._ Control panel *
Phone jack 0 \ (A21-)
E11-0981-08 a l '
( ) \J 77 Knobmemo) *

(I) C (K29-)
ll r II K b P *

Knob(Stop/FIEC) l. (£593 m9)

(K29-8415-08)

Cass lid assy *
(A53-)

_I

Rubber toot
(G11-2961-08)

* Refer to parts list on page 20.

In compliance with Federal Regulations, following are repro-
duction of labels on, or inside the product relating to laser
product safety.

Caution : No connection of ground line it disassemble
the unit. Please connect the ground line on
rear panel, PCBs, Chassis and some others.

KENWOOD Corp. certifies this equipment conforms to DHHS
Regulations No.21 CFR 1040. 10, Chapter 1, subchapter J.

DANGER : Laser radiation when open and interlock defeated.
AVOID DIFIECT EXPOSURE TO BEAM.

Page 2

g_

RXD7M57MP(K)INT1P 04.9.3 9:22 PM may 2 / \

RXD-M57MP

CONTENTS/ACCESS

CONTENTS
CONTENTS / ACCESSORIES / CAUTIONS
EXTERNAL VIEW
ADJUSTMENT ..
PC BOARD ..........

ACCESSORIES

ORES/CAUHONS

SCHEMATIC DIAGRAM ..
EXPLODED VIEW.
PARTS LIST ...........
SPECIFICATIONS .....

...BACK COVER

AM loop antenna (1) FM ANT Wire (1) Remote control unit (1)
(T90-0908-08) (T90-0918-08) (A70-1688-08)

Batteries (Re/AA) (2) 7 AC plug adapter (1) 7
(E03-O115-05)

? Q
Use to adapt the plug on the power

cord to the shape of the wall outlet.
(Accessory only for regions where
use is necessary.)

SYSTEM CONFIGURATION

SYSTEM RECEIVER SPEAKERS
K HM-537MP-H RXD-M57MP-H LS-M57-H
HM-537MP-S RXD-M57MP-s LS-M57-S

CAUTIONS

Resetting the Microcomputer

The microcomputer may malfunction (unit can-
not be operated, or shows an erroneous dis-
play) if the power cord is unplugged while the
power is ON, or due to some other external
factor. If this happens, execute the following
procedure to reset the microcomputer and
return the unit to its normal operating condition.

Plug in the AC power cord to the wall outlet,
and within 5 seconds, press and hold down
the I button and press CD button.

- Please note that resetting the microcomputer
will clear the contents of the memory and
return the unit to the state it was in when it
left the factory.

CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL A LASER DE CLASSE1

LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT

The marking this product has been classified as Class 1.
It means that there is no danger of hazardous radiation
outside the product.

Location: Bottom
