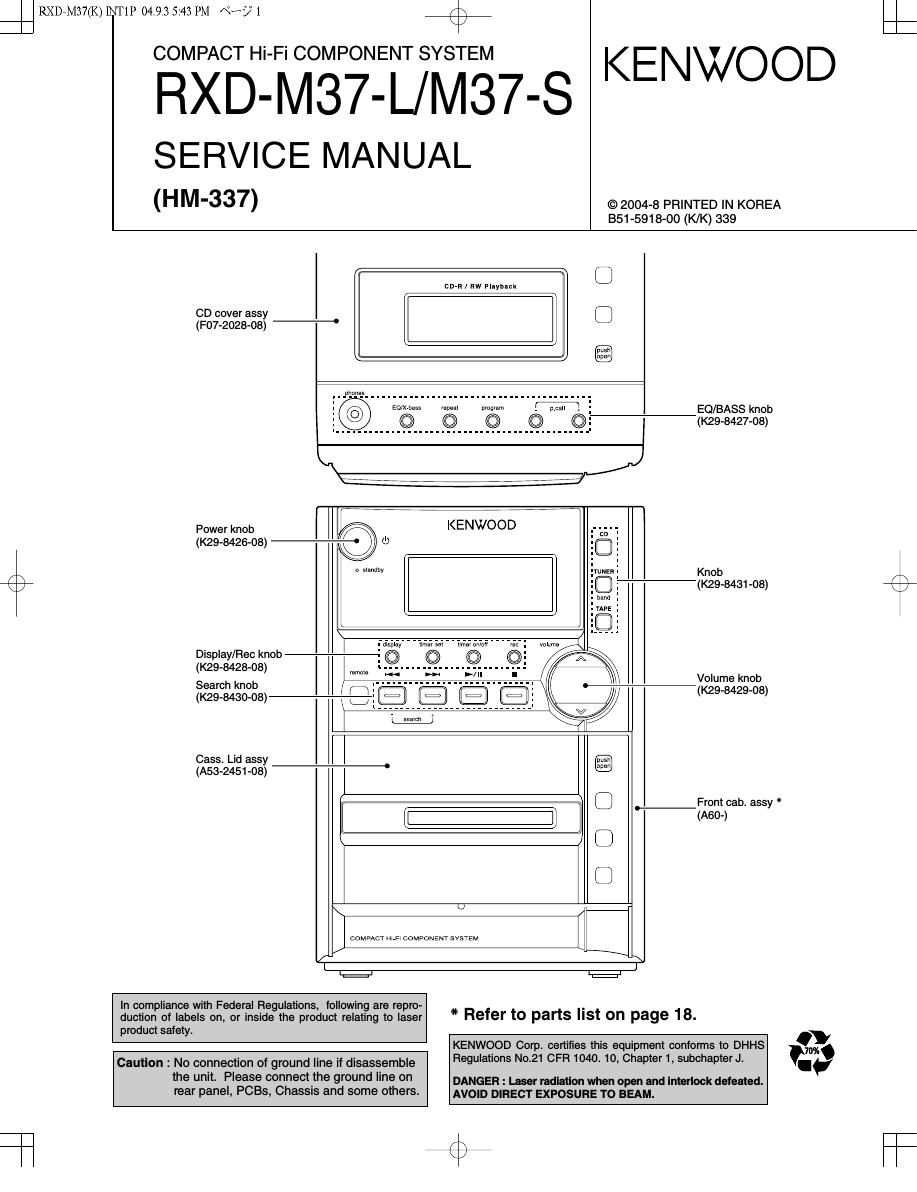

RXD7M37(K)]NT1P 04.9.3 5:43PM «3? 1 /\
K

RXDM37L/M37s KENWOOD

SERVICE MANUAL
(HM-337) ©2004-8 PRINTED IN KOREA

BS1 -591 8-00 (K/K) 339

can I aw Playback

CD cover assy

(F07-2028-08) -

EO/Xrbass vepeai pvogvam , u call EQ/ BASS knob

© (K29-8427-08)

KENWOOD
Powerknob //
(K29-8426-08) \ D 0
Q

o swanany

Knob A

-(K29-8431-08) @


Display/Rec knob
(K29-8428-08)

Search knob
(K29-8430-08)

Volume knob
(K29-8429-08)

Search

Cass. Lid assy push

(A53-2451-08)
» C] Front cab. assy *
:1 * we»

COMPACT Hm COMPONENT SYSTEM

- \
l L.=r1 |1=.J J
In compliance with Federal Regulations, following are repro- .
duction of labels on, or inside the product relating to laser * Refer to parts St on page 18.
product safety. .,
KENWOOD Corp. certifies this equipment conforms to DHHS 7.

Caution : No connection of ground line if disassemble Regum'ons N021 CFR 1040 10' Chapter 1' SUbChapterJ' I.

the un't- Please conneCtlthe ground 6 on DANGER : Laser radiation when open and interlock defeated.

rear panel, PCBS, ChaSSIS and some others AVOID DIFIECT EXPOSURE TO BEAM.

¢> r:

Page 2

RXD7M37(K)]NT1P 04.9.3 5:43 PM Nb? 2 / \

RXD-M37

CONTENTS/ACCESS

CONTENTS
CONTENTS / ACCESSORIES / CAUTIONS ..
EXTERNAL VIEW ...........................................

ORES/CAUHONS

SCHEMATlC DIAGRAM ..
EXPLODED VIEW ...........


ADJUSTMENT ...... PARTS LIST ..............

PC BOARD ........... SPECIFICATIONS .....

ACCESSORIES
AM loop antenna ()1 ANT TERMI CVR Remote control unit (1) Batteries (Re/AA) (2) 7 AC plug adapter (1) 7
(T-90 0908- 08) (F07- 2029- -08) (A70-1690-08): E (E03-O115-05)

(A70-1691-08): MX

@

H

6 Use to adapt the plug on the power

cord to the shape of the wall outlet.
(Accessory only for regions where
use is necessary.)

CAUTIONS

Channel space switching

(except for the Europe and Australia)

The space between radio channels has been
set to the one that prevails in the area to which
the system is shipped. However, if the curren
channel space setting does not match the
setting in the area where the system is to be
used, for instance when you move from area 1
or area 2 shown in the following table or vice
versa, proper reception of AM/FM broadcasts
cannot be expected. In this case, change the
channel space setting for each AM and FM
broadcast in accordance with your area by
referring to the following table.

CHANNEL
Area Space frequency
1 USA, Canada and FM: 100 kHZ
South American countries AM: 10 kHz
2 - FM: 50 kHz
Other countries AM: 9 kHz

When the system is on, press TUNER/band
button to select TUNER mode and waveband
of which you wish to set the channel space.

Then, while pressing >/II button, press H4
button to switch the channel space.

The marking of products using lasers

CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL A LASER DE CLASSE 1

LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT

The marking this product has been classified as Class 1.
It means that there is no danger of hazardous radiation
outside the product.

2 Location: Bottom

CAUTION

Be sure to adhere to the following, or proper
ventilation will be blocked causing damage
or fire hazard.

0 Do not place any objects impairing heat
radiation onto the top of the unit.

0 Leave some space around the unit (from the
largest outside dimension including
projection) equal to or greater than, shown
below.

Top panel : 50 cm
Back panel : 10 cm

CA U TION

0 Place the unit where the AC power cord can
be easily unplugged.

- The power in this unit will not be completely
cut off from the AC wall outlet when the
power completely, unplug the AC power
cord from the AC wall outlet.

Resetting the Microcomputer

The microcomputer may malfunction (unit can-
not be operated, or shows an erroneous dis-
play) if the power cord is unplugged while the
power is ON, or due to some other external
factor. If this happens, execute the following
procedure to reset the microcomputer and
return the unit to its normal operating condition.

Plug in the AC power cord to the wall outlet,
and within 5 seconds, press and hold down
the I button and press CD button.

. Please note that resetting the microcomputer
will clear the contents of the memory and
return the unit to the state it was in when it
left the factory.
