Kenwood RXDM 32 Service Manual

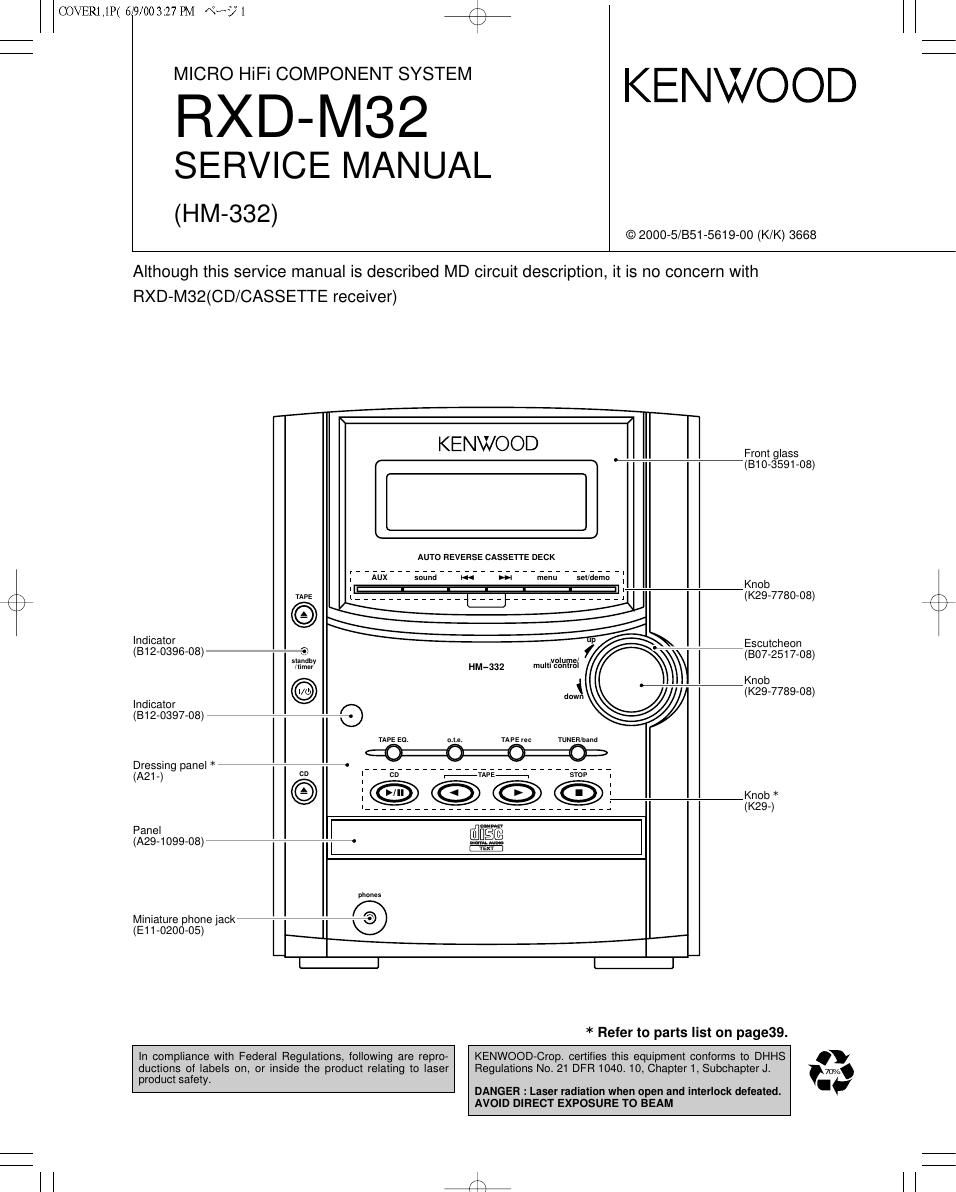

Page 1

r\
\J

COVER1,1P( 6/9/0032? PM \°-/ 1

RXD-M32

/\
\/

MICRO HiFi COMPONENT SYSTEM

KENWOOD

SERVICE MANUAL

(HM-332)

© 2000-5/851-5619-00 (K/K) 3668

Although this service manual is described MD circuit description, it is no concern with

RXD-M32(CD/CASSETTE receiver)

AUTO REVERSE CASSE'I'IE DECK

KENWOOD l | Front glass

(810-3591-08)

Knob

Indicator
(812-0396-08)

standby
lllmev

Indicator
(B12-0397-08)

(K29-7780-08)

Escutcheon
(807-2517-08)

Knob
(K29-7789-08)

TAPE so. ate. YAPE rec TUNER/hand
Dressing panel * ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
(A21 -) l on y-TAPE-t smp
l
1.-..-._______________________J (K29-)
Panel I [flfigfi
(A29-1099-08) |

phones

Miniature phone jack 3
(E11-0200-05) \l

;l

* Refer to parts list on page39.

in compliance with Federal Regulations, following are repro-
ductions of labels on, or inside the product relating to laser
product safety.

KENWOOD-Crop. certifies this equipment conforms to DHHS

Regulations No. 21 DFR 1040. 10, Chapter 1, Subchapter J.

DANGER : Laser radiation when open and interlock deleated.
AVOID DIRECT EXPOSURE TO BEAM

411i

Page 2

COVER1,1P( 6/9/00 3:27 PM \°~:/°Z /\

RXD-M32

CONTENTS / ACCESSORIES

Contents

CONTENTS / ACCESSORIES .................................. 2 PC BOARD ............................................................... 19
DISASSEMBLY FOR REPAIR... ...3 SCHEMATIC DIAGRAM ..
CIRCUIT DESCRIPTION. 4 EXPLODED VIEW

ADJUSTMENT................. :15 PARTS LIST .............. ..39
HOW TO READ THE PARTS LIST ........................... 18 SPECIFICATIONS ...................................... Back cover
Accessories
f 1
Remote control unit (1) - FM indoor antenna (1)
Europe and U.K Other countries (T90-t)861»05)

i,

Battery cover(A09»1161-08)

AM loop antenna (1) Batteries (RB/AA) (2) AC | d t 1
(Tao-085205) p g a ap (I I

(E03-0115-O5)
O

k

System Configuration

/ \

\ / SYSTEM MAIN UNIT DESTINATION SPEAKER COLOR
HM-332-L RXD-M32-L ETHMX(L) LS-M32-L BLUE
HM-332E-L RXD-M32E-L E2(L) LS-M32-L BLUE
HM-332-S RXD-M32-S KPETHMX(S) LS-M32-S SILVER
HM-332E-S RXD-M32E-S E2(S) LS-M32-S SILVER
HM-332-Y RXD-M32-Y E1T1 M1 (Y) LS-M32-Y YELLOW
HM-332E-Y RXD-M32E-Y E3(Y) LS-M32-Y YELLOW
HM-332-H RXD-M32-H ETHMX(H) LS-M32-H GRAY
HM-332E-H RXD-M32E-H E2(H) LS-M32-H GRAY
HM-332-W RXD-M32-W E(W) LS-M32-W WHITE
HM-332E-W RXD-M32E-W E2(W) LS-M32-W WHITE
HM-332-LS RXD-M32-LS KP(LS) LS-M32-LS SKY BLUE

Remocon Configuration
REMOTE CONTROLLER MODEL NAME MODEL DESTINATIONS COLOR
A70-1380-08 RC-F0100 RXD-M32-L/LS KPMX BLUE
A70-1381-08 RC-F0100E RXD-M32-L HTEE2 BLUE
A70-1394-08 RC-F0100 RXD-M32-S KPX WHITE
A70-1395-08 RC-F0100 RXD-M32-S/H MX SILVER
A70-1396-08 RC-F0100E RXD-M32-Y T1 E1 E3 YELLOW
A70-1397-08 RC-F0100E RXD-M32-W/S/H HTEE2 SILVER
A70-1398-08 RC-F0100 RXD-M32-Y M1 YELLOW -S
Cautions

Operation to reset

The microcomputer may fall into malfunction (impossibil-
ity to operate, erroneous display, etc.) when the power
cord is unplugged while unit is ON or due to an external
factor. In this case, execute the following procedure to

reset the microcomputer and return it to normal condi- :fl STOP
tion. ° » - .7
o

Unplug the power cord from the power outlet then.
while holding the set/demo key depressed, plug
the power cord again.

0 Please note that resetting the microcomputer clears
the contents stored in and it returns to condition when
2 it left the factory.
