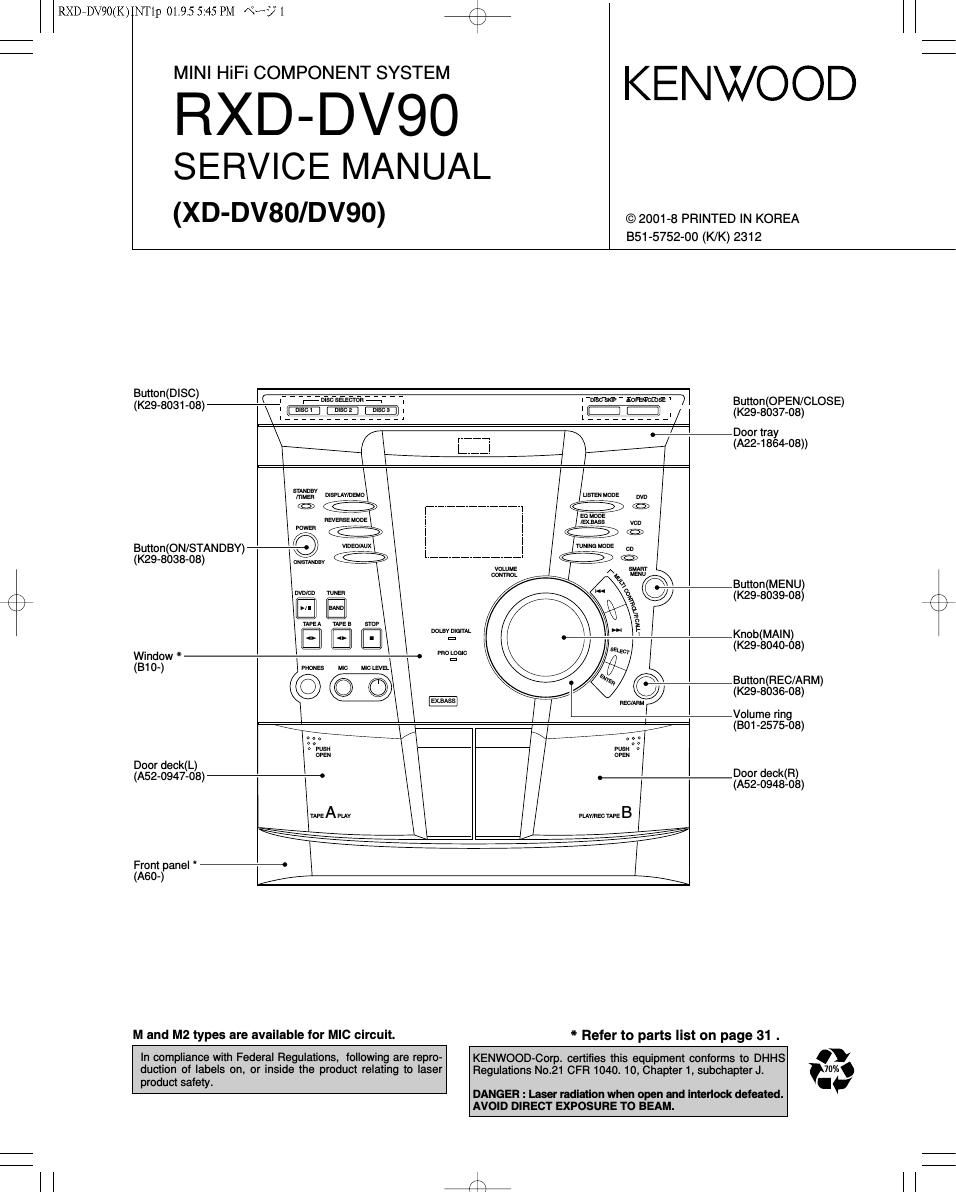

RXDeDV90(K)INT1p 01.9.5 5:45PM «Ks/7. /\

RXD-DV90

CONTENTS / ACCESSORIES / CAUTIONS

Contents

CONTENTS / ACCESSORIES / CAUTIONS SCHEMATIC DIAGRAM

EXTERNAL VIEW... EXPLODED VIEW .
ADJUSTMENT ........ PARTS LIST ............................. .31
WIRING DIAGRAM SPECIFICATIONS ...................................... Back cover
PC BOARD ................
Accessories

FM indoor antenna (1) Loop antenna (1) Video cord (1) *AC plug adaptor (1)

(T90-0881-08) (Tso-osaz-os) (E30-7235-08) (E03_0115_05)

$4»;

Use to adapt the plug on the

Remote control unit (1) Batteries (FIG/AA) (2) power cord I0 the Shape Of
(A70-1533-08): DV90K....YX the wall outlet. >
(A70-1534-08):DV90E ..... TE (Accessory only for regions

(A70-1535-08): DV90M....MM2 where use is necessary.)

r\
\/

System configurations

SYSTEM RECEIVER SPEAKER SPEAKER

XD-DV90 RXD-DV90 LS-N90V CRS-NQOV

XD-DV90(M2) RXD-DV90(M2) LS-N90V CRS-NQOV

XD-DV80 RXD-DV90 LS-N70V CRS-NQOV

XD-DV80(Y) RXD-DV90 LS-N70V-H CRS-NQOV

XD-DV80(M2) RXD-DV90(M2) LS-N7OV CRS-NSOV
Cautions

The marking of products using lasers Operation 10 reset

(Except for some areas) The microcomputer may fall into malfunction (impossibility to

operate, erroneous display, etc.) when the power cord is un-
plugged while power is ON or due to an external factor. In this

CLASSf case, execute the following procedure to reset the microcom-
LASER PRODUCT puter and return it to normal condition.

The marking is located on the rear panel and says that 53 the POWE kEV 0 0N- Then press the VIDEO/
the component uses laser beams that have been clas- AUX key while holding the TUNING MODE key
sified as Class 1. It means that the unit is utilizing laser down.

beams that are of a weaker class. There is no danger of _ _

hazardous radiation outside the unit. 0 Please note that resetting the microcomputer clears the

contents stored in and returns and to condition when it left
the factory.
