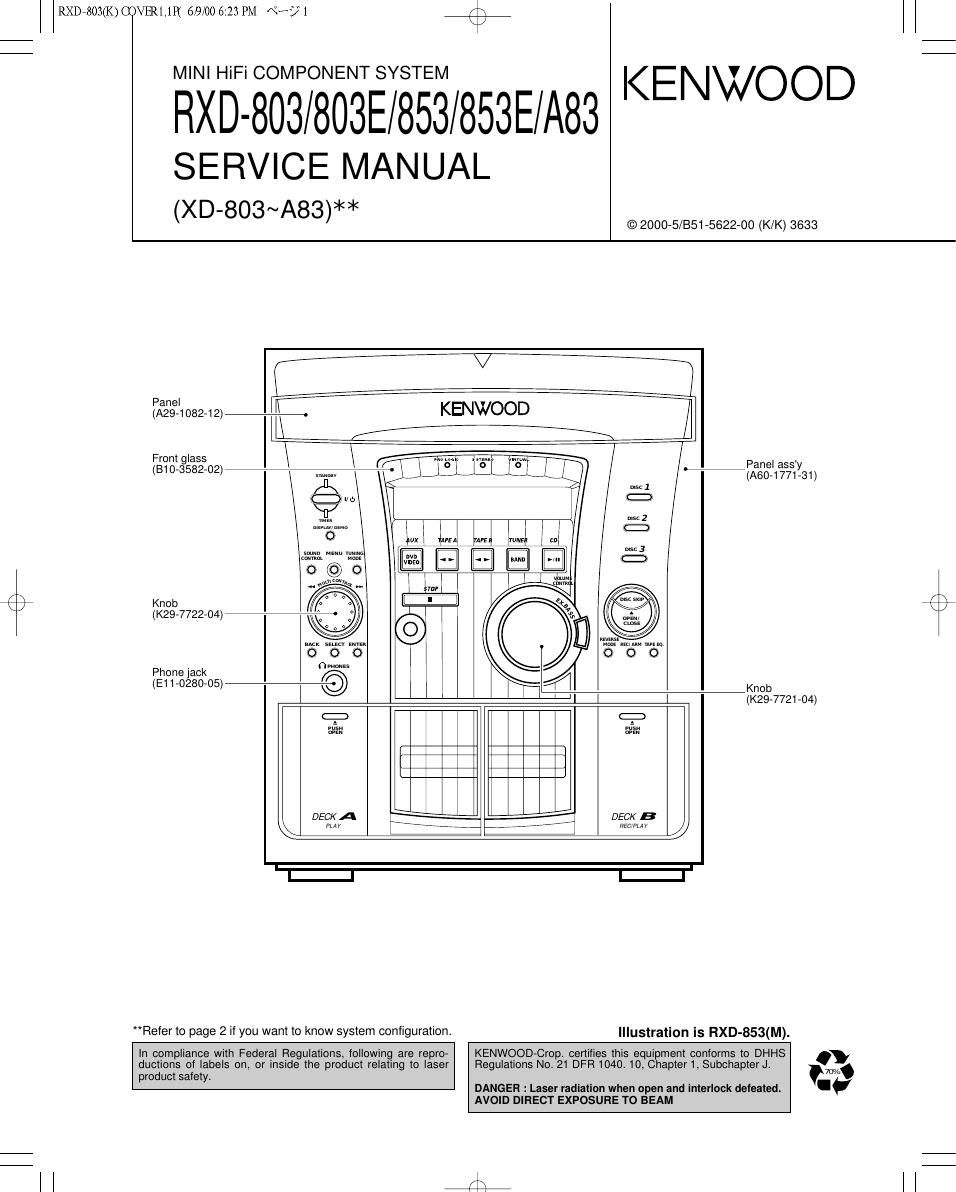

RXD7803(K) COVER1,1P( 6/9/00 6:23 PM \°-/1 /\
\/

El31§3§l§5§E7§T§§/853E/A83 KENWOOD

SERVICE MANUAL
(XD-803~A83)**

© 2000-5/851-5622-00 (K/K) 3633

-
Panel
(A29-1 082-12) -. KENWOOD
From glass Panel ass
Y
(810-3582-02) (A60-1771-31)
r \
Knob
\ / (K29-7722-04)
Phone jack 0mm
(EH-028005) l © $120; 7721 04)
g
l
DECKA ,\\* *!'* , DECK B
PLAY \*7777 7 7 77777777- REC/PLAY
I-l I-l
"Refer to page 2 it you want to know system configuration. Illustration is RXD-853(M).

in compliance with Federal Regulations, following are repro- KENWOOD-Crop. certifies this equipment conforms to DHHS .
ductions of labels on, or inside the product relating to laser Regulations No 21 DFR 1040. 10, Chapter 1, Subchapter J. 701/.
product safetyt a

DANGER : Laser radiation when open and interlock deleated. -~
AVOID DIRECT EXPOSURE TO BEAM

l l 4

Page 2

r\
\/

RXDE803(K) COVER1,1P( 6/9/00 6:23 PM \°-/ 2 K \

RXD-803/803E/853/853E/A83

CONTENTS / ACCESSORIES

Contents

CONTENTS / ACCESSORIES / CAUTIONS
EXTERNAL VIEW .........................................
DISASSEMBLY FOR REPAIR...
BLOCK DIAGRAM ...........
CIRCUIT DESCRIPTION. ..
ADJUSTMENT .......................................................... 1

ain'b'm'mm

PC BOARD ......................
SCHEMATIC DIAGRAM ..
EXPLODED VIEW
PARTS LIST ........
SPECIFICATIONS

Accessories
,

FM indoor antenna (1)
(T90-0836-05)

AM loop antenna (1)
(T90-0852-05)
(T90-0837-05)

Remote control unit (1)
(A70-1367-05): RC-853....KPMXY
(A70-1368-05): RC-853E....TEE2

Batteries (Re/AA) (2)

Battery cover A09-1151-08)

AC plug adaptor (1)
(EO3-0115-05)
V Use to adapt the plug on the power
"r cord to the shape of the wall outlet.
(Accessory only for regions where
use is necessary.)

Surround speaker system

Surround speaker (2)
Speaker cord (2)
Speaker stabilizer (8)

Center speaker (1)
Speaker cord (1)
Speaker stabilizer (4)

SYSTEM CONFIGURATION

SYSTEM MAIN UNIT DESTINATION SPEAKER SP CORD PARTS No. SPEAKER SP CORD PARTS No.
XD-803 RXD»803 E LS-N523 E30»5829-08 CRS-N503 E40-5542-05
XD-803E RXD»803E E2 LS-N523 E30-5829-O8 CRS-N503 E40-5542-05
XD-853 RXD-853 YMXTE LS-N573 E30»5829-08 CRS-N553 E40-5542-05
XD-853E RXD-853E E2 LS-N573 E30-5829-O8 CRS-N553 E40-5542-05
XD-853(M3) RXD»853 M LS-N573(M3) E30-5829-08 CRS-N553 E40-5542-O5
XD-A83 RXD-A83 KP LS-N573 E30-5829-08 CRS-N553 E40-5542-05
Cautions

Operation to reset

The microcomputer may fall into malfunction (impossibility
to operate, erroneous display, etc.) when the power cord is
unplugged while power is ON or due to an external factor.
In this case, execute the following procedure to reset the
microcomputer and return it to normal condition.

Unplug the power cord from the power outlet then,
while holding the ENTER key depressed, plug the

power cord again.
ENTER

0 Please note that resetting the microcomputer clears the
stored contents and returns to the factory set condition.

(Main unit only)
