Kenwood RXD 652 W Service Manual

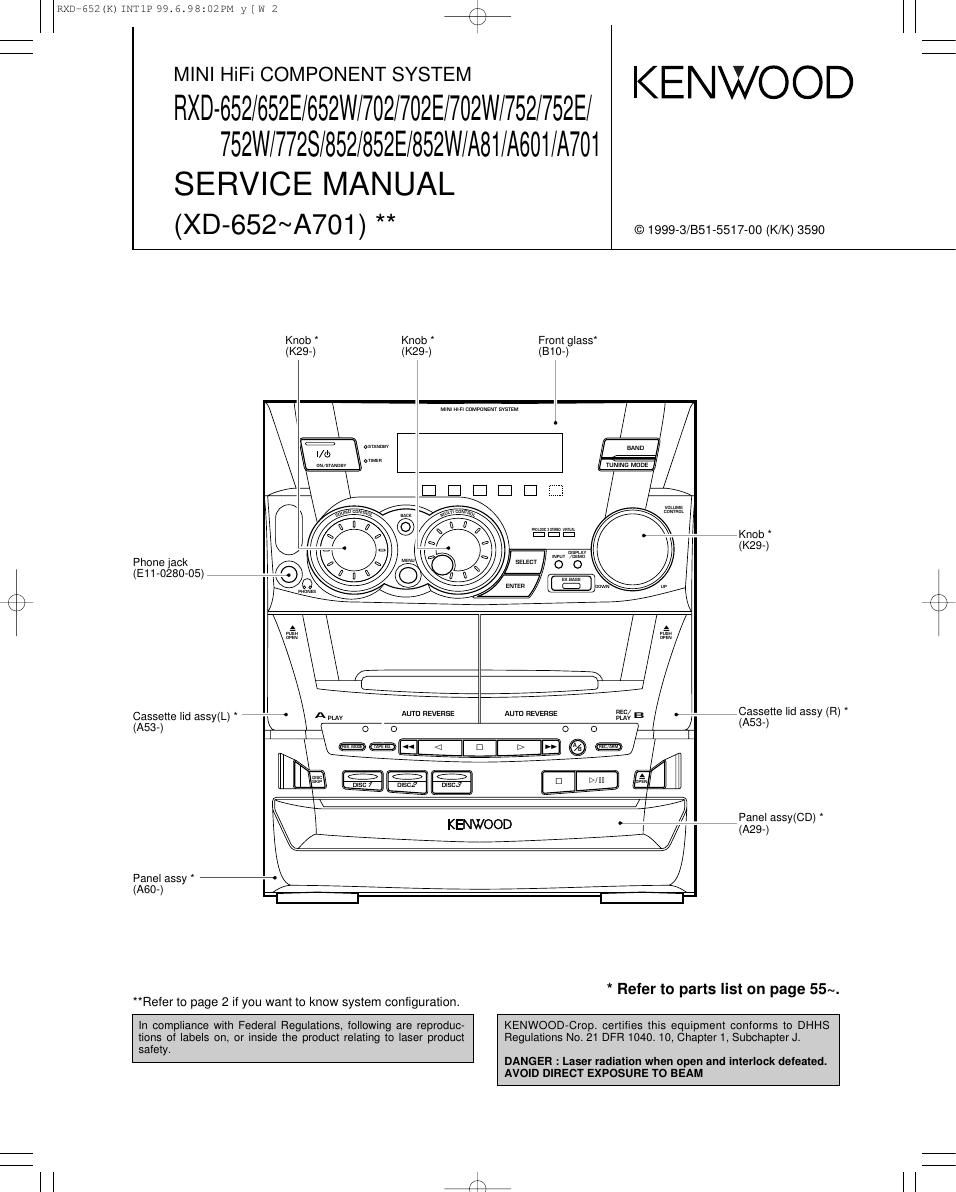

Page 1

RXDi652(K)INT1P99.6t98:02PM y[w 2 /\

MINI HiFi COMPONENT SYSTEM V
RXD-652/652E/652W/702/702E/702W/752/752E/ KENWOOD

752W/7728/852/852E/852W/A81/A601/A701
SERVICE MANUAL
(XD'652~A701 ) ** © 1999-3/851-5517-00 (K/K) 3590

Knob Knob * Front glass

(K29-) (K29-) (B10-)

Knob
(K29-)
Phone iack
(E11-0280-05)
CIL ,
K / \
Cassette lid assy( ) " % .7Cassette lid assy ( )
(A53-) (A53-)
Panel assy(CD)
(A29-)
Panel assy -¢
(A60-)

|Ii-I I-_l_

* Refer to parts list on page 55~.
Refer to page 2 if you want to know system configuration.

in compliance with Federal Regulations, following are reproduc- KENWOOD-Crop. certifies this equipment conforms to DHHS
tions of labels on, or inside the product relating to laser product Regulations No. 21 DFR 1040. 10, Chapter 1, Subchapter J.
safety.

DANGER : Laser radiation when open and interlock defeated.
AVOID DIRECT EXPOSURE TO BEAM

Page 53

RXDF652(K) INT1P99.6t98202PM y [w 4

are
RXD-652/702/752/772S/852/A8i/A601/A701

SPECIFICATIONS

Main unit

(XD-7...series)

[Amplifier section ]

Rated output power during STEREO operation
FRONT (1 kHz, 1.0 % T.H.D., 6 9)

Two channel driven ................................. 80 W + 80 W
Effective output power during STEREO operation

FRONT (1 kHz, 10 % T.H.D., 6 9)

One channel driven ............................. 100 W + 100 W
Effective output power during SUPER WOOFER opera-
tion

FRONT (1 kHz, 10 % T.H.D., 6 Q)
One channel driven.... ..... 100 W +100 W
SUPER WOOFER (60 Hz, 10 /o T.H.D., 6 s2)

One channel driven ............................. 100 W + 100 W
Signal to noise ratio
MD/DVD INPUT .................................... 90 dB (IHF' 66)
Input sensitivity / inpedance
MD/DVD INPUT ................................... 380 mV / 47 k9
Output level / impedance
MD REC OUTPUT (CD, OdB). . 1.0V/10kQ
[ Tuner section ]
FM tuner section
Tuning frequency range ............... 87.5 MHz ~ 108 MHz
(For Russia) .............................. 65.0 MHz ~ 74.0 MHz

AM (MW) Tuner section
Tuning frequency range
(For U.K., Europe and Russia) 531 kHz ~ 1,602 kHz
(Other countories)
9 kHz step .....
10 kHz step

531 kHz ~1,602 kHz
.. 530 kHz ~ 1,610 kHz

LW Tuner section (For UK. and Russia)
Tuning frequency range .................. 153 kHz ~ 279 kHz

SW Tuner section (XD-772S only)
Tuning frequency range ................ 5.9 MHz ~ 17.9 MHz

[ Cassette deck section ]
Track ......................................... 4-track, 2-channel stereo
Recording system .................................... AC bias system
(Frequency: 105 kHz)

Heads

A deck : Playback head ..................
B deck : Playback/ recording head ..
Erasing head ................................... 1
Fast winding time .............. Approx. 115 seconds
(0-60 tape)

[ CD player section ]

Laser .................................. Semiconductor laser
Wow & Flutter .. Less than unmeasurable Limit
Digital output (Optical) ..

.,.- 15 dBm ~ -21dBm
(Wave length 660 nm)

[ General]
Power consumption
Dimensions
H : 330 mm
D : 386 mm
Weight (net) .......................................................... 11.0 kg

1.KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be
03% changed without notice.

2.Sufficient performance may not be possible at very low temperatures (0°C or less).

69
