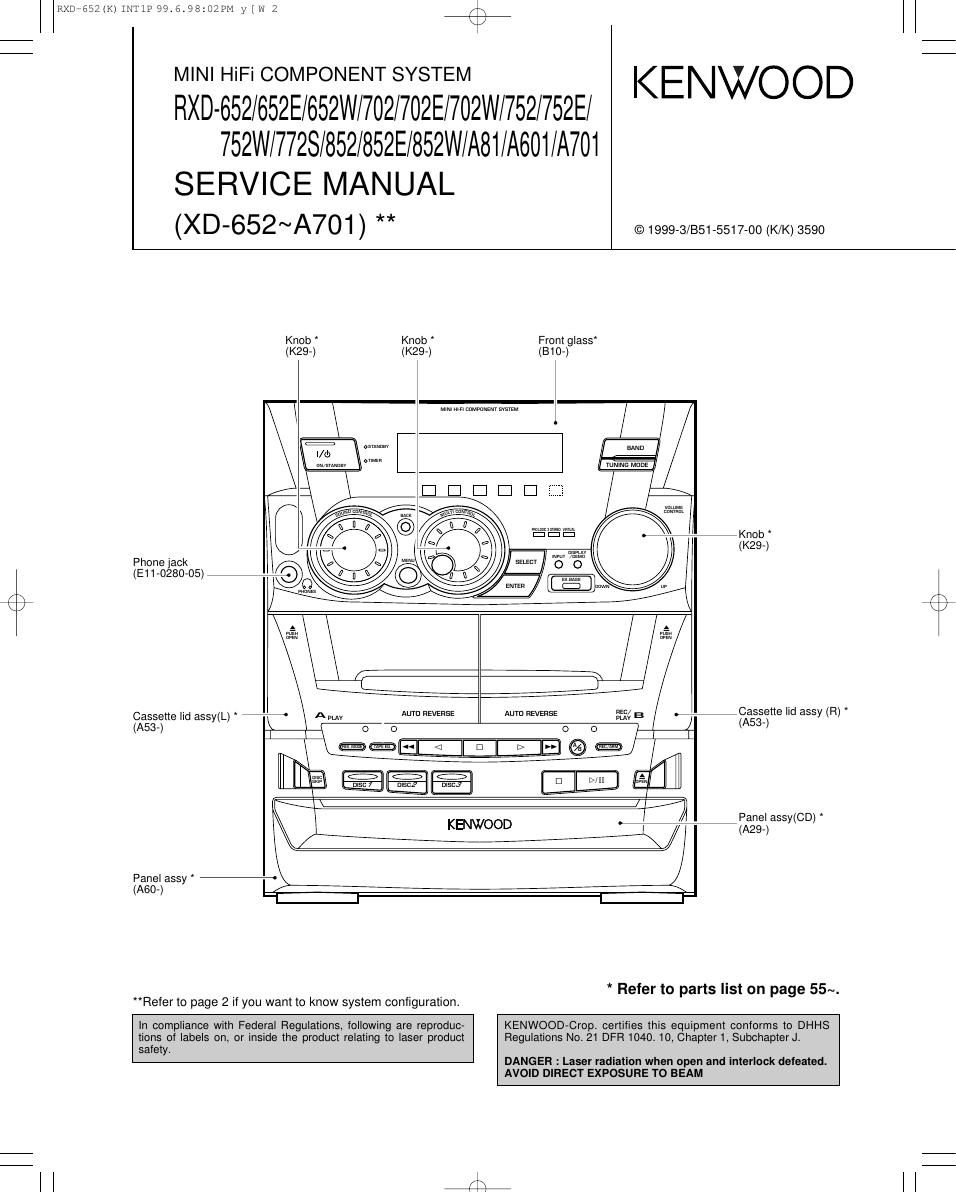

Page 1
RXDi652(K)INT1P99.6t98:02PM y[w 2 /\
MINI HiFi COMPONENT SYSTEM V
RXD-652/652E/652W/702/702E/702W/752/752E/ KENWOOD
752W/7728/852/852E/852W/A81/A601/A701
SERVICE MANUAL
(XD'652~A701 ) ** © 1999-3/851-5517-00 (K/K) 3590
Knob Knob * Front glass
(K29-) (K29-) (B10-)
Knob
(K29-)
Phone iack
(E11-0280-05)
CIL ,
K / \
Cassette lid assy( ) " % .7Cassette lid assy ( )
(A53-) (A53-)
Panel assy(CD)
(A29-)
Panel assy -¢
(A60-)
|Ii-I I-_l_
* Refer to parts list on page 55~.
Refer to page 2 if you want to know system configuration.
in compliance with Federal Regulations, following are reproduc- KENWOOD-Crop. certifies this equipment conforms to DHHS
tions of labels on, or inside the product relating to laser product Regulations No. 21 DFR 1040. 10, Chapter 1, Subchapter J.
safety.
DANGER : Laser radiation when open and interlock defeated.
AVOID DIRECT EXPOSURE TO BEAM
