RXD*402(E) INT1P99.6.97:25PM y [w 1

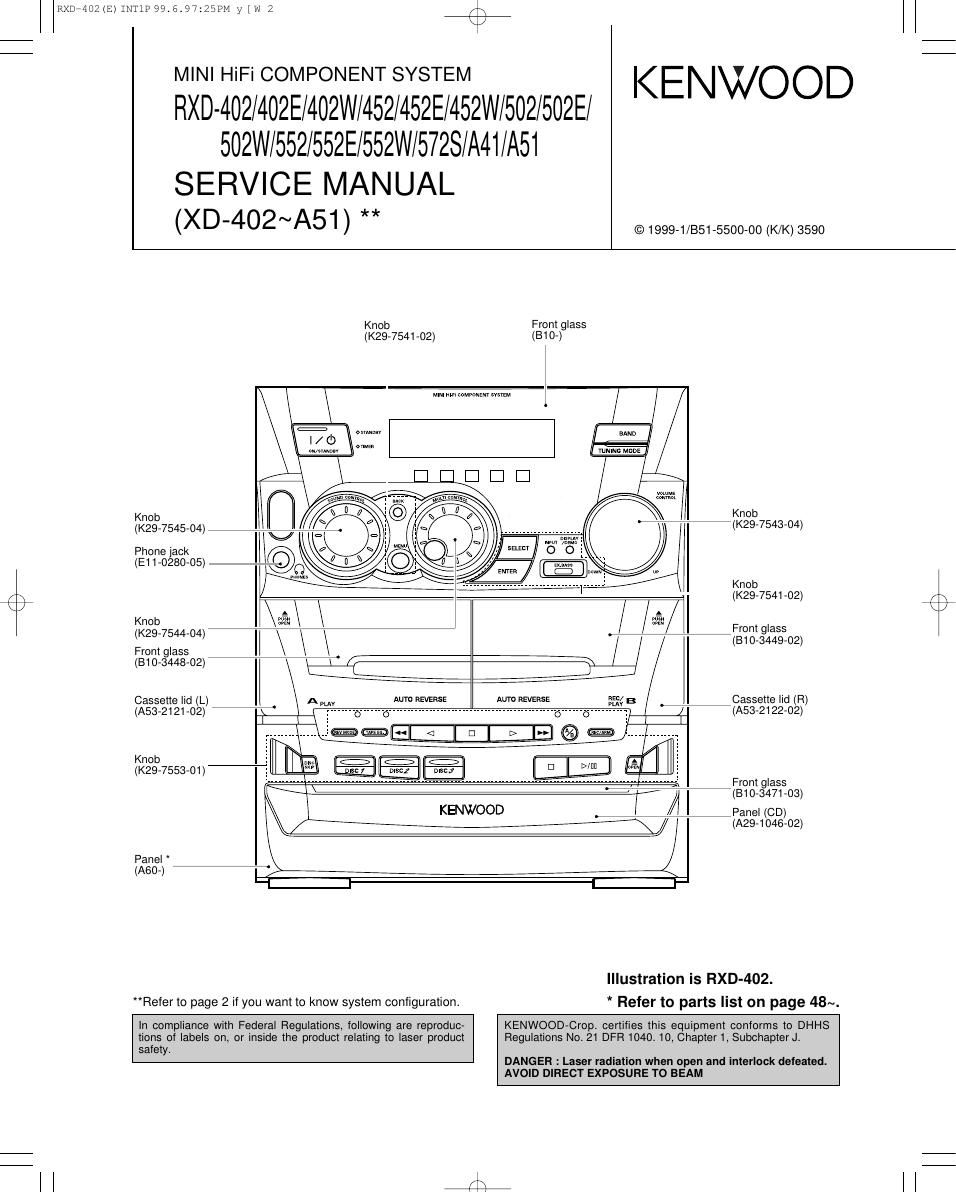

RXD-402/452/502/552/5728/A4I/A51

SPECIFICATIONS

Main unit

[Amplifier section]

(XD Rated power output (For U.S.A. and Canada)

80 watts per channel minimum RMS, both channels driven,
at 6 52 form 40 Hz to 15 kHz with no more than 0.9 % total
harmonic distortion. (FTC)

(XD-A41)
Rated power output (For U.S.A. and Canada)

50 watts per channel minimum RMS, both channels driven,
at 6 9 form 40 Hz to 15 kHz with no more than 0.9 % total

harmonic distortion. (FTC)

Signal to noise ratio

MD/DVD INPUT ........................................... 90 dB (IHF' 66)
Input sensitivity / inpedance
MD/DVD INPUT .......................... (XD-A51) 270 mV / 47 k9

(XD-A41) 300 mV / 47 k9
Output level / impedance
SUPER WOOFER PREOUT .

.. (XD-A51) 1.3 V / 620 Q
(XD-A41) 1.0 V / 620 9

[Tuner section ]
FM tuner section
Tuning lrequency range ........................ 87.5 MHz ~ 108.0 MHz

AM Tuner section
Tuning frequency range ............................. 530 kHz ~ 1,700 kHz

[ Cassette deck section ]
Track ..................
Recording system

. 4-track, 2-channel stereo
............ AC bias system
(Frequency: 105 kHz)

Heads
A deckPlayback head ...............
B deckPIayback/ recording head .

Erasing head

Fast winding time

I (0-60 tape)

[ CD player section ]

Laser ............. Semiconductor laser
Wow 8. Flutter . Less than unmeasurable Limit
[ General ]
Power consumption .......................................... (XD-A51) 200 W
(XD-A41) 150 w

Dimensions ........................................ W : 280 mm (11")

H : 330 mm (13")

D : 390 mm (15-3/8)
Weight (net) ......................................... (XD-A51) 9.9 kg (21.8 lb)

(XD-A41) 9.2 kg (20.2 lb)

1.KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be
@ changed without notice.

2.Sufficient performance may not be possible at very low temperatures (0°C or less).

Note:

Component and circuit are subject to modification to insure best operation under diflering local conditions. This manual is based on General mar-
ket(M) standard, and provides information on regional circuit modification through use of alternate schematic diagrams, and information on

regional component variations through use of parts list.
