Page 1

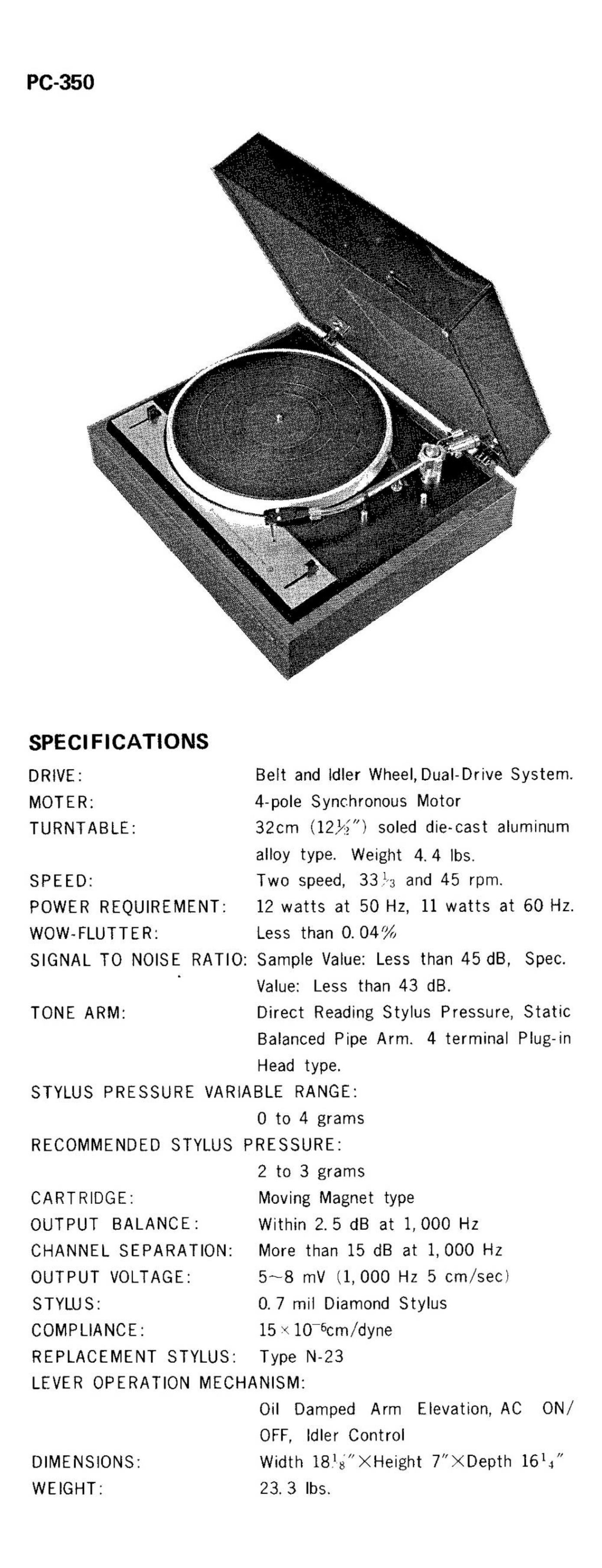

PC-350
SPECIFICATIONS
DRIVE:
MOTER:
TURNTABLE:
SPEED:
POWER REQUIREMENT:
WOW-FLUTTER:
SIGNAL TO NOISE RATIO:
TONE ARM:
Belt and ldler Whee|,Dual-Drive System.
4-pole Synchronous Motor
III
32cm (12,14; ) soled die-cast aluminum
alloy type. Weight 4.4 lbs.
Two speed, 33 ,1/3 and 45 rpm.
12 watts at 50 Hz, 11 watts at 60 Hz.
Less than 0. 04%
Sample Value: Less than 45 dB, Spec.
Value: Less than 43 dB.
Direct Reading Stylus Pressure, Static
Balanced Pipe Arm. 4 terminal Plug-in
Head type.
STYLUS PRESSURE VARIABLE RANGE:
0 to 4 grams
RECOMMENDED STYLUS PRESSURE:
CARTRIDGE:
OUTPUT BALANCE:
CHANNEL SEPARATION:
OUTPUT VOLTAGE:
STYLUS:
COMPLIANCE:
REPLACEMENT STYLUS:
2 to 3 grams
Moving Magnet type
Within 2.5 dB at 1,000 Hz
More than 15 dB at 1, 000 Hz
5~8 mV (1,000 Hz 5 cm/secl
0.7 mil Diamond Stylus
15 X10_6cm/dyne
Type N-23
LEVER OPERATION MECHANISM:
DIMENSIONS:
WEIGHT:
Oil Damped Arm Elevation, AC ON/
OFF, Idler Control
Width 1818'>
