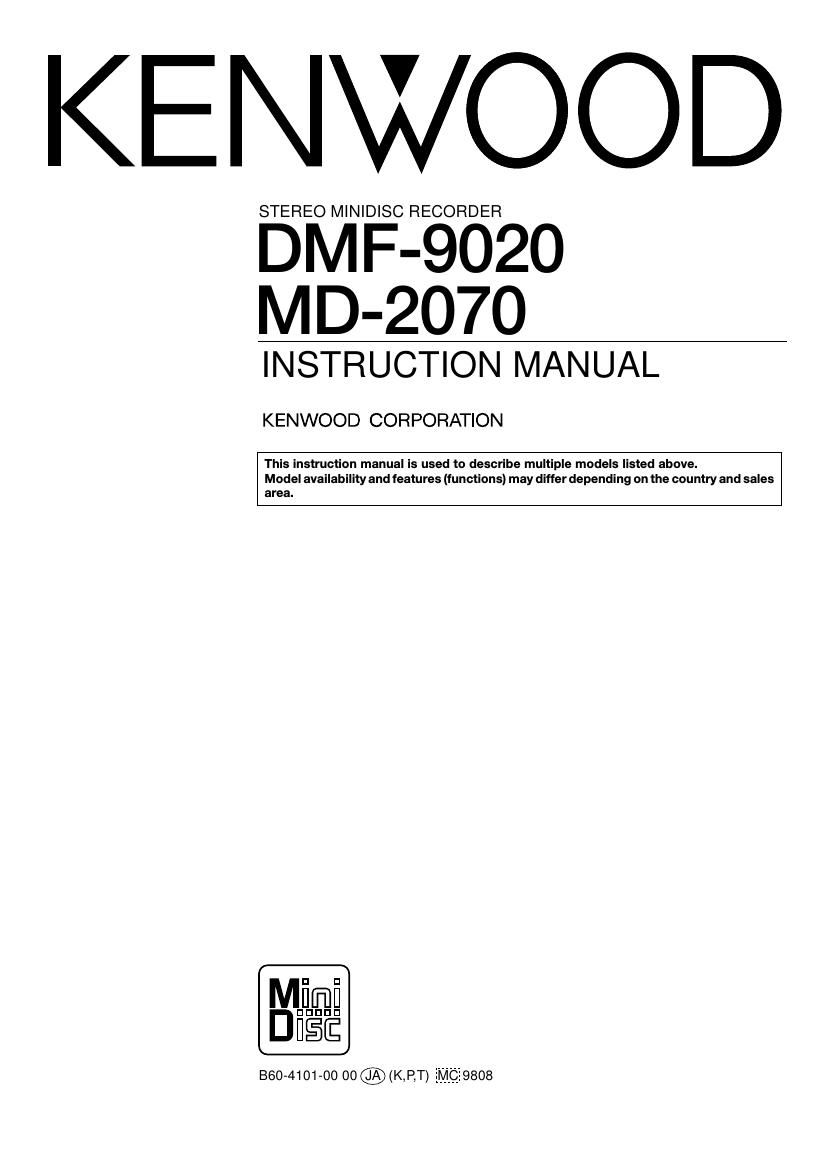

Kenwood MD 2070 Owners Manual
This is the 56 pages manual for Kenwood MD 2070 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood MD 2070 Owners Manual (Ocr-read)
Page 1
DMF-9020/MD-2070 (En) 2 RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION Introduction Before applying power The marking is located on the rear panel and says that the component uses laser beams that have been classified as Class 1. It means that the unit is utilizing laser beams that are of a weaker class. There is no danger of hazardous radiation outside the unit. CLASS 1 LASER PRODUCT The marking of products using lasers (Except for some areas) WARNING :TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. Safety precautions Factory fitted moulded mains plug 1. The mains plug contains a fuse. For replacement, use only a 13- Amp ASTA-approved (BS1362) fuse. 2. The fuse cover must be refitted when replacing the fuse in the moulded plug. 3. Do not cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adapter, or consult your dealer.If nonetheless the mains plug is cut off, remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. IMPORTANT :The wires in the mains lead are coloured in accordance with the following code : Blue : Neutral Brown : Live Do not connect those leads to the earth terminal of a three - pin plug. For the United Kingdom CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED ÒDANGEROUS VOLTAGEÓ WITHIN THE PRODUCTÕS ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS. THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE. Caution : Read this section carefully to ensure safe operation. Units are designed for operation as follows. U.S.A. and Canada ................................................................................................................................................................ AC 120 V only U.K. ........................................................................................................................................................................................... AC 230 V only REQUIREMENT BY NEDERLAND GAZETTE Batteries are supplied with this product. When they empty, you should not throw away. Instead, hand them in as small chemical waste.
Page 2
DMF-9020/MD-2070 (En) 3 Introduction .......................................................................................................................................... 2 Before applying power ..................................................................................................................... 2 Safety precautions ............................................................................................................................ 2 Contents ........................................................................................................................................... 3 Accessories ...................................................................................................................................... 4 Special feature .................................................................................................................................. 5 IMPORTANT SAFEGUARDS ............................................................................................................... 6 Information that you should know .................................................................................................... 8 Safety Precautions ............................................................................................................................ 8 Maintenance ..................................................................................................................................... 9 System connections .......................................................................................................................... 10 Names and functions of parts .......................................................................................................... 12 Display/Main unit ............................................................................................................................ 12 Remote control unit ........................................................................................................................ 14 Operation of remote control unit ..................................................................................................... 15 Playback of Mini Disc ........................................................................................................................ 16 Playing tracks in order from track No. 1 ......................................................................................... 16 Searching a desired track by its title (TITLE SEARCH) ................................................................... 17 Playback from desired track ........................................................................................................... 18 Random playback ........................................................................................................................... 18 Programming ..................................................................................................................................... 20 Programming tracks in a desired order ..........................................................................................20 Repeated playback ......................................................................................................................... 22 Recording-related keys ..................................................................................................................... 23 AUTO/MANU. key .......................................................................................................................... 23 MONITOR key ................................................................................................................................ 23 REC MODE key .............................................................................................................................. 23 Automatically starting recording when the track starts (SOUND SYNCHRO REC) ....................... 25 Automatically pausing recording when the track ends (REC AUTO PAUSE) ................................. 25 Starting recording from the sound before the current sound (MEMORY REC) ............................ 25 Recording (ANALOG input) .............................................................................................................. 26 ANALOG recording ......................................................................................................................... 26 Recording (DIGITAL input) ................................................................................................................ 28 DIGITAL recording .......................................................................................................................... 28 Synchro recording with CD playback ..............................................................................................30 DIGITAL recording and SCMS ........................................................................................................ 30 Editing ................................................................................................................................................. 31 Selecting the editing function type ................................................................................................. 31 Moving the track being played (TRACK MOVE) ............................................................................. 32 Moving several tracks at a time (QUICK MOVE) ............................................................................ 34 Dividing the track being played (TRACK DIVIDE) ........................................................................... 36 Combining the track being played (TRACK COMBINE) ................................................................. 38 Erasing the track being played (TRACK ERASE) ............................................................................ 40 Erasing one or more track at a time (QUICK ERASE) .................................................................... 42 Editing titles .................................................................................................................................... 44 CD text display and copy .................................................................................................................. 48 Changing the displayed contents .................................................................................................... 49 TIME DISPLAY key ......................................................................................................................... 49 METER key ..................................................................................................................................... 49 Timer operations ............................................................................................................................... 50 Timer playback, timer recording ..................................................................................................... 50 In case of difficulty ............................................................................................................................ 51 Specifications ..................................................................................................................................... 54 Contents Introduction Caution : Read the pages marked carefully to ensure safe operation.
Page 18
DMF-9020/MD-2070 (En) 19 ÖThe track in the direction of the pressed key is skipped, and the selected track will be played from the beginning. ÖWhen the 4 key is pressed once during playback, the track being played will be played from the beginning. ÖTo return to the beginning of the previous track to the current track, press the 4 key in less than about 2 seconds after the restart of the current track. To skip forwardTo skip forward To skip backward To skip backward Searching in a track Skipping tracks Reverse search Reverse searchForward search Forward search To pause playback ÖEach press pauses and plays the MD alternately.ÖPlayback restarts from the position with which the key is released or the jog dial operation is terminated. (If the key was pressed in the pause mode, the unit returns to the pause mode at that position.) ÖSound is output when using forward or reverse search during playback. ÖIf forward or reverse search is started during play-pause, the disc can be searched at a high speed but sound is not output. ÖWhen the reverse search is started during the program mode and the beginning of the current track is attained, it will be played from the beginning. ) To stop playback Ejecting the disc Mini Disc has been ejected. AUTO PAUSE key (Remote control unit only) When the AUTO PAUSE key is pressed, playback pauses after every track. This function is convenient for learning a foreign language or when time is required after each track. ÖPress the 3 key to resume playback. ÖWhen this function is not required, be sure to press the AUTO PAUSE key so that the ÒA. PAUSEÓ indicator is extinguished. ÒA. PAUSEÓ lights up Playback of Mini Disc N ODIS C EJECT OVER ( -dB) A . PAUSE RL 0020 :00 ¥ 15 9 12 7 51 3 40 30 21180 SEARCH PGM MONITORANALOG 32kHz 2 13 48kHz 44.1kHz DIGITAL 4 ¢ £ Main unit Remote control unit Main unit Remote control unit ªª/CUR.L CUR.R/ ££ AUTO PAUSE Main unit Remote control unit Main unit Remote control unit Main unit Remote control unit 0 8 7 73 4¢ U P DOWN PUSH SETJOG DIAL 1Á SEARCH 0 8¦
