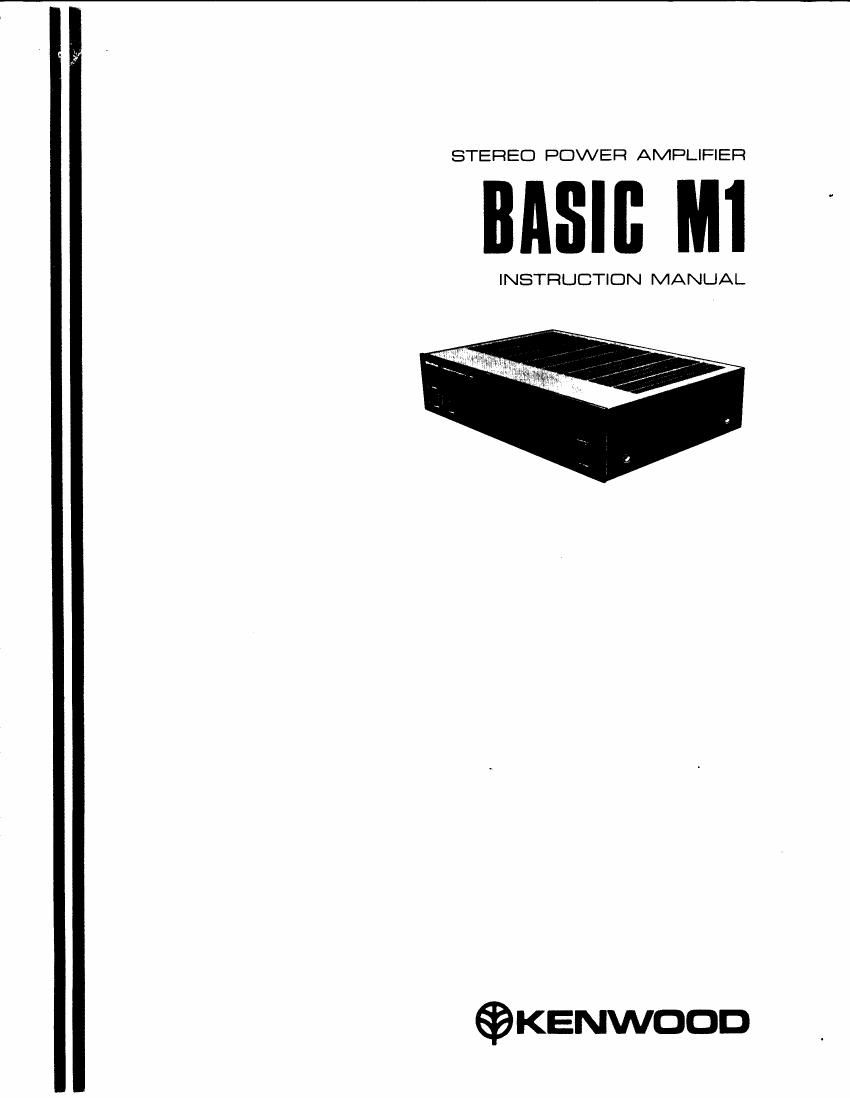

Kenwood M 1 Owners Manual

Page 2

Dear audio fan

The purpose of this manual is to acquaint you with the operating features of your new amplifier, Vou
will notice that in every detail of planning, engineering, styling, operating convenience, and adapa
tability, we have sought to anticipate your needs and deSIres.

We suggest that you read this manual carefully. Knowmg how to set up your amplifier to the best
advantage will enhance your listening pleasure right from the start. You Will also become aware of
the ease with which you can adjust your amplifier to meet your speCIal requirements.

Contents

Before operation .............................
System connections ....................
Controls, indicators and connectors
In case of difficulty ..............
Block diagram ...... .
Specmcations ..................................................

\i'xioacvlso

For your records

Record the serial number, found on the back of the unit,
in the spaces designated on the warranty card, and in
the space prowded below. Refer to the model and serial
numbers whenever you call upon your Kenwood dealer
for information or service on this product.

Model BASlC M1 Serial number

Unpacking

Unpack the unit carefully and make sure that all ac-
cessories and cables are put aside so they Will not be
lost Examine the unit for any posSibility of shipping
damage if your unit is damaged or fails to operate,
notify your dealer immediately. If your unit was shipped
to you directly, notify the shipping company without
delay Only the consignee (the person or company
receiving the unit) can file a claim against the carrier for
shipping damage We recommend that you retain the
original carton and packing materials for use should
you transport or ship the unit in the future,

WARNING:

TO PREVENT FlRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT!

U.S.A. and Canada

Units shipped to the U.S.A. and Canada are
designed for operation on 120 volts AC only.
These units are not equipped With AC Voltage
Selector switch and the discussmn of such a
switch that follows should be disregarded.

All other countries

Units shipped to countries other than the U.S.A.
and Canada are equipped with an AC Voltage
Selector SWitch on the rear panel.

Refer to the following paragraph for the proper
setting of this switch.

AC voltage selection

This unit operates on 120 volts or 220 volts AC.The
AC Voltage Selector Switch on the rear panel is set to
the voltage that prevails in the area to which the unit is
shipped. Before connecting the power cord to your AC
outlet, make sure that the setting position of this switch
matches your line voltage. If not, it must be set to your
voltage in accordance With the following direction,
Note:

Our warranty does not cover damage caused by excessive line
voltage due to improper setting 01 the AC Voltage Selector Switch

120V~< >220V~ 1ZOV~< >220VV

Switch lever

©=©

This shows SWitch
level Is locked in
zzovwosirion

This shows switch
lever is locked in
120VNposition,

Move switch lever to match your
line voltage with a small screw
driver or other pointed tool.

AC voltage selector switch
