Kenwood LSN 70 VS Service Manual
This is the 2 pages manual for Kenwood LSN 70 VS Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood LSN 70 VS Service Manual (Ocr-read)

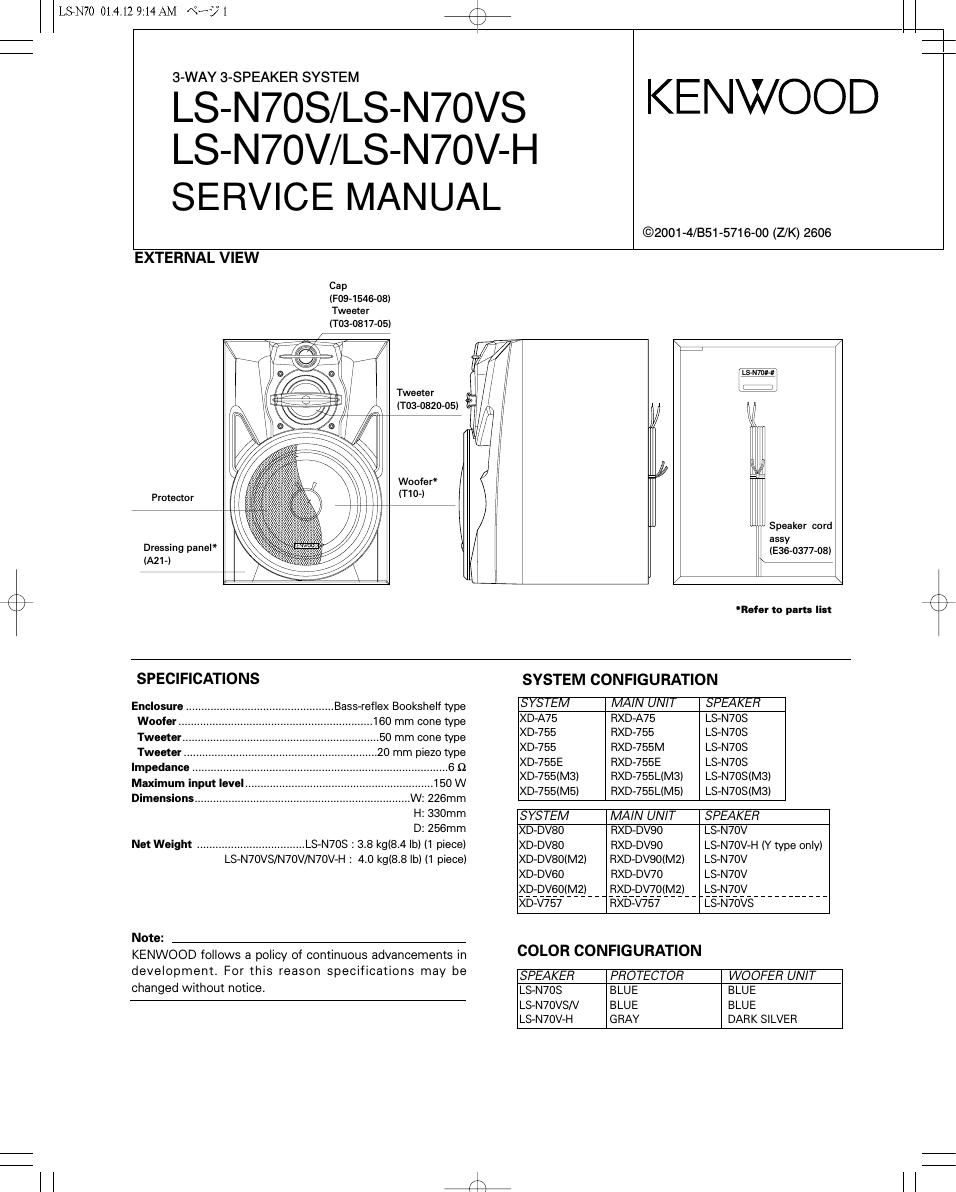

Page 2
r\
\/
LSN70 01.4.129:14AM \°*/2
LS-N7OS/LS-N7OVS/LS-N7OV/LS-N7OV-H
DIVIDING NETWORK UNIT
C1
BLU
L< +
1 81150
E SP2
BLK
<< ; #. 205 FASTON
<< ; II. 110 FASTON
PARTS LIST
* New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts Na. ne sont pas fournis.
Teile ohne Parts No. warden nicht geliefert.
New . . Desti-
Ref. No. Address Parts Parts No. Description nation Model
LS»N7OS/N70VS/N7OV/N7OV-H
- * AZ1-3406»08 DRESSING PANEL ASSY 708/70V/70VS
- * AZ1-3408-08 DRESSING PANEL ASSY 70V-H
C1 C90-5080-05 NP-ELEC 1.8UF 50WV
- * E36-0377-08 SPEAKER CORD ASSY
- * F094 546-08 CAP
- * H10-8225-08 POLYSTYRENE FOAMED FIXTURE MM3EG|
- * H10-8226-08 POLYSTYRENE FOAMED FIXTURE MM3EG|
- * H10-8235-08 POLYSTYRENE FOAMED FIXTURE KPXY
- * H10-8236-08 POLYSTYRENE FOAMED FIXTURE KPXY
- H214328-08 PROTECTION SHEET MM3EG|
- H25-2278-08 PROTECTION BAG KPXY
- * H514 64608 ITEM CARTON CASE MM3 70$
- * H514 647»08 ITEM CARTON CASE EG 70$
- * H51-1648»08 ITEM CARTON CASE MM3 70V
- * H514 64908 ITEM CARTON CASE EG 70V
- * H514 652-08 ITEM CARTON CASE Ml 70VS
SP1 * T10-0990-05 WOOFER 70$
SP1 * T10-0991-05 WOOFER 70V/70VS
SP1 * T104118-05 WOOFER 70V-H
SP2 * T03-0820-05 TWEETER
SP3 * T03-0817-05 TWEETER
L: Scandinavia K: USA P: Canada R: Mexico C: China I: Malaysia
Y: PXlFor East Hawaii) T: England E: Europe G: Germany V: ChinalShanghai)
Y: AAFESlEurope) X: Auslralia 0: Russia H: Korea M: Other Areas
A indicates safety critical components.
