Page 2
r\
\/
LSN70 01.4.129:14AM \°*/2

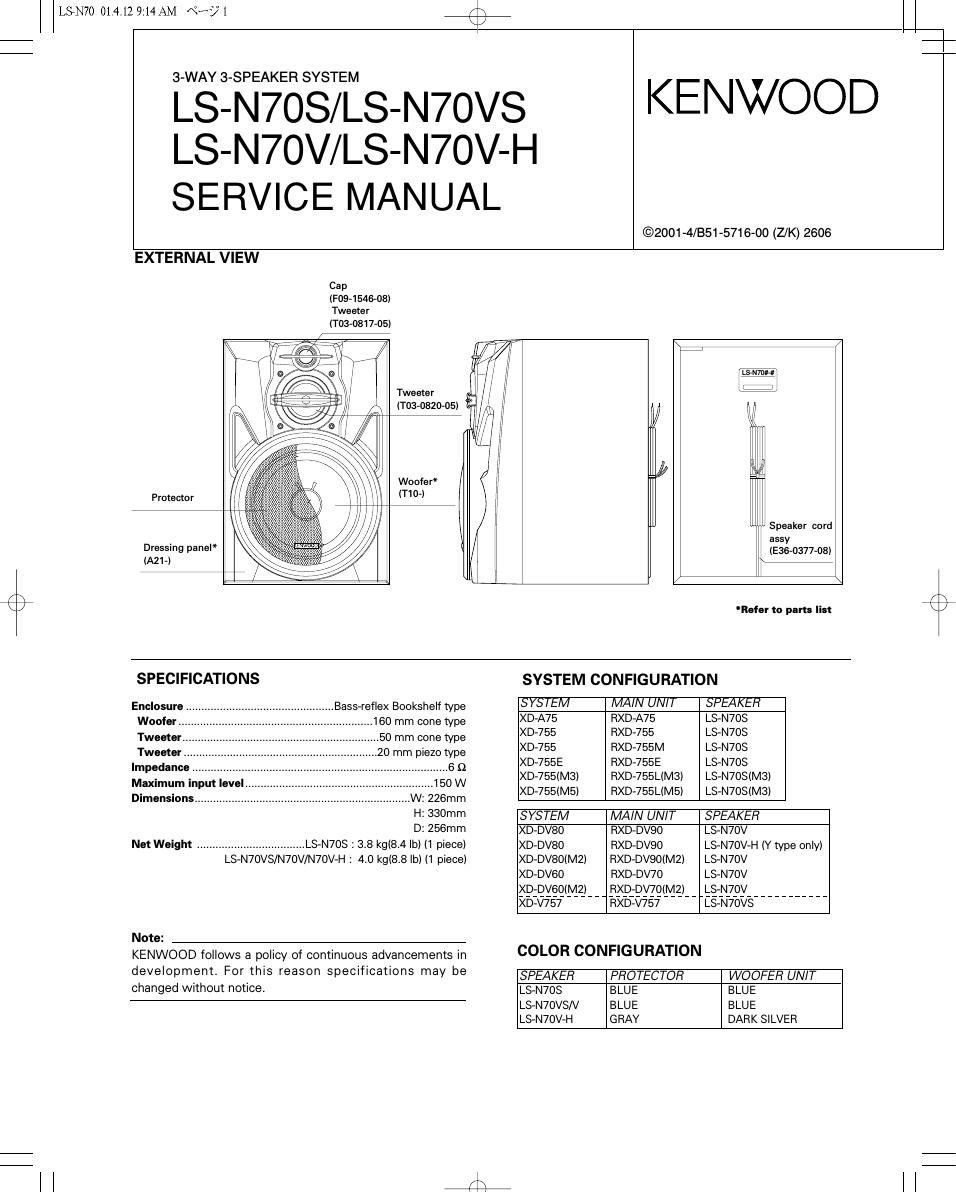

LS-N7OS/LS-N7OVS/LS-N7OV/LS-N7OV-H
DIVIDING NETWORK UNIT
C1
BLU
L< +
1 81150
E SP2
BLK
<< ; #. 205 FASTON
<< ; II. 110 FASTON
PARTS LIST
* New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts Na. ne sont pas fournis.
Teile ohne Parts No. warden nicht geliefert.
New . . Desti-
Ref. No. Address Parts Parts No. Description nation Model
LS»N7OS/N70VS/N7OV/N7OV-H
- * AZ1-3406»08 DRESSING PANEL ASSY 708/70V/70VS
- * AZ1-3408-08 DRESSING PANEL ASSY 70V-H
C1 C90-5080-05 NP-ELEC 1.8UF 50WV
- * E36-0377-08 SPEAKER CORD ASSY
- * F094 546-08 CAP
- * H10-8225-08 POLYSTYRENE FOAMED FIXTURE MM3EG|
- * H10-8226-08 POLYSTYRENE FOAMED FIXTURE MM3EG|
- * H10-8235-08 POLYSTYRENE FOAMED FIXTURE KPXY
- * H10-8236-08 POLYSTYRENE FOAMED FIXTURE KPXY
- H214328-08 PROTECTION SHEET MM3EG|
- H25-2278-08 PROTECTION BAG KPXY
- * H514 64608 ITEM CARTON CASE MM3 70$
- * H514 647»08 ITEM CARTON CASE EG 70$
- * H51-1648»08 ITEM CARTON CASE MM3 70V
- * H514 64908 ITEM CARTON CASE EG 70V
- * H514 652-08 ITEM CARTON CASE Ml 70VS
SP1 * T10-0990-05 WOOFER 70$
SP1 * T10-0991-05 WOOFER 70V/70VS
SP1 * T104118-05 WOOFER 70V-H
SP2 * T03-0820-05 TWEETER
SP3 * T03-0817-05 TWEETER
L: Scandinavia K: USA P: Canada R: Mexico C: China I: Malaysia
Y: PXlFor East Hawaii) T: England E: Europe G: Germany V: ChinalShanghai)
Y: AAFESlEurope) X: Auslralia 0: Russia H: Korea M: Other Areas
A indicates safety critical components.
