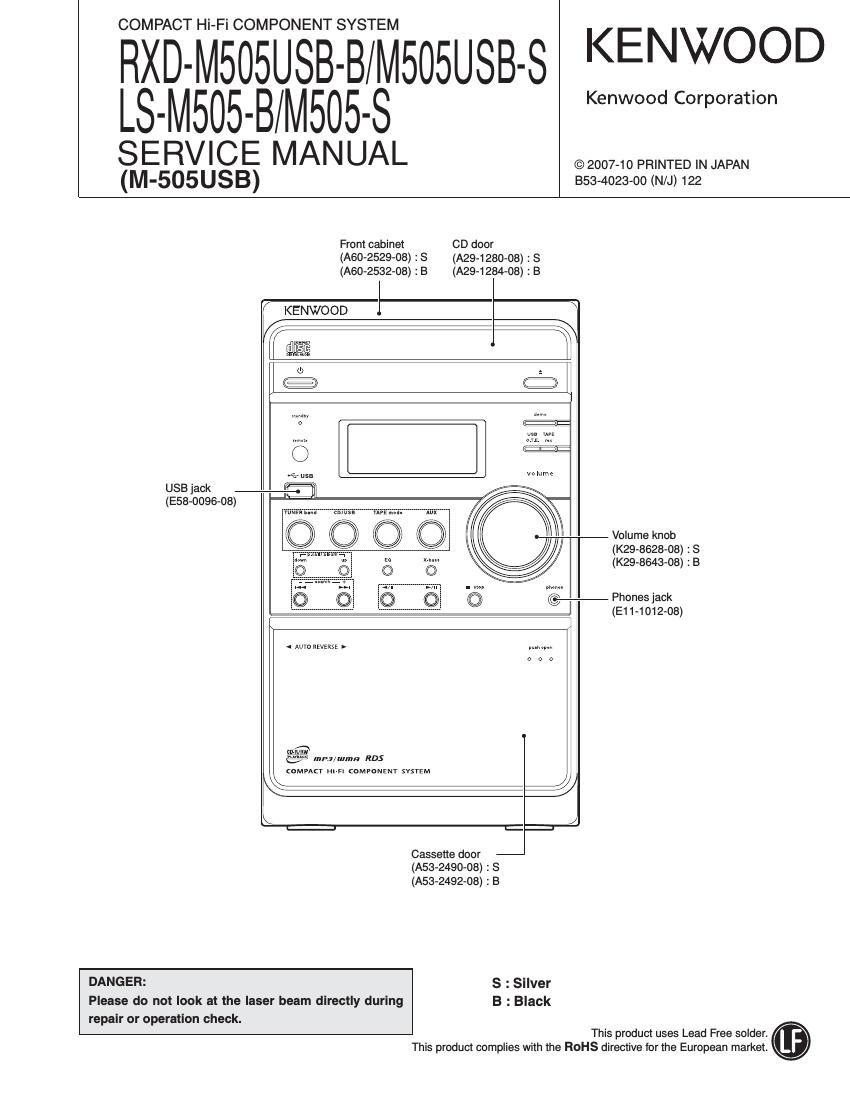

Kenwood LSM 505 B Service Manual

Page 2

RXD-MSOSUSB/LS-MSOS

ACCESSORIES I CAUTIONS

Accessories
AM loop antenna (1) FM ANT Wire (1) Remote control unit (1) Batteries (RB/AA) (2)
(T90-0926-08) (T90-0925-08) RC-FO320E (-)

(A70-1727-08)

&

SYSTEM vs COLOR

SYSTEM RECEIVER SPEAKER COLOR
M-505USB-B RXD-MSOSUSB-B LS-M505-B BLACK
M-505USB-S RXD-MSOSUSB-S LS-M505-S SILVER

Cautions

Resetting the Microcomputer The marking of products using lasers
The microcomputer may malfunction (unit cannot be
operated, or shows an erroneous display) if the power
cord is unplugged while the power is ON, or due to
some other external factor. If this happens, execute the
following procedure to reset the microcomputer and
return the unit to its normal operating condition.

CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL A LASER DE CLASSE1

LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT

The marking this product has been classified as Class 1.
It means that there is no danger of hazardous radiation
outside the product.

Location: Bottom

When the power is on and TUNER input is
selected, press and hold down the (I stop)
button on the unit for more than 2 seconds.

Unplug the AC cord and plug it back in if lNlT.
OK" is appears.
- Please note that resetting the microcomputer will A

, chvAcr CD-R/RW
clear the contents of the memory and return the unit to ill] [E "237me RDS
the state it was in when it left the factory. v

nimmL Aunln

Page 18

RXD-MSOSUSB/LS-MSOS

EXPLODED VIEW (MECHANISM)

This figure is available on parts location.

But individual parts is not available for repair,

ass'y parts only

MVSOSUSB

18

Parts with the exploded numbers larger than 700 are not supplied.
