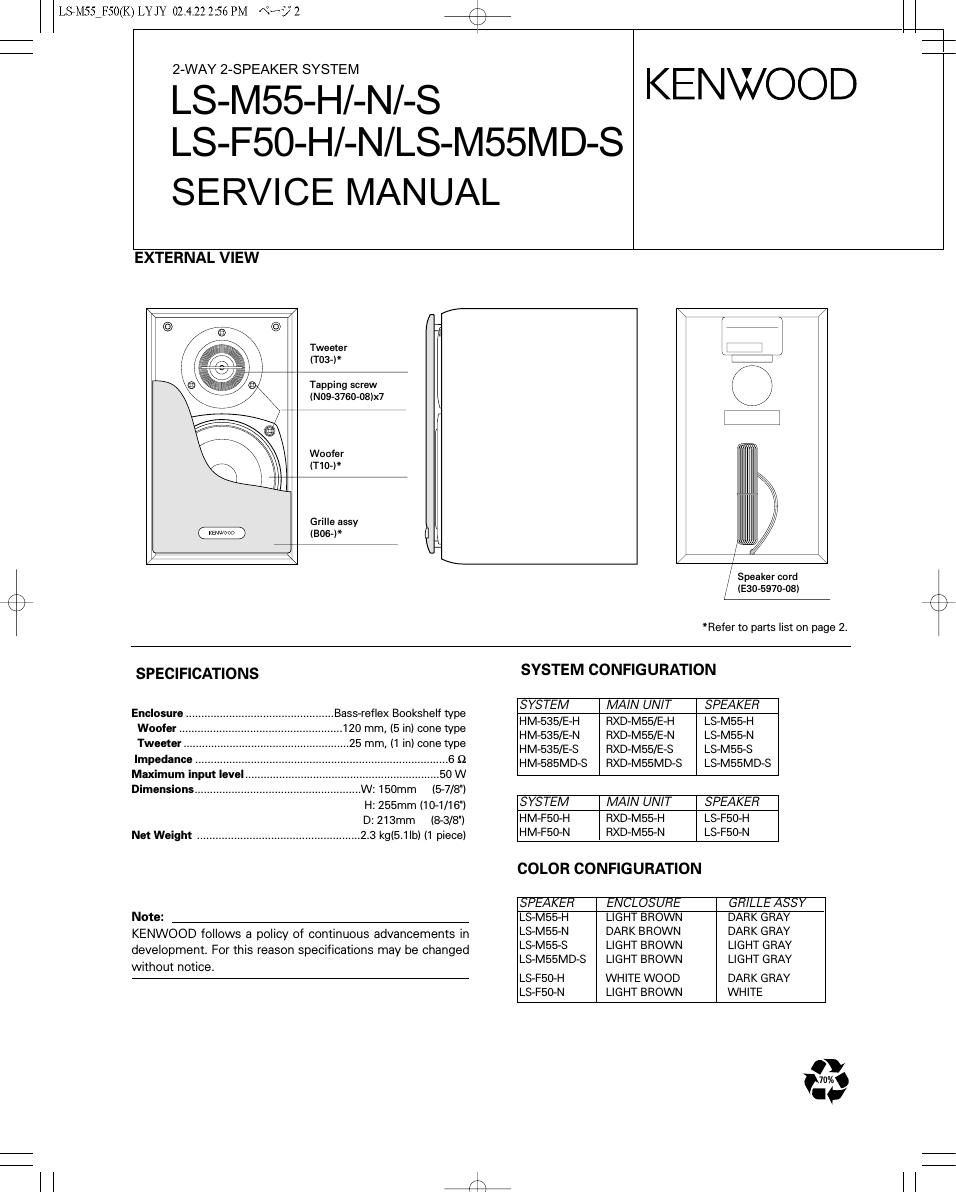

Kenwood LSF 50 Service Manual

Page 2

r\
\/

LSMSSiF50(K) LYJY 02.4.22 2:56 PM NRA) 1

LS-M55-H/-N/-S/F50-H/-N/M55MD-S

DIVIDING NETWORK UNIT

C1 YEL
* o
0.82 50
I1 SP2
'7. O
BLK
RED
I_
+
0
SP1
. O
o
BLK
PARTS LIST
* New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans Ie Parts No. ne 50m pas foumis.
TeiIe ohne Parts No. werden nicht geIiefert.
New . . Desti- Re-
Ref. No. Address Pans Parts No. Descrlptmn nation marks
LS-F50-HI-N
- * BOB-162808 GRILLE ASSY (FED-H)
- * BOB-163108 GRILLE ASSY (FED-NJ
CI * CBC-576605 NP-ELEC 0.82UF 50WV
- * E30-5970-08 SPEAKER CORD
- * HTO-83I 1-08 POLYSTYRENE FOAMED FIXTURE
- * HTO-8312-08 POLYSTYRENE FOAMED FIXTURE
- * H21-I364-08 PROTECTION SHEET
- * H51-IS46-08 ITEM CARTON CASE (F50-HI
- * H51-IS47-08 ITEM CARTON CASE (F50-NI
- N09-3760-08 TAPPING SCREW
SP1 * T10»1180-O5 WOOFER (FBO-H)
SP1 * TIO-1181-O5 WOOFER (FBO-N)
SP2 * T03-0850-05 TWEETER (F50-H)
SP2 * T03-0851-05 TWEETER (F50-N)
LS-M55-HI-NI-S/M55MD-S
- * BOB-162808 GRILLE ASSY (MES-H)
- * BOB-1629-08 GRILLE ASSY (MES-N)
- * BOB-1630-08 GRILLE ASSY (MES-SI
- * BOB-165308 GRILLE ASSY (M55MD-SI
CI * C90-5166-05 NP-ELEC 0.82UF BOWV
- * E30-5970-08 SPEAKER CORD
- * HTO-83H-08 POLYSTYRENE FOAMED FIXTURE
» * H10-8312-08 POLYSTYRENE FOAMED FIXTURE
» * H21-I364-08 PROTECTION SHEET EGM
» H25-2276-08 PROTECTION BAG KX
» * H51-1842-08 ITEM CARTON CASE (M55-H) EG
- * H51-1844-08 ITEM CARTON CASE (M55-N) EG
- * H51-1845-08 ITEM CARTON CASE (M55-S) EG
- * H51-1853-08 ITEM CARTON CASE (M55-H) M
- * H51-1854-08 ITEM CARTON CASE (M55-N) M
- * H51-1859-08 ITEM CARTON CASE (M55MD-S) E
- N09-3760-08 TAPPING SCREW
SP1 * T10»1180-05 WOOFER (M55-Hl-S/M55MD-S)
SP1 * T10-1181-05 WOOFER (M55»NI
SP2 * TO3-0850-05 TWEETER (M55-Hl-S/M55MD-S)
SP2 * T03-0851-05 TWEETER (M55-NI
L: Scandinavia K: USA P: Canada R: Mexico c: China I: MaIaysia
V: PXIFor East Hawaii) T: England E: Europe G: Germany V: ChinaIShanghai)
V: AAFES(Europe) X: AustraIia 0: Russia H: Korea M: Other Areas A indicates safety CrItiCaI components.
