Kenwood LS 9070 ML Service Manual
This is the 2 pages manual for Kenwood LS 9070 ML Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

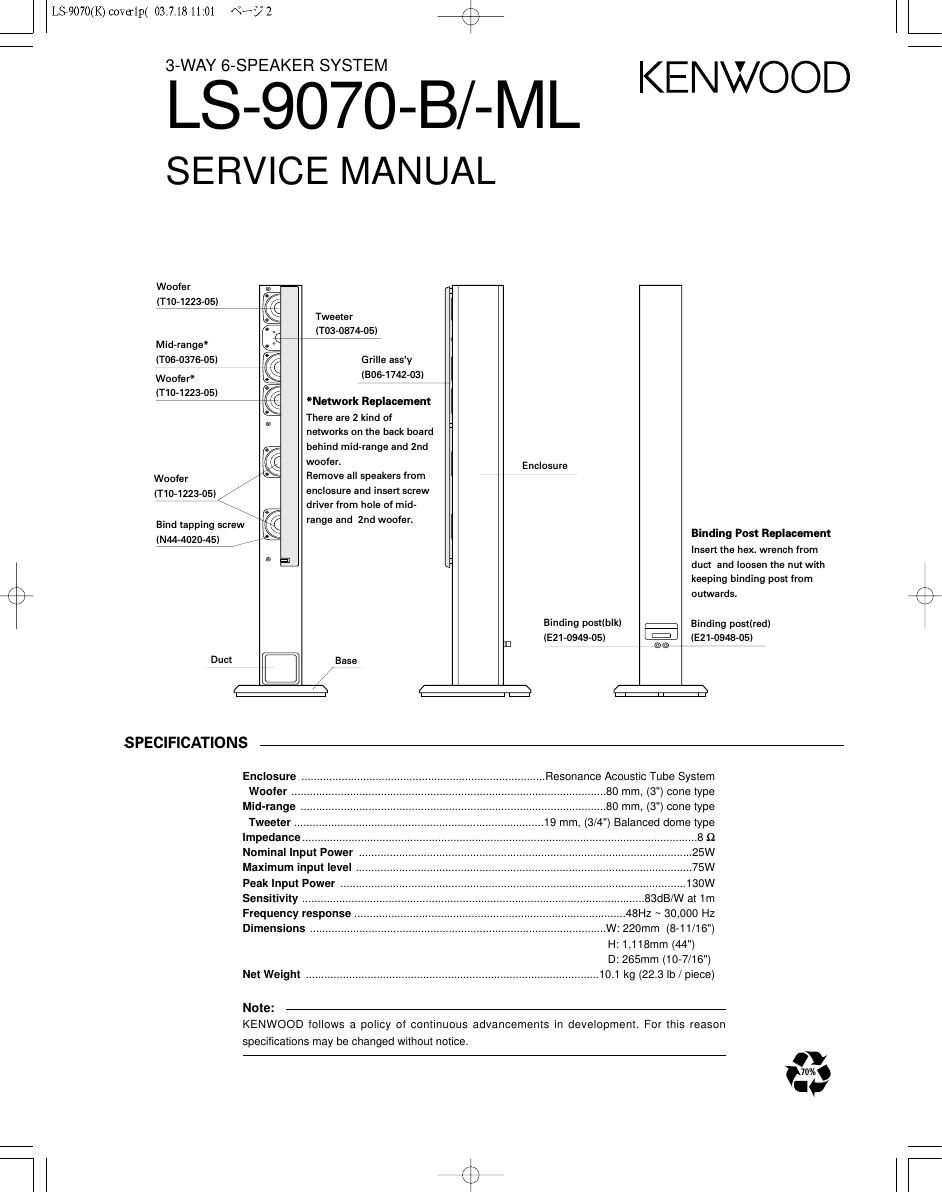

Extracted text from Kenwood LS 9070 ML Service Manual (Ocr-read)
Page 1
-* B06-1742-03 GRILLE ASSY - * B61-1190-00 INSTRUCTION MANUAL - * E21-0948-05 BINDING POST (RED) - * E21-0949-05 BINDING POST (BLK) - * E30-7025-05 SPEAKER CORD - * H10-8382-08 POLYSTYRENE FOAMED FIXTURE - * H10-8383-08 POLYSTYRENE FOAMED FIXTURE - * H10-8384-08 POILYSTYRENE FOAMED FIXTURE - * H21-1389-08 PROTECTION SHEET - H25-2572-08PROTECTION BAG - * H51-1966-08 ITEM CARTON CASE ML - * H51-1972-08 ITEM CARTON CASE B - * G13-3015-05 CUSHION - * N09-3812-08 SCREW (ACCESSORY) SP1 * T10-1223-05 WOOFER SP2 * T06-0376-05 MID-RANGE SP3 * T03-0874-05 TWEETER C1 C90-2250-05NP-ELEC 2.2UF 50WV C2 C90-2254-05NP-ELEC 4.7UF 50WV C3 C90-2251-05NP-ELEC 2.7UF 50WV L1 L38-0519-05COIL 0.56mH L2 L38-0375-05COIL 0.68mH L3 L38-0619-05COIL 2.2mH L4 L38-0448-05COIL 1.2mH LS-9070 DIVIDING NETWORK UNIT/PARTS LIST PARTS LIST Ref. No.Address NewParts Parts No. DescriptionDesti- nation Re- marks ∗ New Parts Parts without Parts No.are not supplied. Les articles non mentionnes dans le Parts No.ne sont pas fournis. Teile ohne Parts No. werden nicht geliefert. DIVIDING NETWORK UNIT(X21-8200-00) DIVIDING NETWORK UNIT LS-9070 (WHT TUBE) W1 SP3 W2 SP2 (WHT TUBE) W4 SP1 (RED TUBE) W5 SP1 (WHT TUBE) W6 W7 SP1 (GRN TUBE) SP1 (YEL TUBE) W3 0.56mH 2.2u50 C1 L1 L2 C2 4.7u50 0.68mH C3 2.7u50 2.2mH L3 BLK RED YEL BLK BLK BLU WHT BLU WHT BLU BLK BLU L4 1.2mH BLK GRN J1 (2/2) J1 (1/2)
