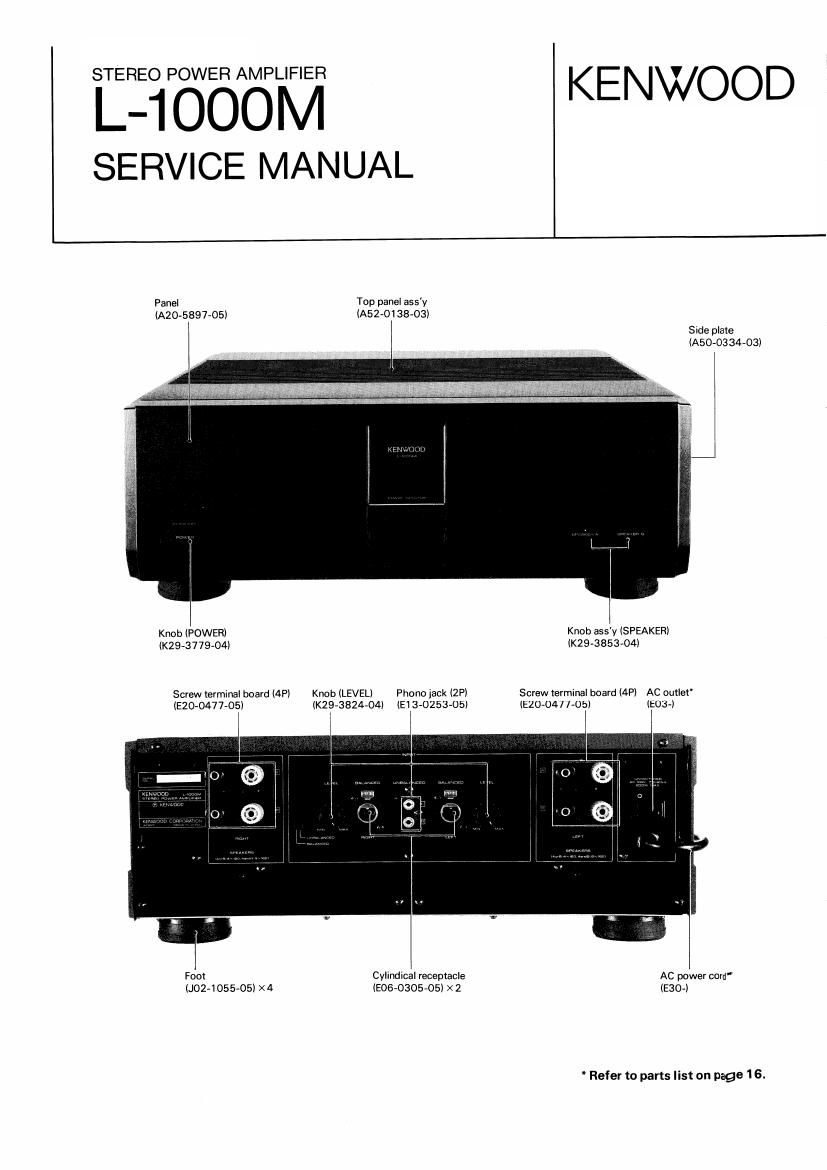

L-1dOOIVI KENWOOD
SERVICE MANUAL
Panel Top panel ass'y
(A20-5897-05) (A52-O138-03l
Side plate
(ABC-0334703)
Knob (POWER) Knob ass'y lSPEAKERJ
(K293779011) (K29-3853-O4)
Screw terminal board (4P) Knob (LEVEL) Phone jack (2P) Screw terminal board (AP) AC outlet
(E20-0477-05) (K29-3824»04| (E130253-05) (E20-0477-05) (833-)
Foot Cylnndical receptacle AC power cord"
(J02e1055-05)><4 (E0670305-05) X2 lESO-l
Refer to parts list on page 1 6.
Page 2
L_1OOOM DISASSEMBLY FOR REPAIR
1. Detachlng Method of Case and Front Panel:
1. Detach 8 pieces of screws (0) of the panels on
the both sides.
2. Detach 2 pieces of screws (9) of the upper
surface cover.
3. Detach 7 pieces of screws (6) of the control
panel.
2. Detaching Method of X13 B/5, C/5, 0/5 and E5
(attached units):
. Detach 9 pieces of screws (0) of each unit.
. Detach 2 pieces of screws (6).
. Detach 8 pieces of screws (6) which are retaining
the chassis.
4. Detach 2 pieces of screws (0) of the cover.
5. Detach 4 pieces of screws (9) of the unit.
(.0!\)-\
3. Detaching Method of X09 (Audio Unit):
.Turning the main body upside down, detach 12
pieces of screws (9) of bottom plate.
(Note: Place the body upright to fit the bottom
plate.)
2. Detach 2 pieces of screws (®) which are retaining
radiating plate to the frame.
-A
