Kenwood L 1000 C Owners Manual

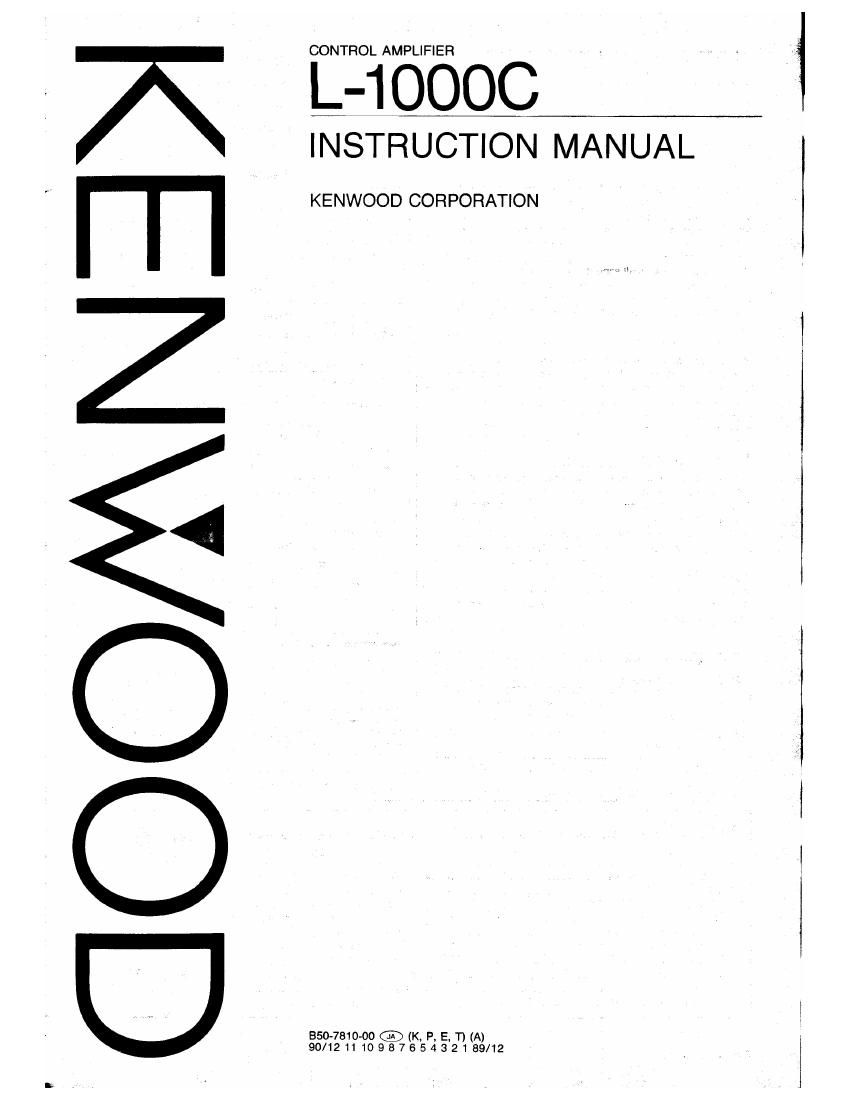

Page 1

l..A\NEI>I

CONTROL AMPLIFIER

' L-1 OOOC

INSTRUCTION MANUAL

KENWOOD CORPORATION

850 7810-00 ® (K. P. E. D (A)
11098765432189/12

Page 2

Introduction

Your choice of this product indicates that you are a
devotee to excellence in sound reproduction.

We apprecrate your patronage and take pride in the long
tradition of quality components. that our company
represents.

50 that you can get the most out of your unit. we suggest
that you take the time to read through this manual before
you hook up and operate your system. This will acquaint
you wuth operating features, and system-connection con-
siderations. so that your listening pleasure will be enhanced
right from the start.

You will notice that in all aspects of planning. engineering.
styling. operating convenience and adaptability. we have
sought to anticipate your needs and desires.

Keep this manual handy for future reference.

For your records

Record the serial number, found on the back of the unit.
in the spaces designated on the warranty card. and in the
space provided below. Refer to the model and serial
numbers whenever you call upon your dealer for informa-
tion or service on this product.

Model Serial Number

Unpacking

Unpack the unit carefully and make sure that all accesso-
ries are put aside so they will not be lost.

Examine the unit for any possibility of shipping damage.
lfyour unit is damaged orfailsto operate. notify your dealer
immediately. If your unit was shipped to you directly, notify
the shipping company without delay. Only the consignee
(the person or company receiving the unit) can file a claim
against the carrier for shipping damage.

We recommend that you retain the original carton and
packing materials for use should you transport or ship the
unit in the future.

for CANADA

DOC REGULATION

"THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS
B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL
APPARATUS AS SET OUT IN THE RADIO INTERFERENCE
REGULATIONS OF THE CANADIAN DEPARTMENT OF
COMMUNICATIONS."

Accessories

Audio cord . 1 Remote control unit

Batteries
("AA' or "R6 )

Hex wrench

2.

If a front panel knob
starts to become loose.
tighten it with this hex
wrench.

Contents

Introduction 2
ABefore applying power 3
ASafety precautions ...... 3
AIMPORTANT SAFEGUARDS 4
System connections 6
Controls and indicators 8
Using the remote control unit 9
Operating instructions 10

Basic operation 10

To listen to a radio broadcast 1 1

To listen to a record . 1 1

Caution: Read the pages marked A carefully to ensure safe operation.

To listen to a compact disc 11
To listen to a cassette tape played
on tape deck . 11

Recording 5 source . . 12
Listening to another source while
dubbing a tape .......................
Recording an FM broadcast while listening
to a compact disc . . 12

In case of difficulty . 13

Specifications

2 L-1000C IEnI
