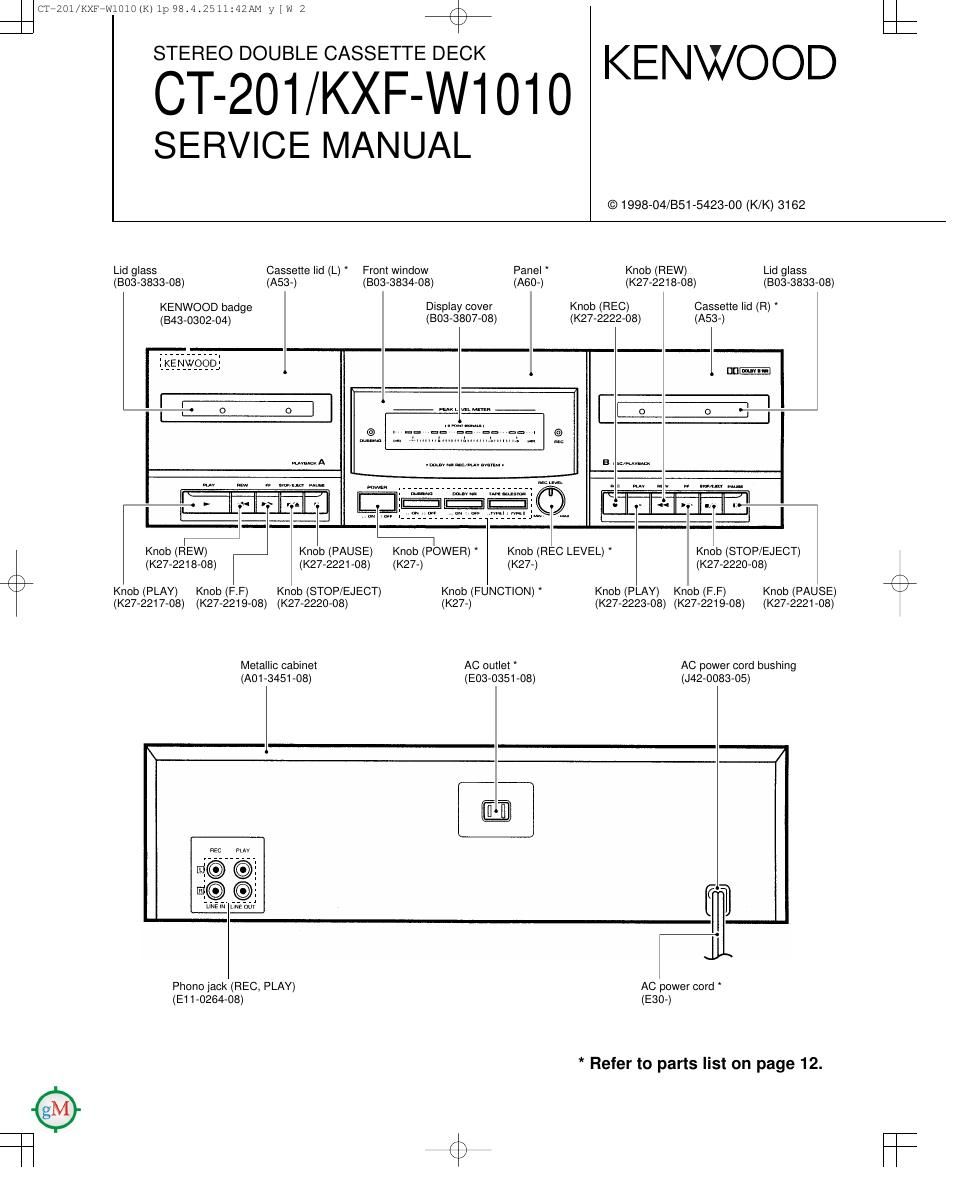

CT-201/KXF-W101O

CONTENTS/ACCESSORIES/CAUTION

Contents

CONTENTS/ACCESSORIES/CAUTION .2 EXPLODED VIEW

ADJUSTMENT .......................................... .3 PARTS LIST .........

PC BOARD ................... .5 PARTS DESCRIPTIONS

SCHEMATIC DIAGRAM .7 SPECIFICATIONS .......... Back cover

* Please refer to KX-W594/W1060 Service Manual (B51-4924-00) if you want to know disassembly and
mechanism operation.

Accessories
Audio cord .............................. 2 AC plug adaptor ....................... 1
(E30-0615-05) (E03-0115-05)

$5
(Except tor Europe and Australia)

For the unit with a European AC plug in
areas other than Europe

Caution
Beware of condensation Be especially caretul in the following conditions:
When water vapor comes into contact with the surface of cold When the unit is brought trom a cold place to a warm place,
material, water drops are produced. It condensation occurs, correct and there is a large temperature dilference.
operation may not be possible, or the unit may not function correct- When a heater starts operatlng. _ _ _
ly. This is not a mallunction, however, and the unit should be dried. When the mt '5 brought mm? aIr-condltloned place to a
(To do this , turn the POWER switch ON and leave the unit for sev- , place 0f hlghtemperawre W'th h'gh humldlty .
eral hours.) When there Is a large dIfference between the Internal tempera-

ture of the unit and the ambient temperature, or in conditions
where condensation occurs easily
