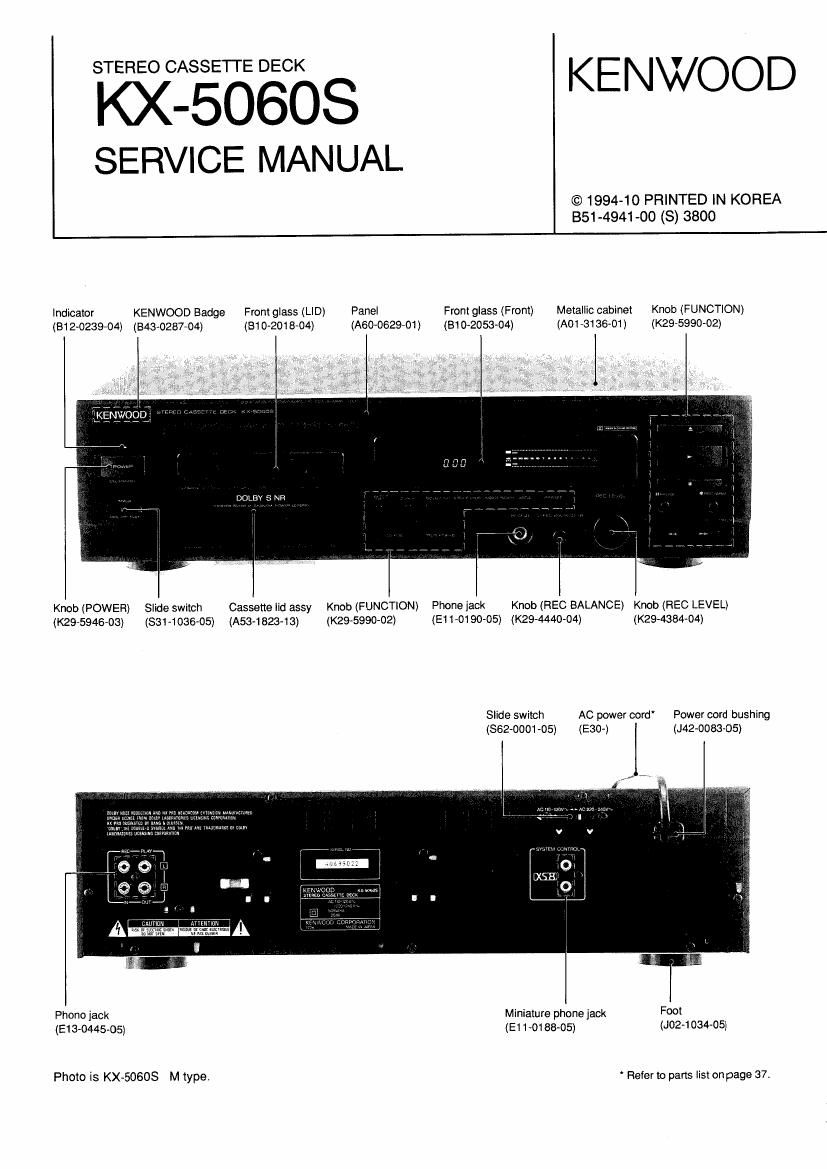

Kenwood KX 5060 S Service Manual

Page 2

KX-5OBOS

CONTENTS

ACCESSORIES ......................................................... 2
CONTROL .................
BLOCK DIAGRAM .....
CIRCUIT DESCRIPTION .....
MECHANISM DESCRIPTION.
ADJUSTMENT ............................
AJUSTES ................................................................. 19

WIRING DIAGRAM .................................................. 23
PC BOARD (Component side view)
SCHEMATIC DIAGRAM ......................
EXPLODED VIEW (MECHANISM UNIT)
EXPLODED VIEW (UNIT) ......
PARTS LIST ...........................
SPECIFICATIONS ................................ BACK COVER

ACCESSORIES

Audio cord ................... 2

(E30-0505-05)

System control cord ...... . 1

(E30-2733-05)

AC plug adaptor ............ 1
(Except for USA, Canada,
Europe, UK, and Australia)
Forthe unit With a European
AC plug in areas other than
Europe.

a,
$4"

(503-01 15-05)

Rowan of condensation

When water vapor comes into contact with the sur-
face ot cold material, water drops are produced.
If condensation occurs, correct operation may not be
possible, or the unit may not function correctly.
This is not a malfunction, however, and the unit should
be dried.
(To do this, turn the POWER switch ON and leave the
unit as it is for several hours.)

Be especially careful in the following conditions :
0 When the unit is brought from a cold place to a warm
place, and there is a large temperature uifference,

0 When a heater starts operating

0 When the unit is brought from an airconditioned
place to a place of high temperature with high hu-
mldity.

~ When there is a large difference betwee n the inter-
nal temperature of the unit and the ambient tem
perature, or in conditions where condensatiOn oc-
curs easilyt
