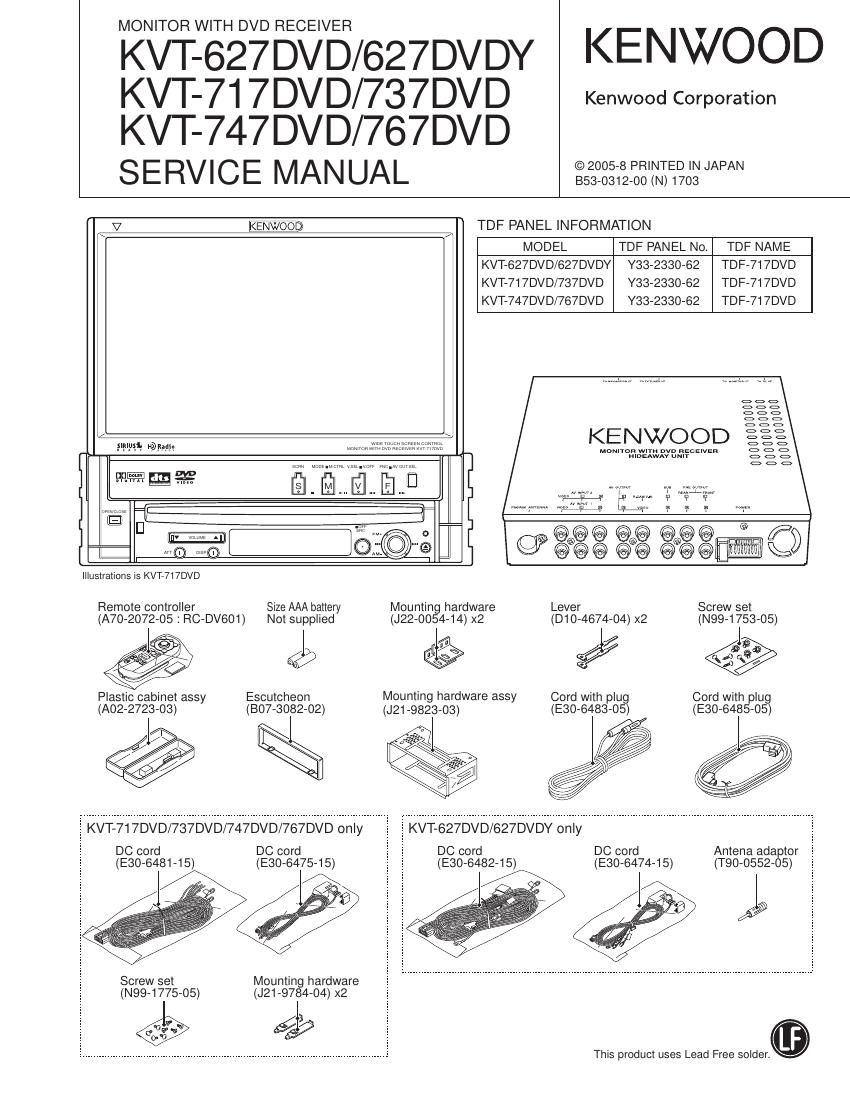

Kenwood KVT 747 DVD Service Manual

This is the 102 pages manual for Kenwood KVT 747 DVD Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 102
Kenwood KVT 747 DVD Service Manual

Extracted text from Kenwood KVT 747 DVD Service Manual (Ocr-read)

Page 2

KVT-627DVD/627DVDY/717DVD
KVT-737DVD/747DVD/767DVD

NOTES ON ASSEMBLING THE MECHANISM

1. Fasten Screw A so that the interval (a) will be about 5.2mm
and the interval (b) will be about 2.6mm (The interval (a)
can be measured using a pair of vernier calipers or similar
tools.)

2. Turn B so that Position (0) will come at about the center of
interval (d).

3. Then, play the test disc and fine tune A or B so that the jitter
value would be minimized.
