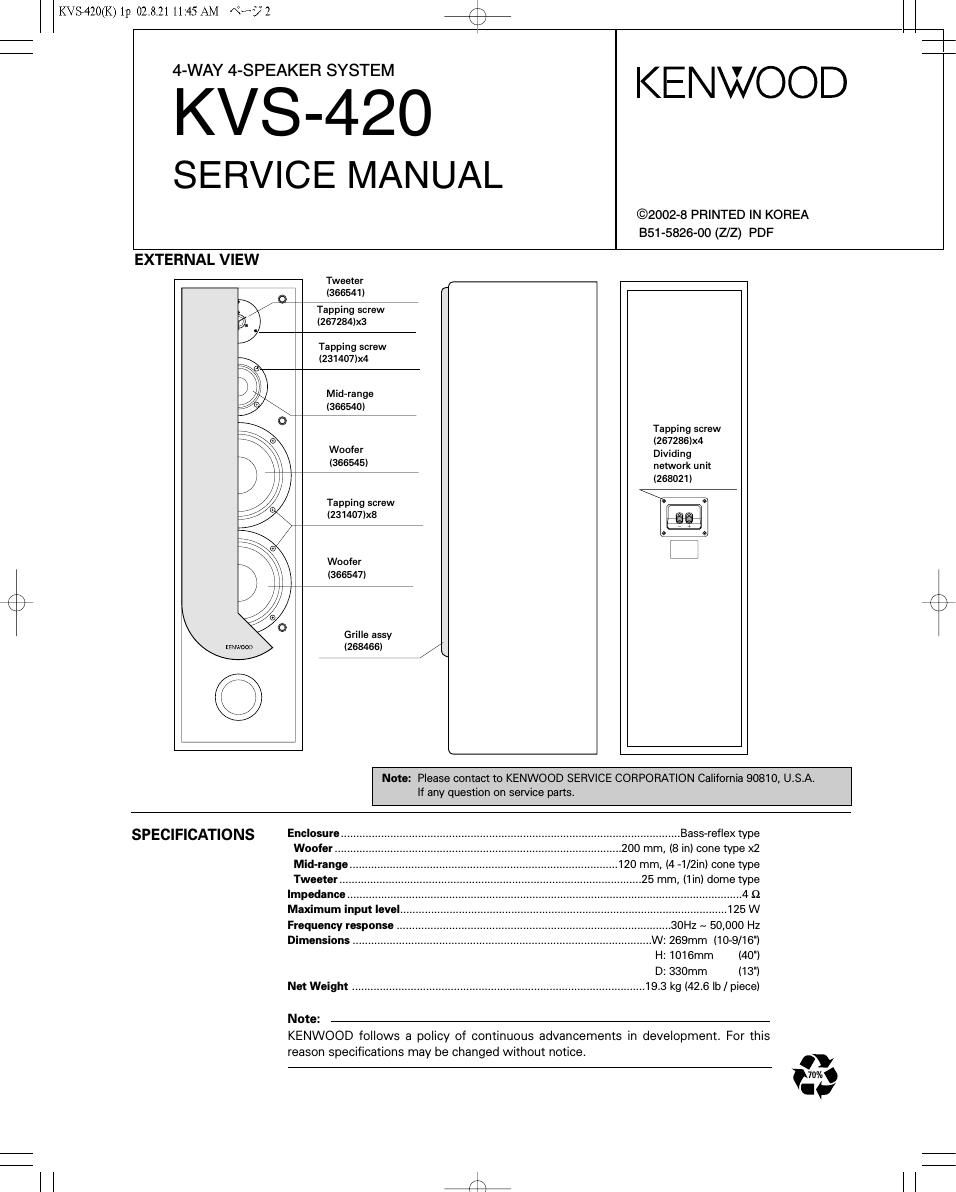

Page 1
r\
\J
KVS420(K)1p 02.8.21 11:45 AM \°~:/°2 /\
4-WAY 4-SPEAKER SYSTEM
KVS-420
SERVICE MANUAL
KENWOOD
©2002-8 PRINTED IN KOREA
351-5826-00 (Z/Z) PDF
EXTERNAL VIEW
Tweeter
(366541)
Tapping screw
I267284Ix3
Tapping screw
(231407Ix4
Mid-range
(366540)
Tapping screw
(267286)x4
Woofer Dividing
(366545) network unit
(268021)
Tapping screw
(231407lx8
Woofer
(366547)
Grille assy
(268466I
Note: Please contact to KENWOOD SERVICE CORPORATION California 90810, USA
If any question on service pans.
SPECIFICATIONS Enclosure .. ................ Bass-reflex type
Woofer.... .200 mm, (8 in) cone type X2
Mid-range 120 mm, (4 »1/2in) cone type
Tweeter.. 25 mm, (linl dome type
Impedance 9
Maximum input leve .125 W
Frequency response. 30Hz ~ 50,000 Hz
Dimensions ................................................................................................. W: 269mm HOB/16"!
H: 1016mm (40")
D: 330mm (13"I
Net Weight ............................................................................................... 19.3 kg 142.6 lb / piecel
Note:
KENWOOD follows a policy of continuous advancements in development. For this
reason specifications may be changed without notice.
Page 2
KVS420(K)1p 02.821 11:45 AM \°~/1 /\
KVS-420
DIVIDING NETWORK UNIT/PARTS LIST
DIVIDING NETWORK UNIT
(268021)
<< : #205 FASTON
<< ; #.no FASTON
PARTS LIST
* New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans Ie Parts No. ne sont pas fournis.
Teile ohne Parts Na werden nicht geliefert.
r\
\/
Ref. No. Address Iglew Parts No. Description Desti- Re-
ans natlon marks
KVS-420
- * 268466 GRILLE ASSY
- * 268633 INSTRUCTION MANUAL
- * 268634 WARRANTY CARD
- * 231705 PROTECTION BAG
- * 265329 POLYSTYRENE FOAMED FIXTURE
- * 268647 ITEM CARTON CASE
- * 231407 TAPPING SCREW
- * 267284 TAPPING SCREW
- * 267286 TAPPING SCREW
SP1 * 366547 WOOFER
SP2 * 366545 WOOFER
SP3 * 366540 MID-RANGE
SP4 * 366541 TWEETER
- * 268021 DIVIDING NETWORK UNIT
L: Scandinavia K: USA P: Canada R: Mexico C: China I: Malaysia
V: PXlFor East Hawaiil T: England E: Europe G: Germany V: ChinalShanghai)
V: AAFESlEuropel X: Australia 0: Russia H: Korea M: Other Areas
A indicates safety critical components.
Note: Please contact to KENWOOD SERVICE CORPORATION
California 90810, USA
If any question on sen/ice parts.
