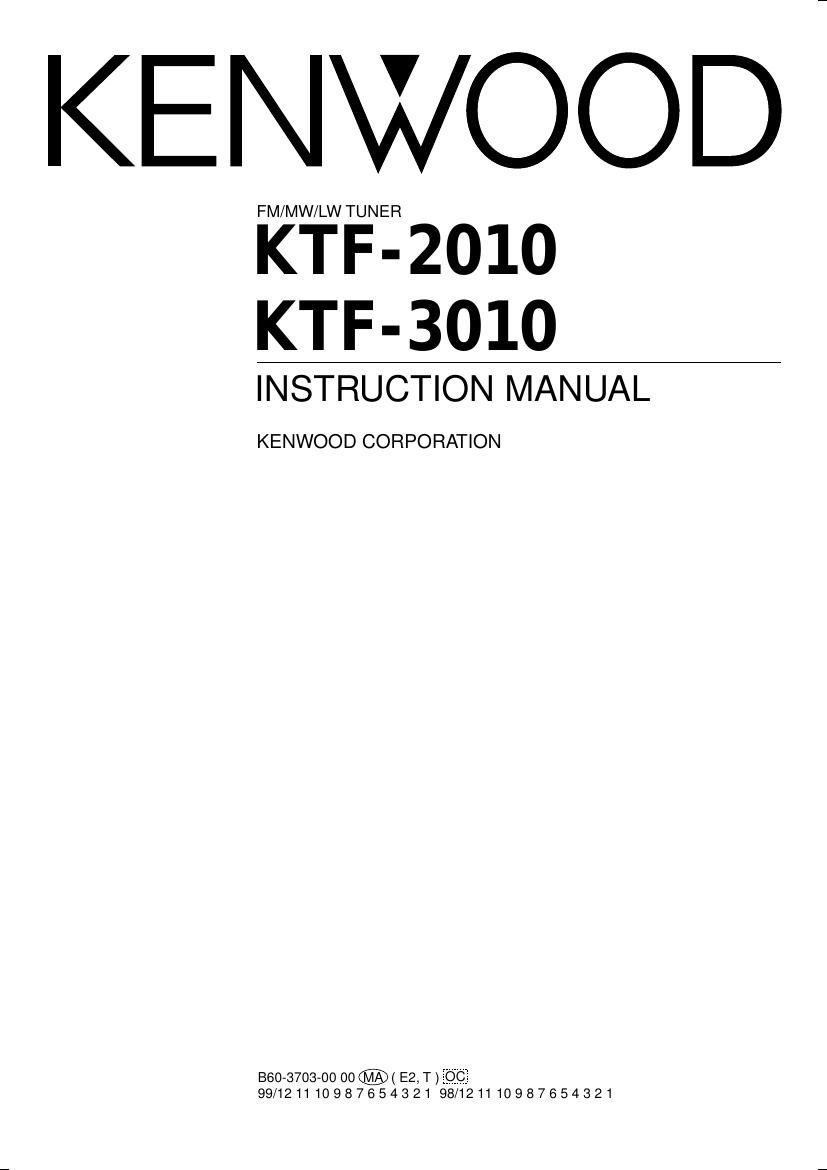

Kenwood KTF 3010 Owners Manual
This is the 20 pages manual for Kenwood KTF 3010 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KTF 3010 Owners Manual (Ocr-read)
Page 1
KTF-3010/KTF-2010 (En) 2 RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION Before applying power Units are designed for operation as follows. Europe , U.K. and Russia ......................................................... AC 230 V only For the United Kingdom Factory fitted moulded mains plug 1. The mains plug contains a fuse. For replacement, use only a 13-Amp ASTA-approved (BS 1362) fuse. 2. The fuse cover must be refitted when replacing the fuse in the moulded plug. 3. Do not cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adapter, or consult your dealer. If nonetheless the mains plug is cut off, remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. IMPORTANT The wires in the mains lead are coloured in accordance with the following code. Blue : Neutral Brown : Live Do not connect those leads to the earth terminal of a three-pin plug. WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSON- NEL. THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UN INSULATED ÒDANGEROUS VOLTAGEÓ WITHIN THE PRODUCTÕS ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS. THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPOR- TANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE. Unpack the unit carefully and make sure that all accessories are put aside so they will not be lost. Examine the unit for any possibility of shipping damage. If your unit is damaged or fails to operate, notify your dealer immediately. If your unit was shipped to you directly, notify the shipping company without delay. Only the consignee (the person or company receiving the unit) can file a claim against the carrier for shipping damage. We recommend that you retain the original carton and packing materials for use should you transport or ship the unit in the future. Accessories UnpackingSafety precautions Caution : Read this page carefully to ensure safe operation. FM indoor antenna (1) AM loop antenna (1) Loop antenna stand (1) Audio cord (1) System control cord (1)
Page 2
KTF-3010/KTF-2010 (En) 3 ACTIVE RECEPTION (A.R.) (KTF-3010 only) When the receiving frequency changes by a tuning operation or recalling a preset station, the tuner automatically switches the IF BAND, RF ATT and ANT A/B functions to obtain the optimum reception conditions for the signals being received. RDS (Radio Data System) & EON(Enhanced Other Network) reservation The RDS makes it possible to select stations according to their program types (PTY search) and to display the station names. Moreover, the RDS automatic memory function which stores up to 40 RDS stations automatically in the memory is featured. This function checks the RDS data when storing stations in the memory to avoid storing stations which are broadcasting the same program simultaneously. In addition, by using the EON function which administers the information of other stations, you can reserve the desired information such as traffic announcement, news and so on, even though these types of programs are not currently broadcast. While listening to a station which makes the EON indicator light, the tuner automatically selects the station which starts broadcasting the program of the desired information. When the program of the desired information ends, the tuner automatically returns to the previous program. If this tuner is connected to a KENWOOD amplifier with the system control cord, the amplifier automatically switches the input source to the tuner input when the program of the reserved information starts, even when you are listening to the input source other than the tuner. STATION PRESET This unit features a function which stores the broadcast station you are listening to with easy operations and allows you to store a name for the station. It is very convenient to register the desired stations. Also, you can recall the stations with easy operations. Contents Before applying power ................................................................................................................................................................. 2 Before applying power ....................................................................................................................... 2 Safety precautions ............................................................................................................................. 2 Special features ........................................................................................................................................ 3 System connection ................................................................................................................................................................. 4 Controls and indicators ................................................................................................................................................................. 6 Useful functions for broadcast reception ................................................................................................................................................................. 7 Broadcast reception ................................................................................................................................................................. 8 Receiving a broadcast station (other than RDS stations) .......................................................................... 8 RDS (Radio Data System) ................................................................................................................................................................. 9 Storing broadcast stations in memory ............................................................................................................................................................... 10 Receiving a preset station ............................................................................................................................................................... 11 Entering broadcast station names ............................................................................................................................................................... 12 PTY search ............................................................................................................................................................... 13 EON reservation ............................................................................................................................................................... 15 In case of difficulty ............................................................................................................................................................... 16 Specifications ............................................................................................................................................................... 17 Special features Caution : Read the pages marked carefully to ensure safe operation.
