Kenwood KTCHR 100 Service Manual
This is the 26 pages manual for Kenwood KTCHR 100 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Page: 1 / 26

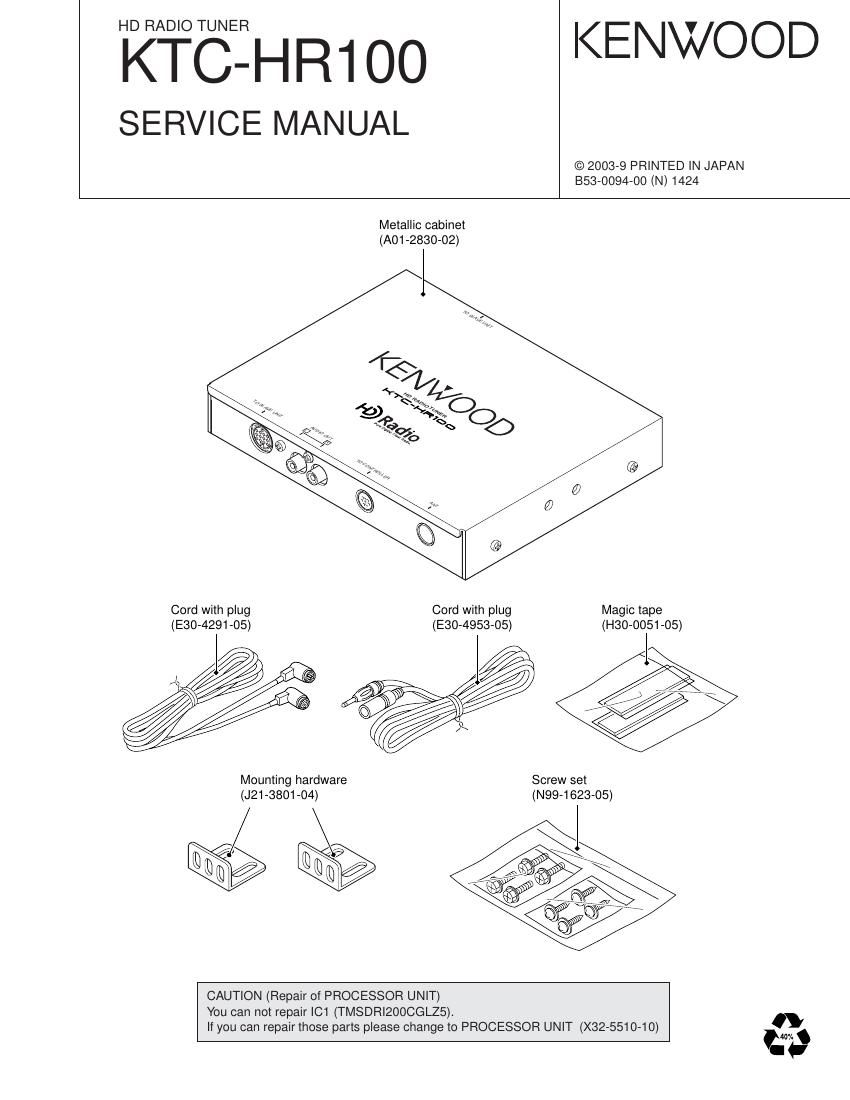

Extracted text from Kenwood KTCHR 100 Service Manual (Ocr-read)
Page 1
WEE-Hnioo KENWOOD
SERVICE MANUAL
© 2003-9 PRINTED IN JAPAN
853-0094-00 (N) 1424
Metallic cabinet
(A01-2830-02)
Cord with plug Cord with plug Magic tape
(E30-4291-05) (E30-4953-05) (H30-0051-05)
Mounting hardware Screw set
(J21 -3801 -04) (N99-1623-05)
the
CAUTION (Repair of PROCESSOR UNIT)
You can not repair IC1 (TMSDRIZOOCGLZS). "
if you can repair those parts please change to PROCESSOR UNIT (X32-5510-10)
