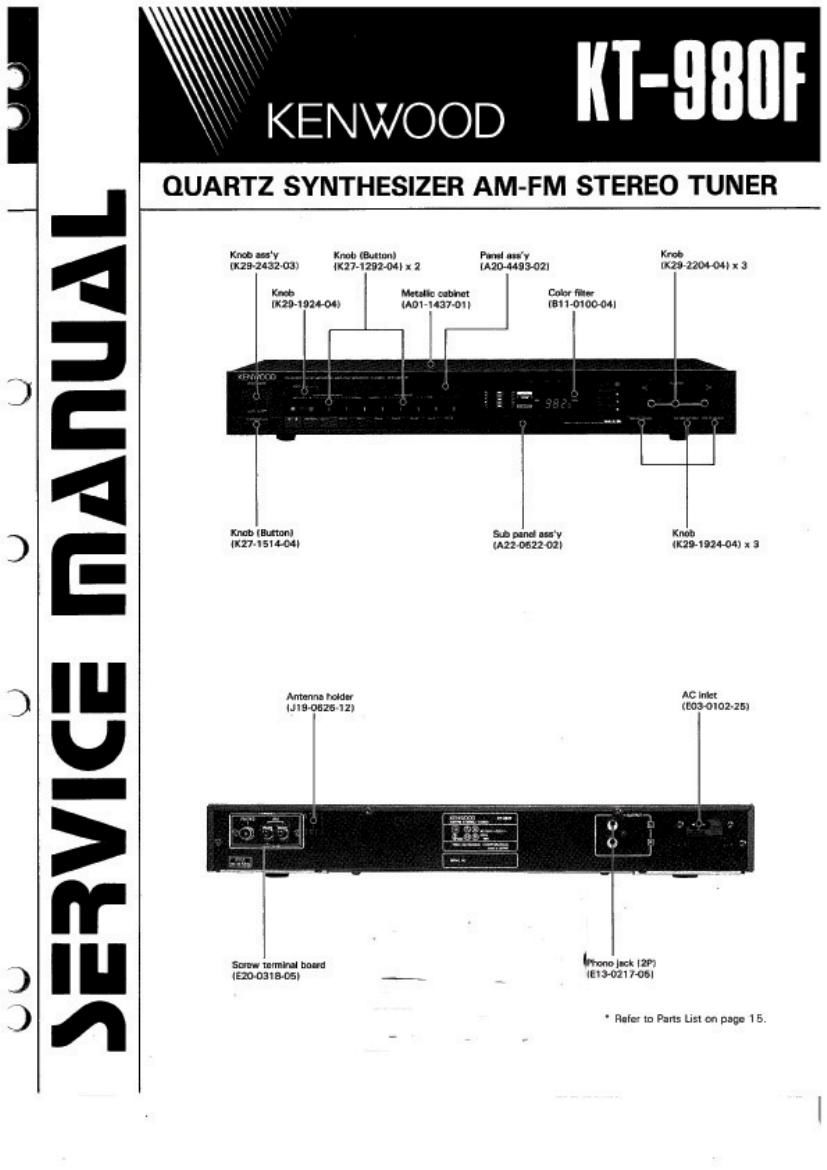

Kenwood KT 980 F Service Manual

Page 2

DISASSEMBLY FOR REPAIR

Removing Right Side Frame

For servicing the right part of the TUNER board, it is

necessary to remove the right side frame.

1. Remove the case and front panel.

2, While extending the holder claws on the left and right sides
of the UP/DOWN board 0, pull the PCB upwards to
remove.

. Remove four screws on the TUNER board. 9

4. Remove screw on the from right side of the sub-panel. 0

(A)

5. Remove screw on the left side of the rear panel and three
screws retaining the right side frame from the bottom

panel. a
6. Loosen two screws on the front side of the bottom panel.
0

7. Widen the spaces between the front and rear panels 0,
and remove the right side frame. 9

As there are
projections 0 .

the PCB cannot be
pulled up in the
above direction.

09
00

O

00

PLL DET

FM IF

EM RF
