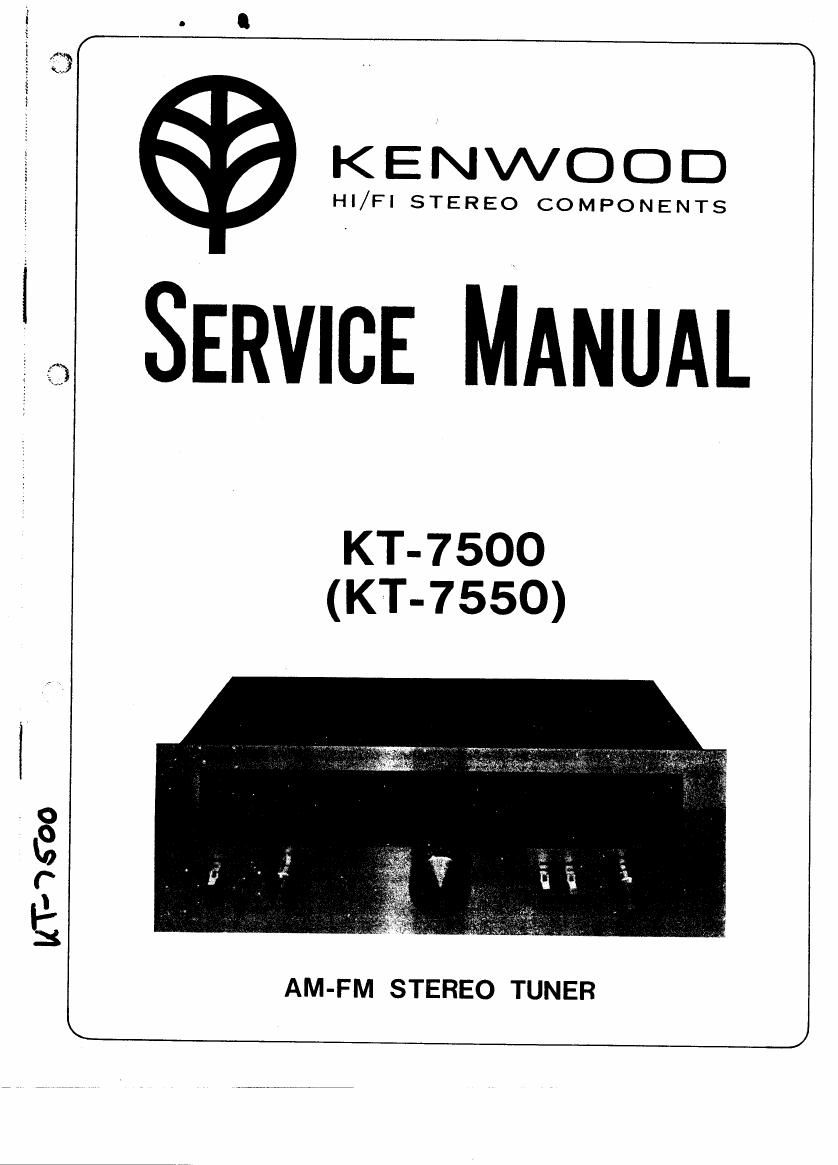

Kenwood KT 7550 Service Manual

Page 2

l 50!] -

TOP VIEW/ DIAL CORD STRINGING

Balun transformer
(L 1 9-0009-05)

Power .
transformer HF unit
(W02~0008-05)
Tuner unit
Pilot lamp
(BBQ-0123705)
Pilot lamp

Lighting acrvIe
resin board (BSD-010905)

(319-0197-03)

' Refer to Destinations'

DIAL CORD STRINGING um pun A. e Pans List.

(015-0155-13) ..... inside
(0154115643) ..... outside

1. Fully close the variable capacitor.
Assemble the dial pulley A with the pulley B and
fix them on the shaft of the variable capacitor using
2 screws.
3. Tie the end of the dial cord to the boss C as shown,
4. Dress the dial cord in the direction of "l" through
5" and wind it 3 turns around the dial shaft start
ing from its lower side. Variable
5. Dress the dial cord in the direction of 6" to "7" 9mm
and wind it 2 turns around the pulley B starting
from its lower side. Then, fix it to the boss D at
the rear side

6. Mount the dial pointerlas shown in the illustration, Sm... my

( D 1 5-0 1 60-04)

Dial man assy
. (Dzomzaoa)
Dial pointer
(321001604)
Small pulley .
(Dis-017004)

t)
