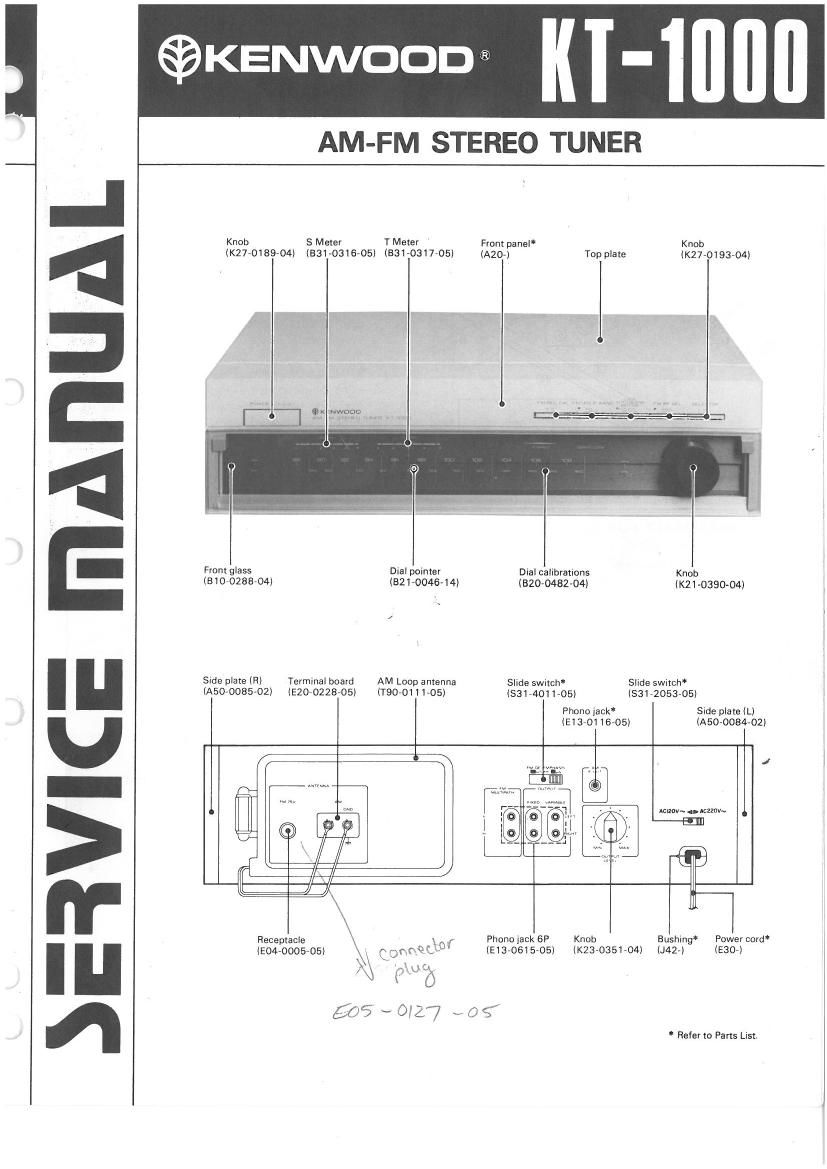

Kenwood KT 1000 Service Manual
This is the 17 pages manual for Kenwood KT 1000 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KT 1000 Service Manual (Ocr-read)
Page 2
DIAL CORD STRINGING
DIAL CORD STRINGING/DISASSEMBLY FOR REPAIR m
./
1. Tie the end of the dial cord to the spring. Dress the dial
cord in the direction ®through ®
2' Wind the dial cord 2 turns around the dial shalt starting
from its upper side, Dress the dial Cord In the direction
©through ®
3. Wind the dial cord 1 turn around the dial pulley starting
from its lower side. Fix the dial cord to the boss. (®©)
4. Receive a 90 MHz signal and then mount the dial
pornter at the 90 MHz position of the dial calibrations.
rllll llllII
DISASSEM BLY FOR REPAI R
1. Remove the dial cord and the panel,
2 Loosen the screws of the subpanel.
3. Turn the subpanel as illustrated.
4. Now you can remove the parts
Carefully separate the meters from the subpanel. . it 9
INDICATOR
S METER
SUBPANEL
DIAL BACK PLATE
