KRFEV7070D(K)i|1t1p 03.3.5 6:21 PM NE? 2

Accessofies

4%

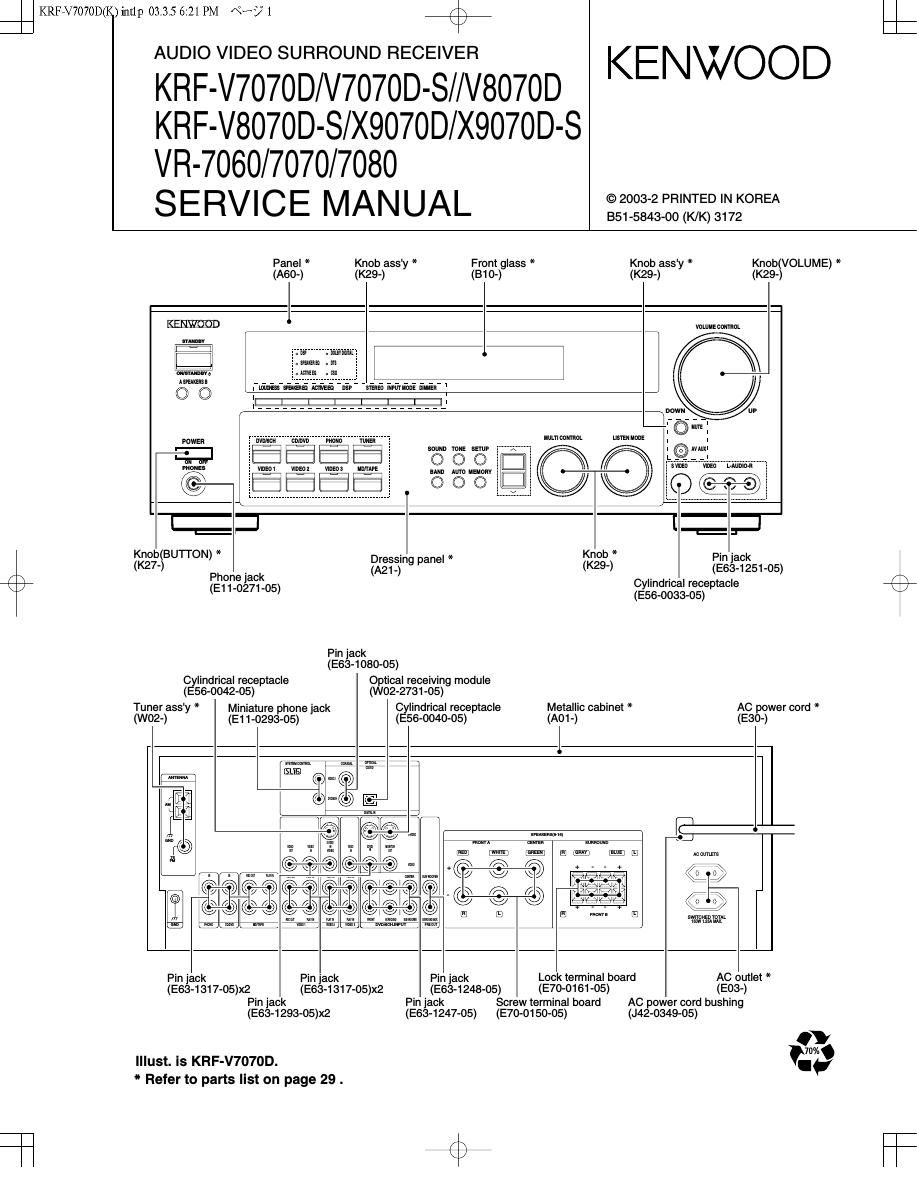

KRF-V7070D/V8070D/X9070D/VR-7060/7070/7080

ACCESSORIES / CAUTIONS

FM indoor antenna (1)
(T90-0877-05)

AM loop antenna (1)
(Tee-oess-os)

RF remote antenna (1)
Refer to the table on this page below.
/I:n?o;'o'a\a.:,uonoaa

o a. a a
30 oI> duo L, was onaaa
\Fofl flu/nag

Batteries (RB/AA) (2)

onooo

There is a different shape of remote control in every area.

REMOTE CONTROL vs MODEL

MODEL ABBRL PARTS # BATTERY COVER
KRF-V707OD E7 7 A70-1623-05 A09-1274-O8
KRF-V707OD-S E1 A70-1623-05 A09-1274-08
vn-7oso K6 A70-1622-05 A09-1274»08
vn-7oso P6 A70-1622-05 A09-1274-08
KRF-V8070D E8 8 A70-1623-05 A09-1274-08
KRF-V807OD-S E2 A70-1623-05 A09-1274-08
KRF-X9070D Y1 A70-1619-05 A09-1275-08
KRF-X9070D E9 A70-1621-05 A09-1274-O8
KRF-X907OD-S E3 A70-1621-05 A09-1274-O8
vn-7o7o K7 9 A70-1620-05 A09-1274-08
vn-7o7o P7 A70-1620-05 A09-1274-08
vn-7oao K8 A70-1619-05 A09-1275-08
vn-7oao P8 A70-1619-05 A09-1275-08
Caufions

Resetting the [Microcomputer

The microcomputer may malfunction (unit cannot be operated, or
shows an erroneous display) ifthe power cord is unplugged while
the power is ON, or due to some other external factor. If this
happens, execute the following procedure to reset the
microcomputer and return the unit to its normal operating
condition.

I Please note that resetting the microcomputerwill clearthe contents
ofthe memory and returns the unit to the state it was in when it left
the factory.

Unplug the power cord from the wall outlet, then plug it
back in while holding down the POWER ON/STANDBYL)
key.

Memo/y back up function

Please note that the following items will be deleted from the units
memory if the power cord is disconnected from the AC outlet for
approximately 1 day.

I Power mode.
I Input selector settings.
I Picture output.

I Bass peak level.

I Input mode setting.

I Midnight mode setting.
I Speaker ONIOFF. I PRO LOGICII mode setting.
I Volume level. I CS || mode setting.

I BASS, TREBLE, INPUT level. I Broadcast band.

I TONE ONIOFF. I Frequency setting.

I LOUDNESS ONIOFF. I Preset stations.

I Dimmer level. I Tuning mode.

I MD/TAPE settings. I THX mode.

I Listen mode setting. I DSP mode.

I Speaker settings. I ACTIVE EQ mode.

I SW RE-MIX ONIOFF. I SPEAKER EQ mode.

I Distance setting.
